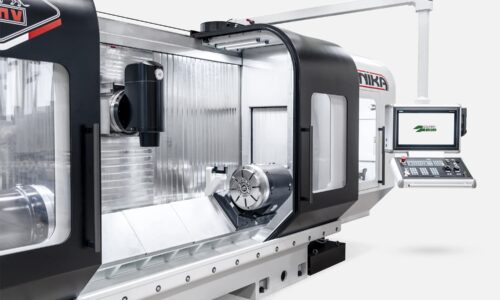

U.K manufacturers operating in high-performance sectors such as aerospace, energy, and turbomachinery can now access cutting-edge blade machining technology with the introduction of the Gruppo Parpas UNIKA BLADE.
The UNIKA BLADE is built around an advanced box-in-box structural design and features linear motors on all axes, providing exceptional stiffness, minimal thermal distortion, and precise geometric stability. This architecture ensures high dynamic responsiveness, even under demanding 5-axis simultaneous machining operations of challenging materials such as titanium alloys, Inconel, and stainless steels.
Machine Performance and Capabilities:
- Rapid feed rates up to 60 m/min
- High-performance electro-spindles up to 30,000 rpm for precision cutting and finishing
- Direct-drive rotary tables with 360° continuous rotation and high torque for complex blade contours
- Volumetric accuracy maintained within ±10 µm across the entire working envelope
- Full 5-axis simultaneous machining for intricate aerodynamic profiles and multi-curvature surfaces
The UNIKA BLADE is optimised for complete machining workflows, from high-speed roughing of titanium blanks to ultra-precise finishing of aerodynamic surfaces. Its volumetric accuracy and rigidity significantly reduce blade deformation and machining variability, ensuring consistent repeatability and surface quality across production runs.
Key Specifications:
- 5-axis high-speed machining centre
- Box-in-box structural design with linear motors on all axes
- Rapid feed rates: 60 m/min; acceleration: 2 g
- Spindle speed: up to 30,000 rpm; power: up to 25 kW
- Direct-drive rotary tables with continuous rotation and high torque
- Volumetric accuracy: ±10 µm
- Suitable for titanium, Inconel, stainless steel, and other high-performance alloys
- Optimised for complex blade geometries and aerodynamic profiles
As the U.K agent for Gruppo Parpas, Leader CNC Technologies provides manufacturers with this advanced machining solution to enhance capability, improve precision, and remain competitive in high-demand global markets.
For further infomation on the UNIKA BLADE, please contact Leader CNC Technologies.
