Key Details
Brand:
FAT Haco
Product:
FCT
Machine Type:
Lathe, Heavy Duty Lathe, Flat-Bed Lathe
Specification
Distance between centres
1,100 mm > 5,100 mm
Swing over bed
700 mm
Swing over saddle
490 mm
Max. Weight between centers (without steadies)
2,500 kg
X-axis rapid travel
20 m/min
Z-axis rapid travel
20 m/min
Product Video

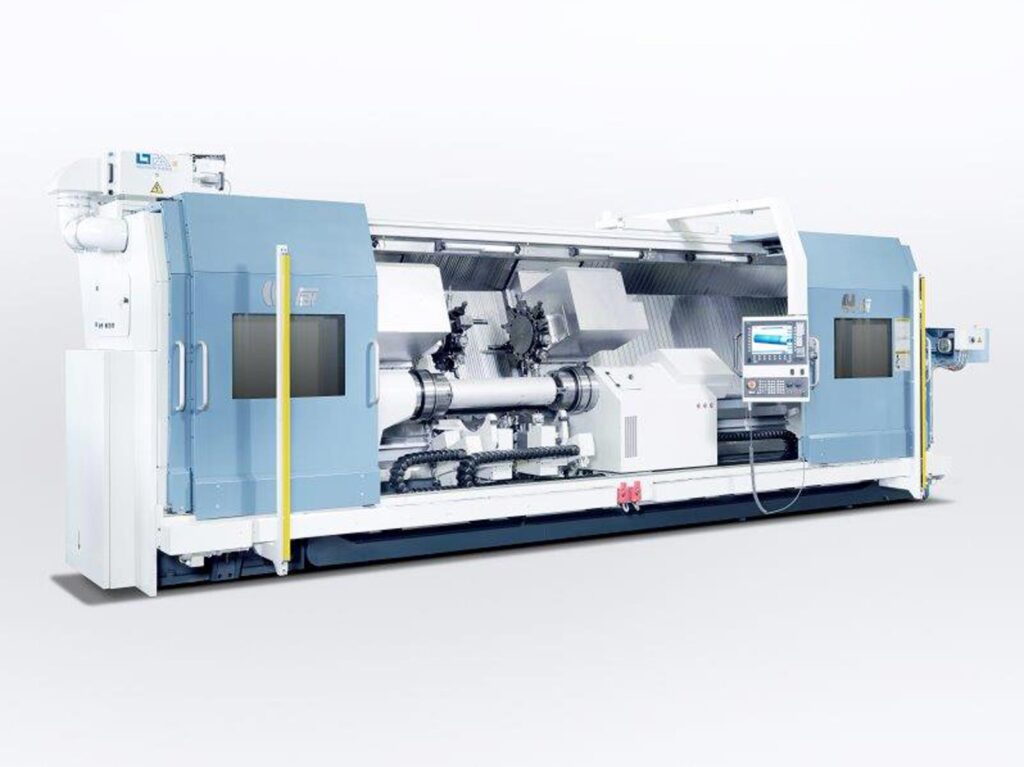

Slant Bed Lathe Offering Pure Accuracy
The FCT is a multi function lathe which offers U.K. manufactures the highest level of machining with pure accuracy and constructed from high quality and high-tech components.
The FCT, similar in construction to the established FTM range, is based on a slant bed design incorporating a double angle structure – 60º on the bed and 70º on the column. This design ensures optimum swarf removal, easy setting and operation, together with the best distribution of cutting forces.
There are various advantages for manufacturers to have this versatile and quality slant bed lathe within their premises. One of these advantages is the design of the machine with a small footprint but a superior working envelope.
Additional Information
Having a high number of machining features is of great benefit with this lathe. The FCT can be equipped with a C-axis and driven tools, tool measuring systems, hydraulic steady rest, Y-axis, milling head B-axis.
Other benefits are the various options available, depending on the manufacturer’s requirements; for example, the heavy duty-spindle, with a standard bore of 105 mm, can be increased to 140 mm or 220mm. The machine is equipped with a Siemens 840 C SL with Shop Turn application for turning and milling or Fanuc with Manual Guide i. Due to a sturdy cast-iron machine bed with preloaded anti-friction linear guide ways the lathe has excellent anti-vibration characteristics
Download the FCT brochure for further details or contact our technical team.
Service & Support from Leader CNC
Your one-stop source for engineering solutions
Related Products
-
Pre-Order
FAT Haco

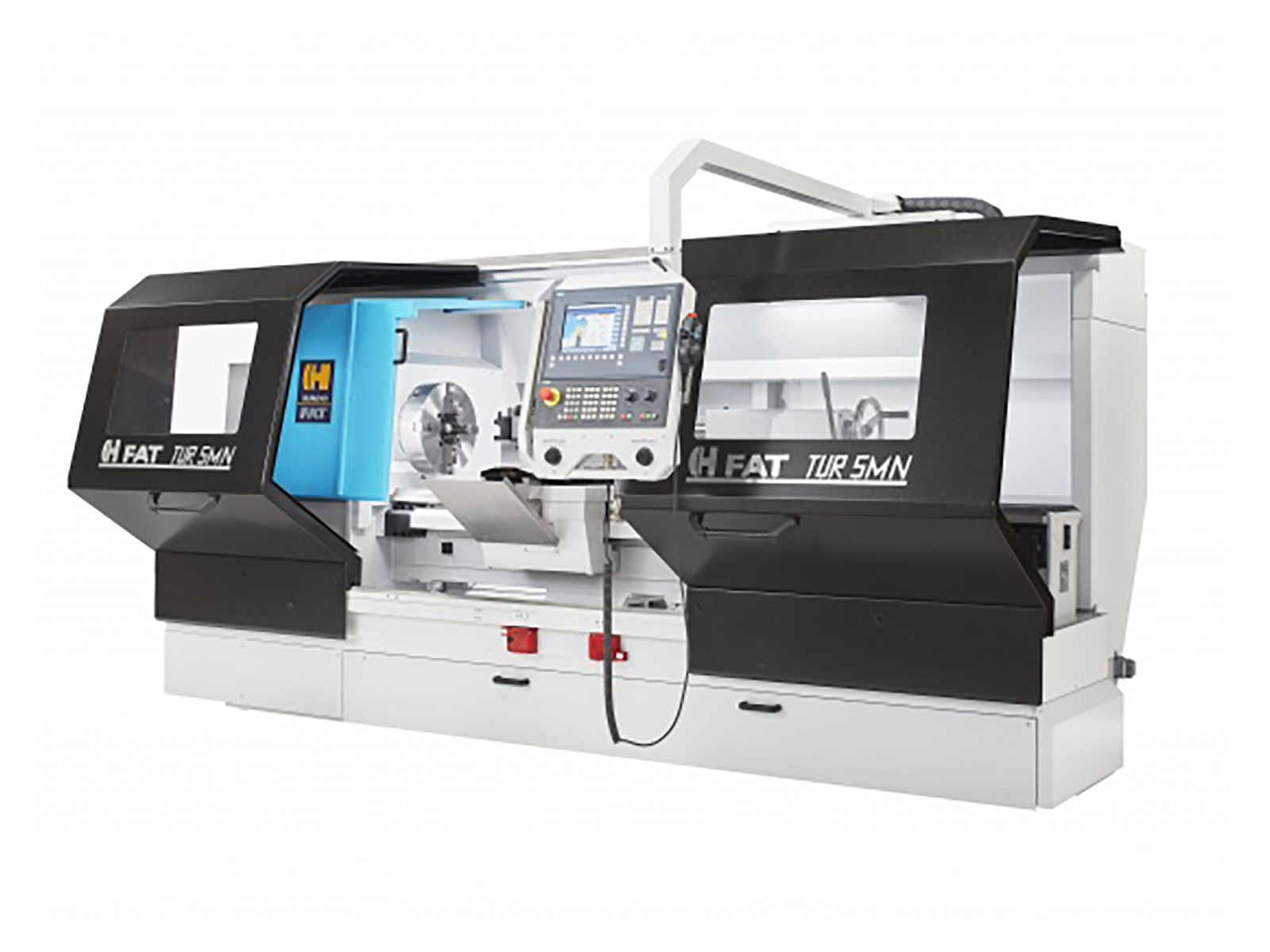

TUR 2MN
-
Pre-Order
FAT Haco

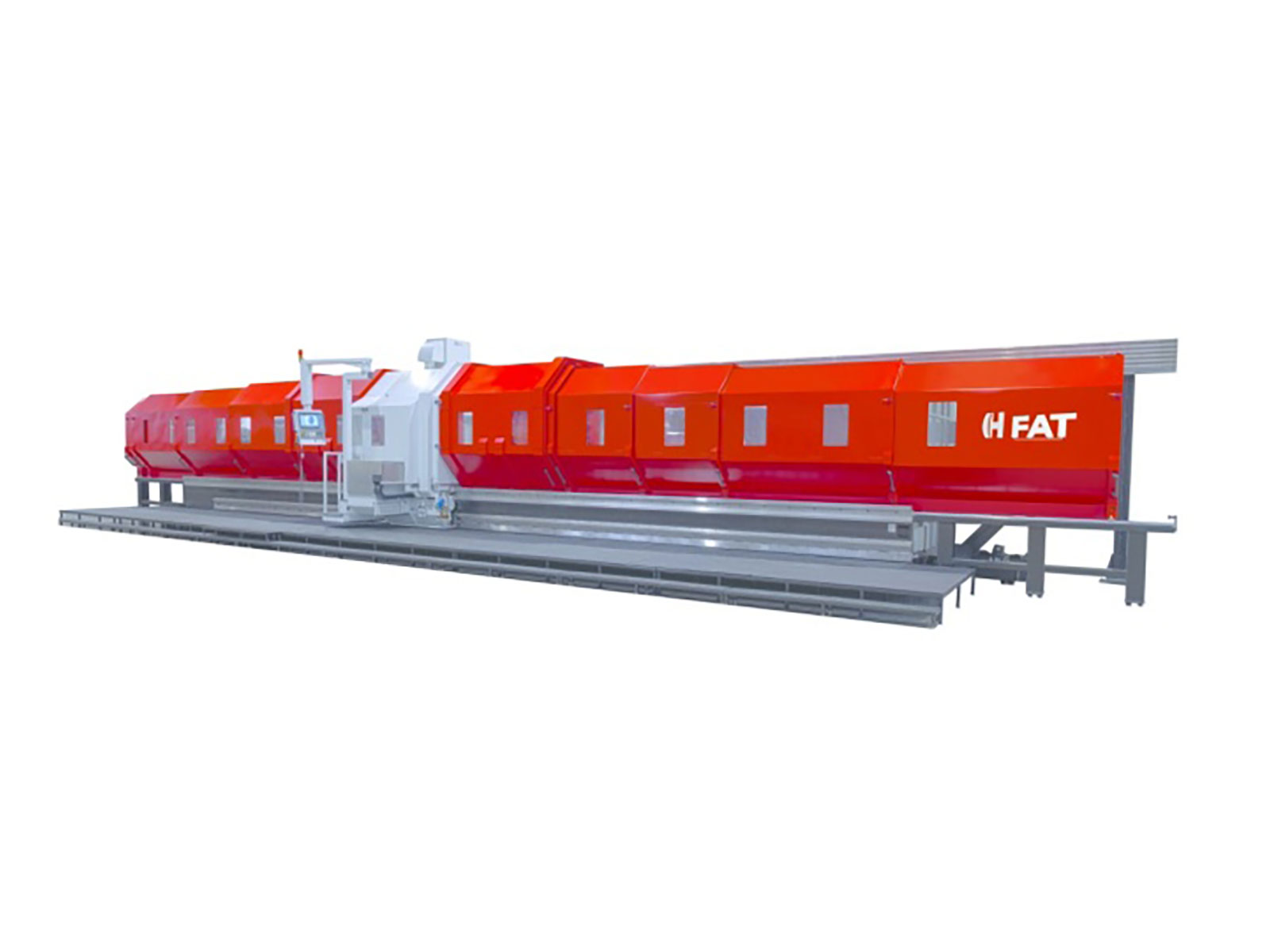

TUR 3MN
-
Pre-Order
FAT Haco

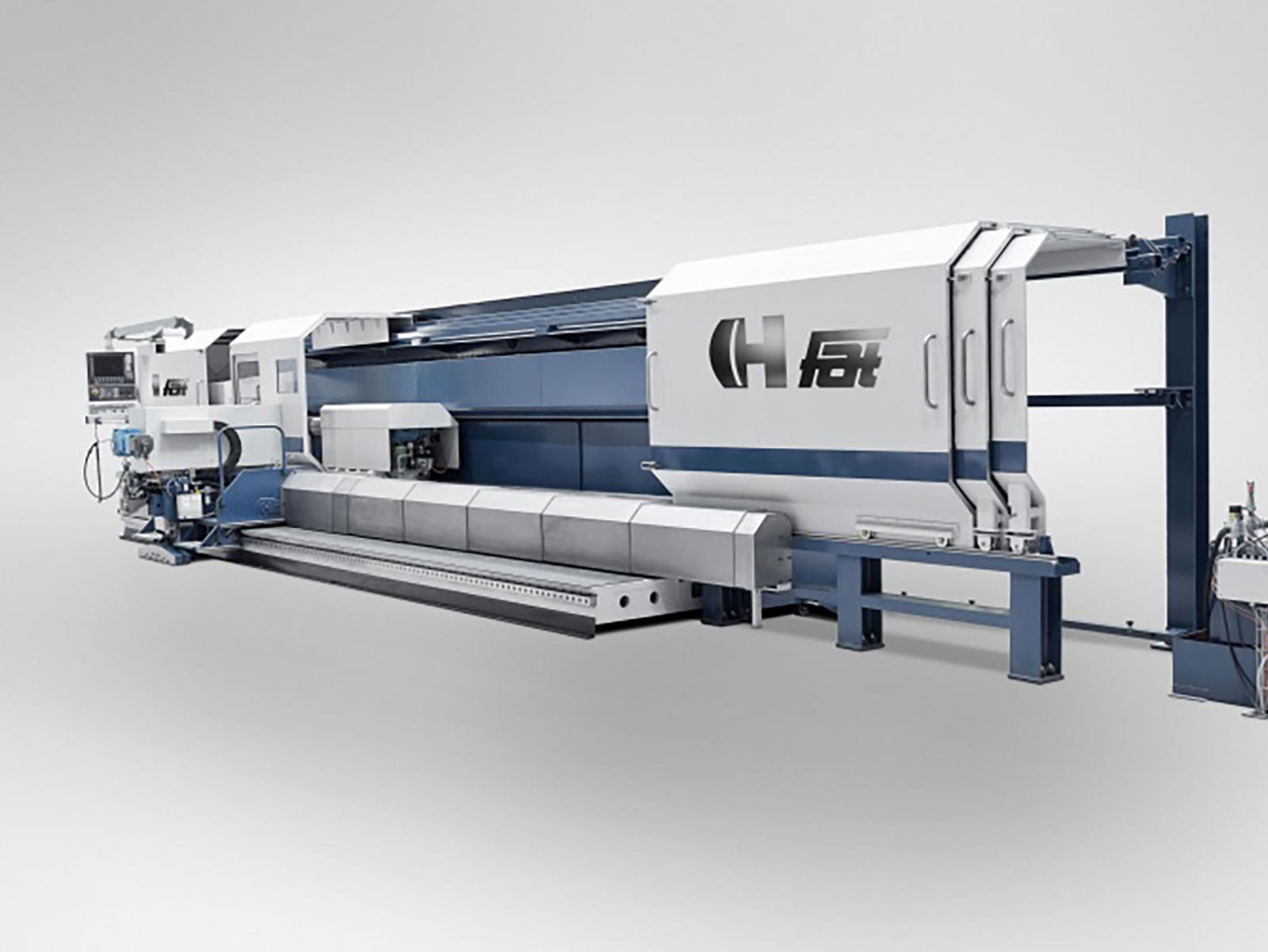

TUR 4MN
-
Pre-Order
FAT Haco

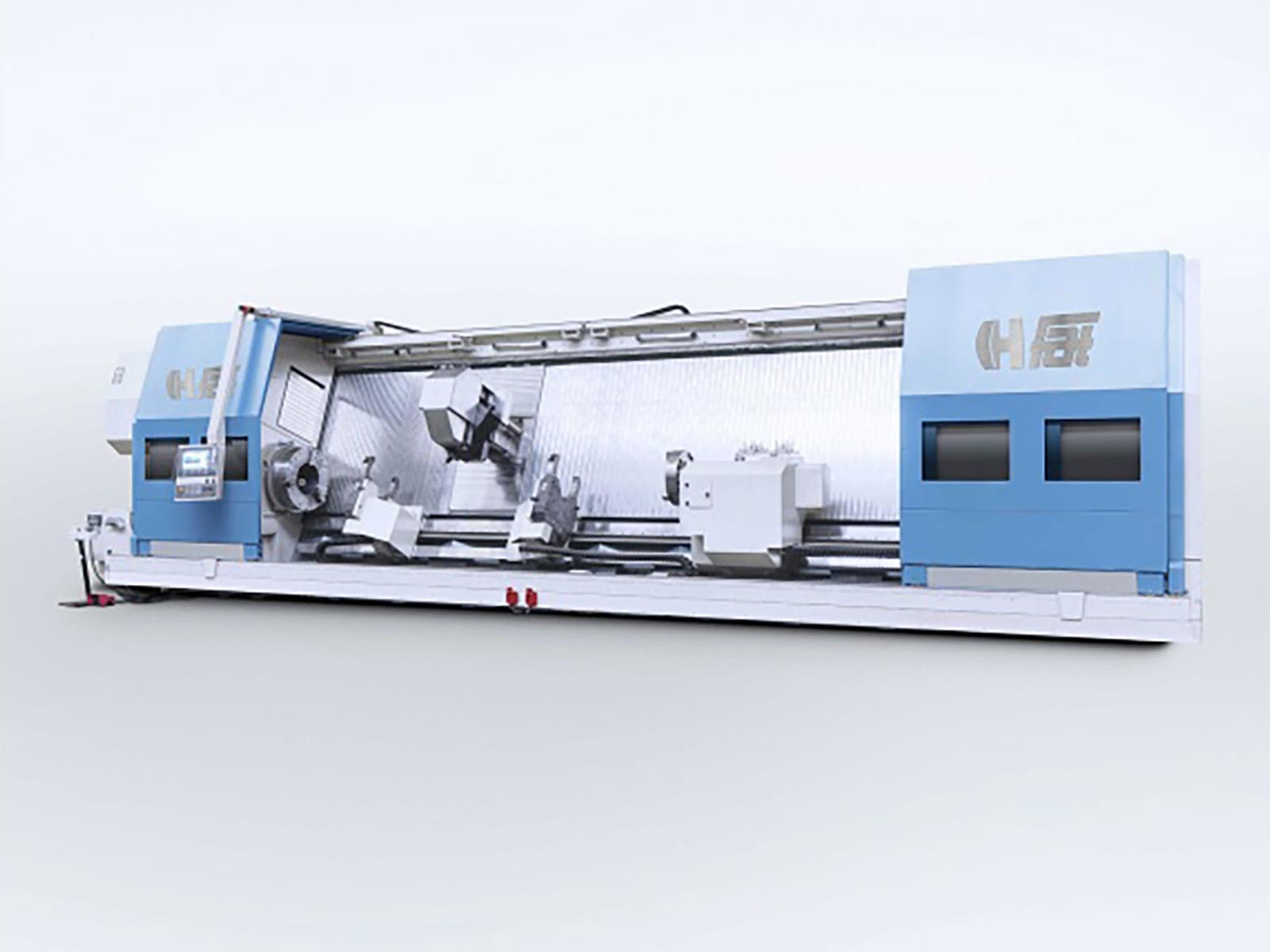

FCTS
