Key Details
Brand:
Fermat
Product:
BHM
Machine Type:
Grinding Machine
Automation:
Automation Compatible
Specification
Swing diameter
⌀ 500 mm > ⌀ 600 mm
Distance between centres
1,000 mm > 3,000 mm
Maximum workpiece size
1,500 kg
Maximum number of tools
1 + 1
Grinding wheel size
⌀ 500 mm x 80 mm x ⌀ 203 mm
Product Video

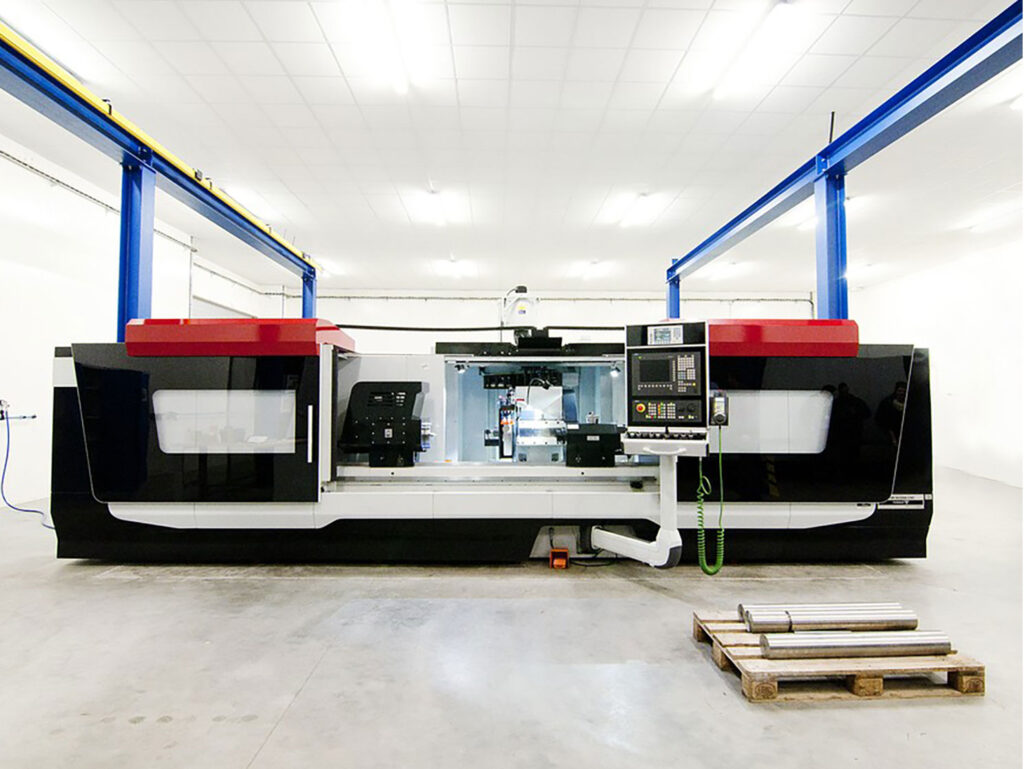

BHM Grinding Machine
Designed for external and internal grinding of workpieces clamped between centres or clamped in the chuck, the BHM is a stable and precise machine that can machine workpieces up to 1,500 kg.

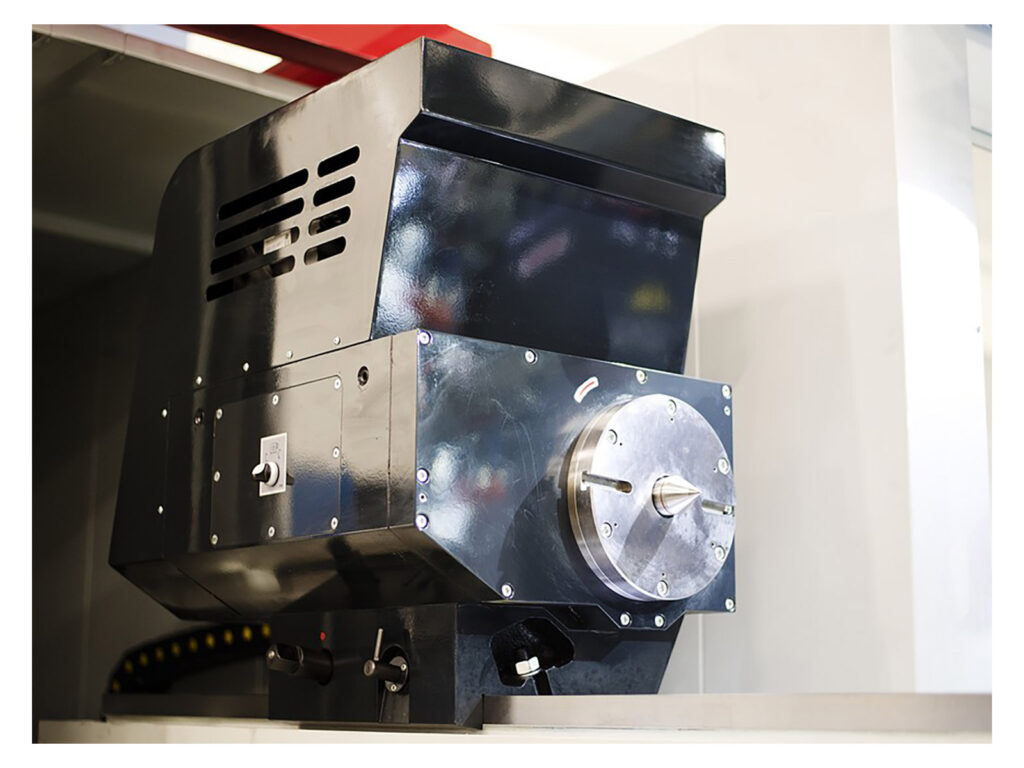

The machine operates with IT 4 accuracy and includes modern features such as rolling bearings, hand-scraped guideways with Teflon pads, in-process gauge, axial probe, electric steady rests, CNC rotary dresser, electric spindles, and Z-axis encoder.
The BHM can installed with SINUMERIK 828D sl, SINUMERIK 840D sl, SINUMERIK ONE or FANUC control systems.
Additional Information
FERMAT is a Czech manufacturer of machine tools known for their quality CNC grinding machines. Quality and precision of machining are their top priorities, with emphasis on the selection and development of all machine components.
They design custom machines to meet each customer’s exact needs. With over 40 years of experience, they’ve built more than 250 partnerships and delivered machines worldwide.
For further details on FERMAT’s BHM grinding machines download the brochure or contact our team.
