Key Details
Brand:
Gruppo Parpas
Product:
Active Mega
Machine Type:
5-axis, Milling Machine, Double Column Machining Centre
Automation:
Automation Ready
Specification
X-axis travels
2,200 mm > 4,200 mm
Y-axis travels
1,100 mm
Z-axis travels
2,050 mm
Rapid feedrates
60,000 mm/min
Spindle
up to 47 kW • 190 Nm • 22.000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A
Product Video

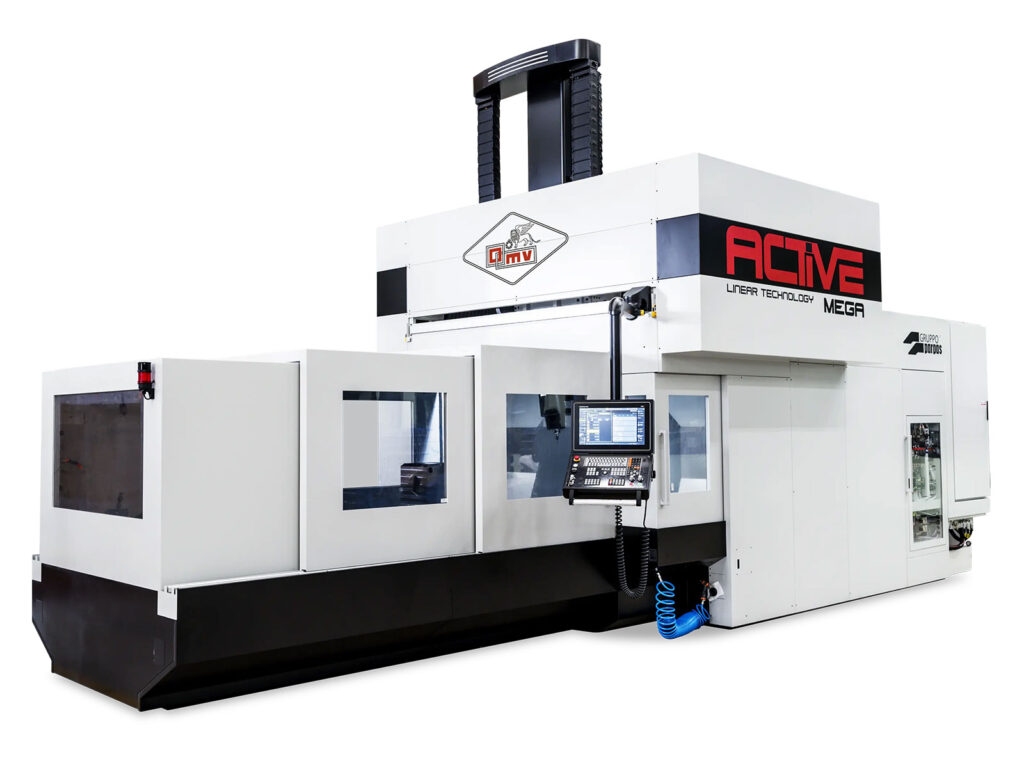

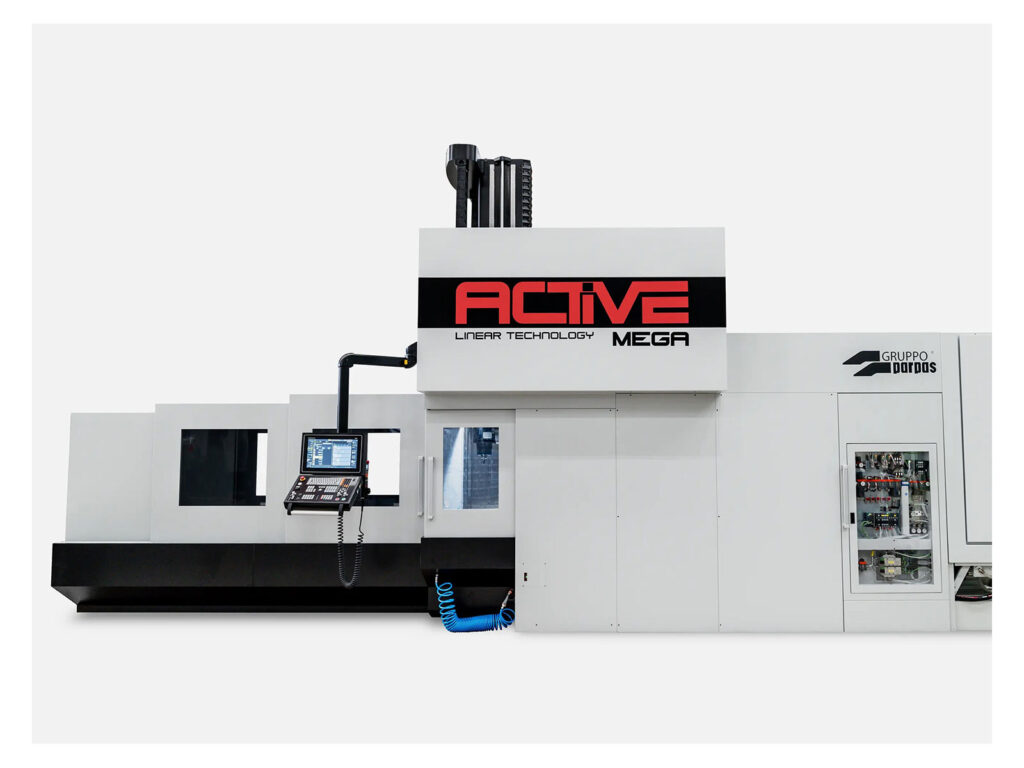

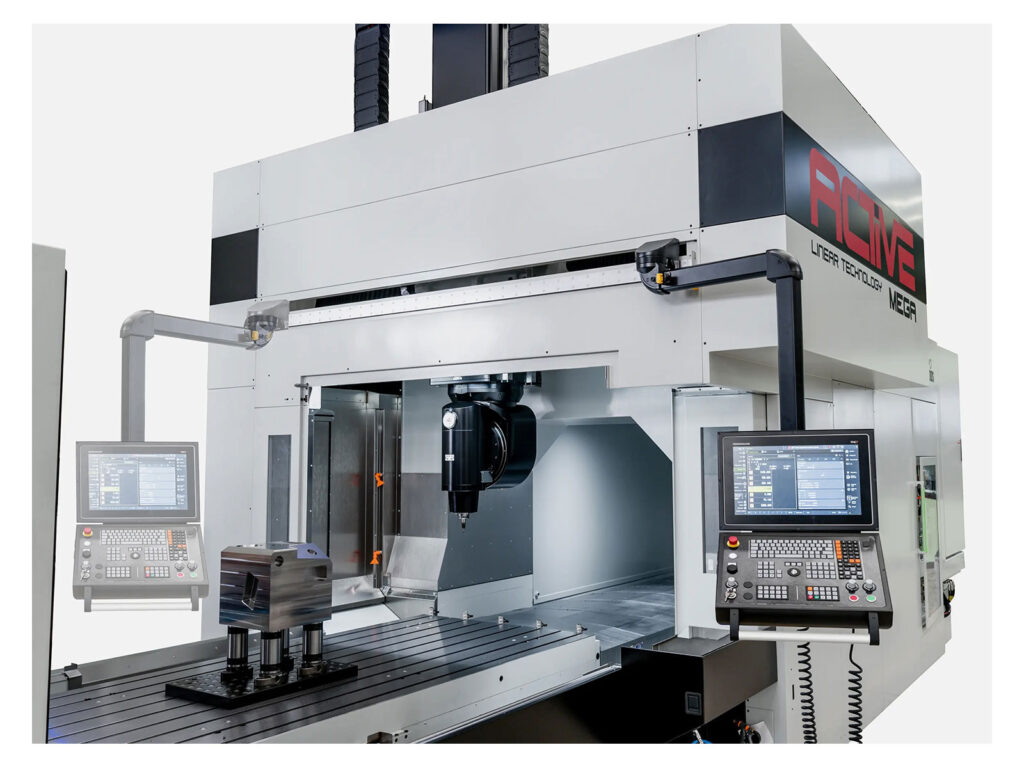

Fixed Portal & Moving Table Machine
ACTIVE MEGA is the biggest and most performing model of the ACTIVE line. It is designed to ensure high accuracy, high dynamics, and high loading capacity for large components. Developed to meet the most complex needs in loading capacity, accuracy, and automation, it is equipped with linear motors for smooth and fast movements with no mechanical wear.
This portal milling machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
The machine features an automatic tool changer that can be set up outside the work area for convenience. It also has augers that move chips into a scraper conveyor with a side exit.

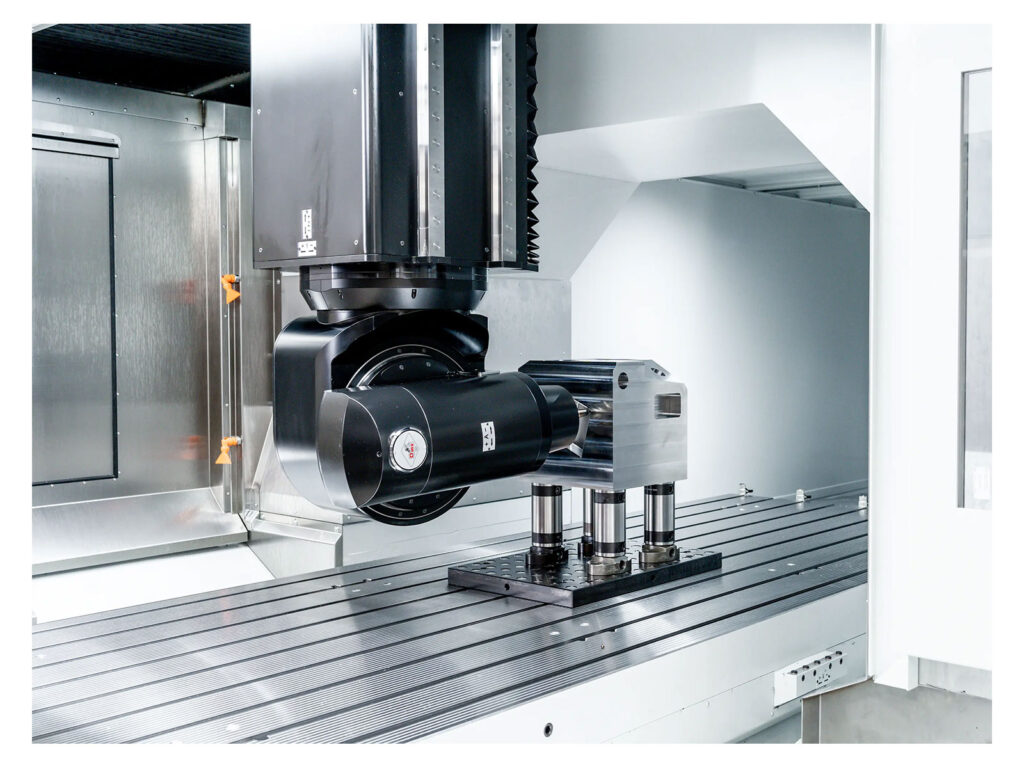

The available spindle heads on this machine are TET, TUB and TWE.
For further details about the ACTIVE MEGA machine, download the brochure or contact us.
