Key Details
Brand:
Gruppo Parpas
Product:
Aero
Machine Type:
Gantry Machine, 5-axis, Milling Machine, Mill/Turn Machine, Multi Solution Machine
Automation:
Automation Compatible
Specification
X-axis travels
5,000 mm > 30,000 mm
Y-axis travels
1,200 mm > 2,500 mm
Z-axis travels
5,000 mm > 7,600 mm
Rapid feedrates
80,000 mm/min
Spindle
up to 100 kW • 1,000 N.m • 36,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
High Dynamic & High Accuracy

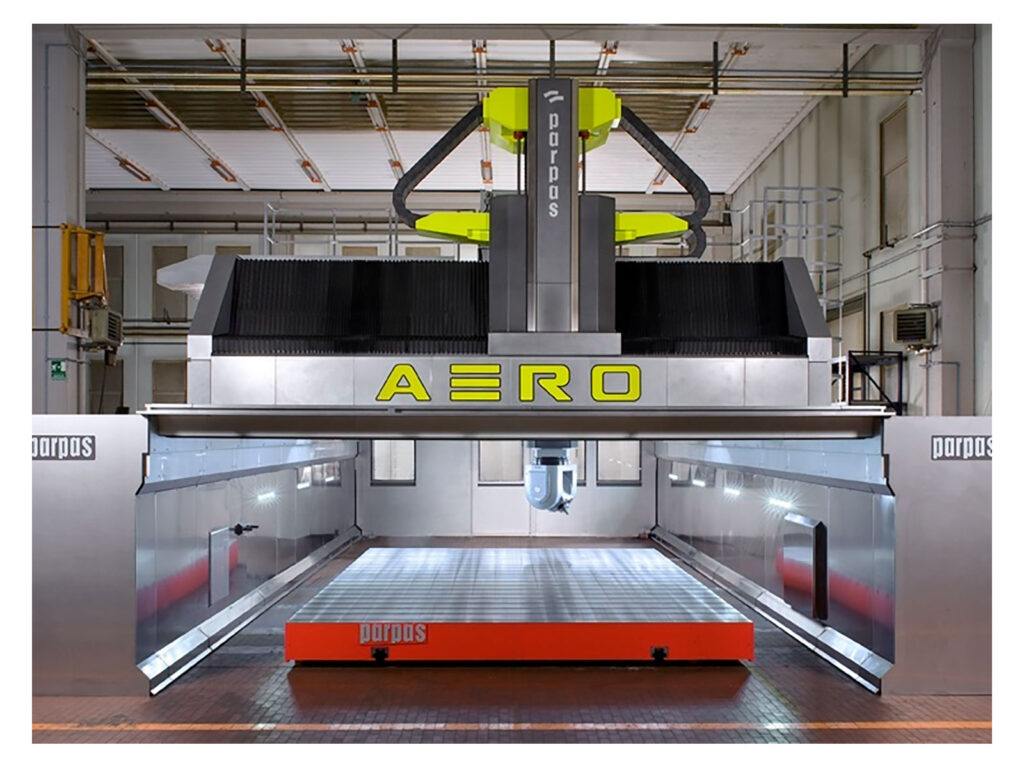

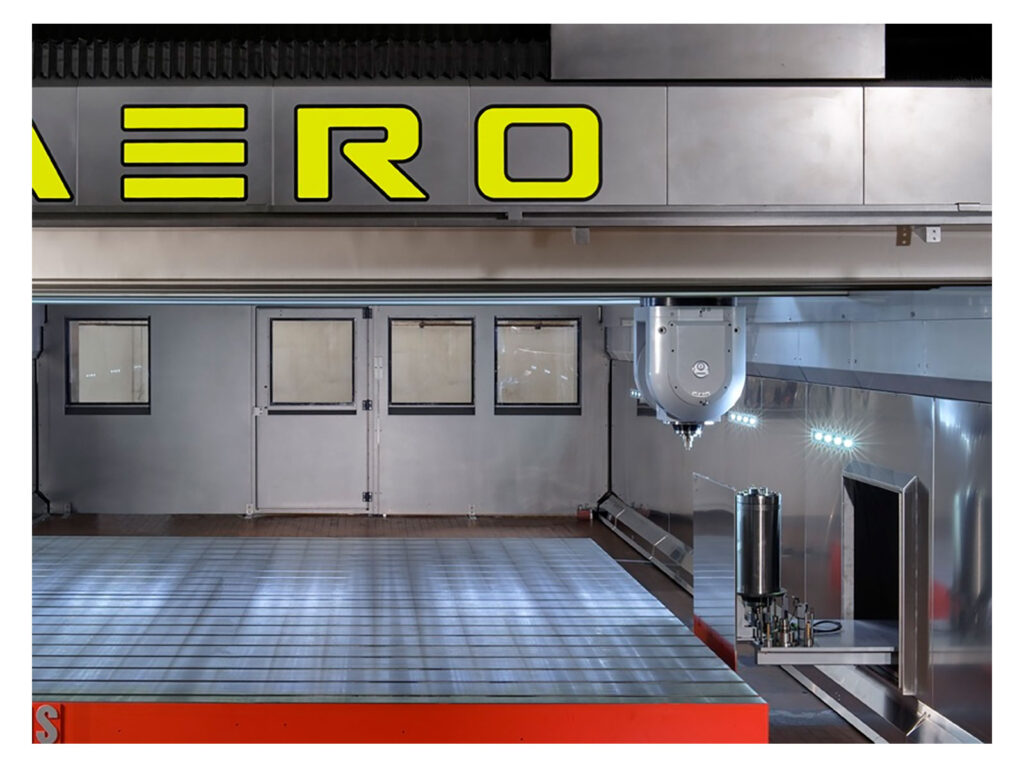

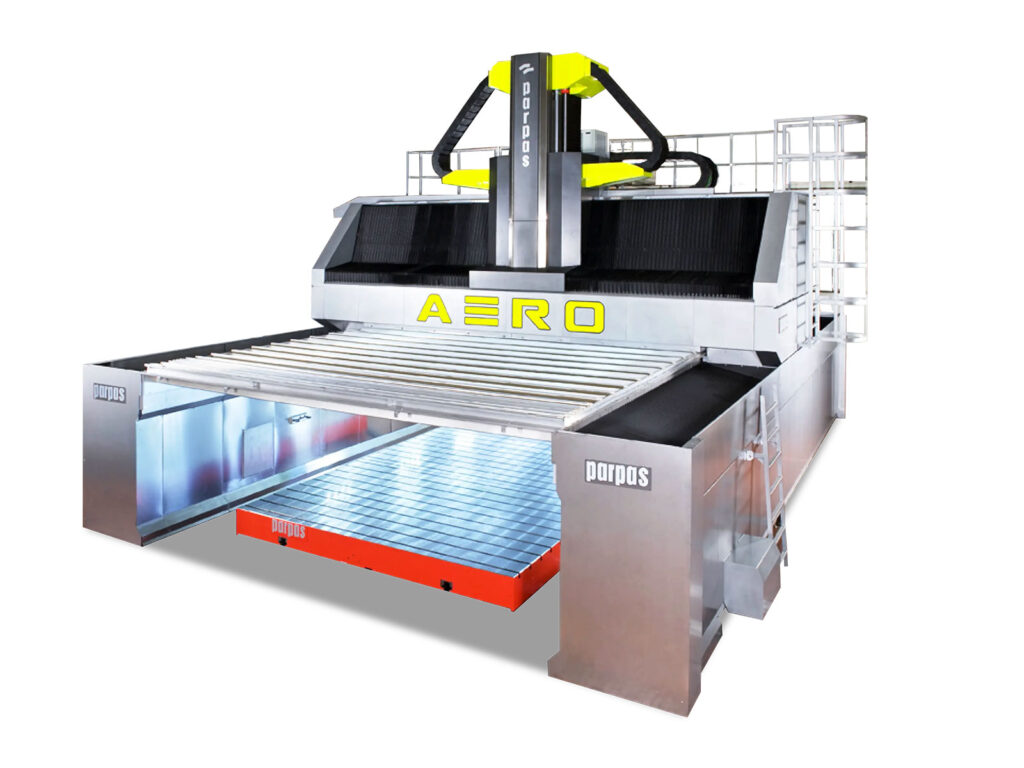

The AERO 5-axis gantry machining centre is designed for high-speed and high-removal rate machining, even on hard materials such as alloy steels, titanium, Inconel, and superalloys.

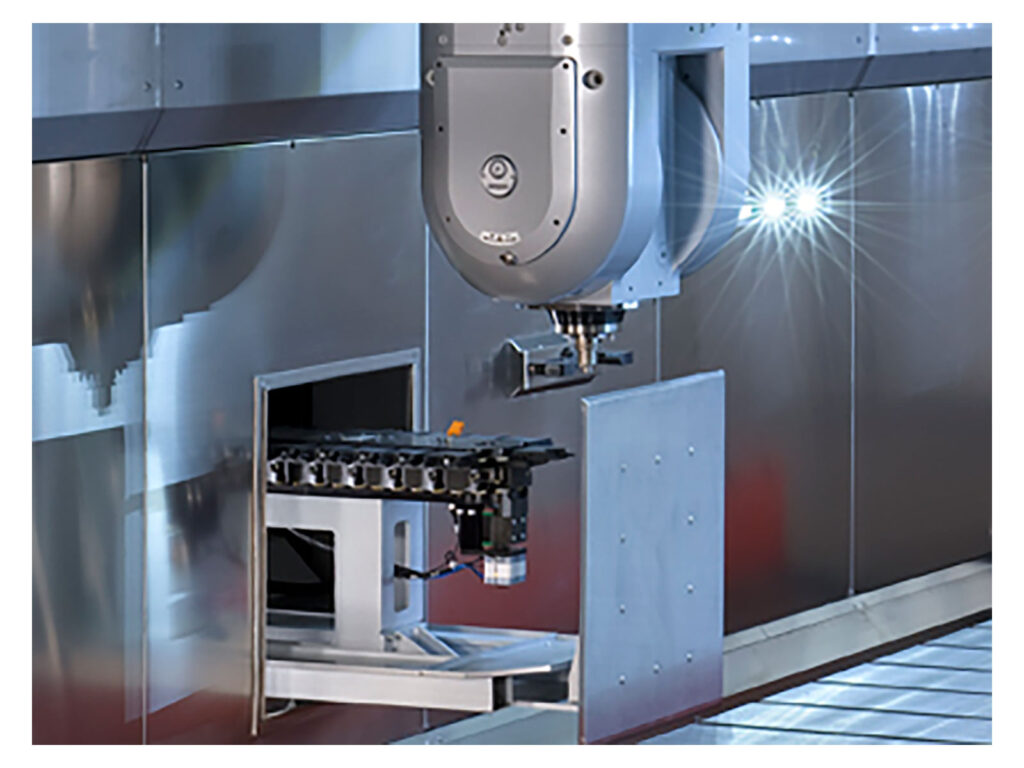

The machine can be set up with either an automatic head or an electrospindle change system. This means it can handle both rough and finishing tasks on different materials.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
With all these features, the integration of turning tables or pallet changing systems makes the AERO extremely efficient and flexible.
The available spindle heads on this machine are TTOV, TET, TWM, TO, TMT and TPM.
For further details about the AERO machine, download the brochure or contact us.
