Key Details
Brand:
Gruppo Parpas
Product:
BF Aero
Machine Type:
Multi Axis Machining Centre
Automation:
Automation Compatible
Specification
X-axis travels
2,000 mm > 4,000 mm
Y-axis travels
800 mm > 1,500 mm
Z-axis travels
800 mm > 1,600 mm
Rapid feedrates
12,000 mm/min
Spindle
46 kW • 6,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video

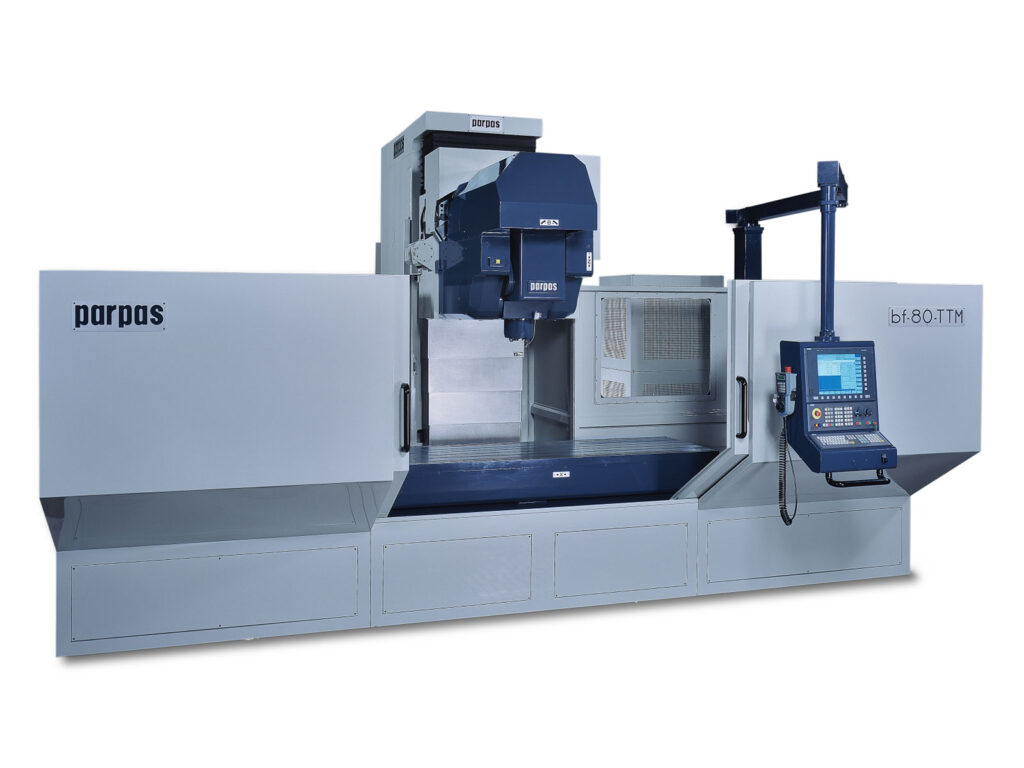

Multi Axis Machining Centre
The BF AERO is a versatile machine with a moving column design. It offers different tables and spindle heads to fit various tasks. You can also add automatic pallet changers to boost productivity.
This machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information

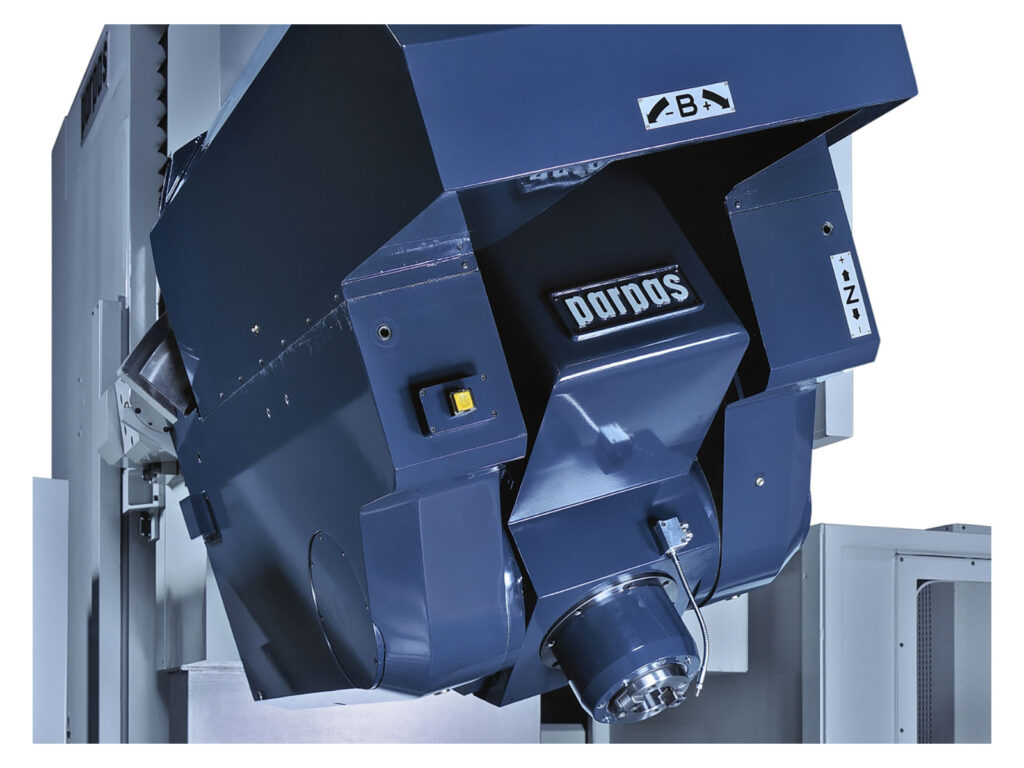

A wide range of solutions is offered, starting from mechanical power spindles to 2 continuous axis working heads with motion spindles. The possibility of installing rotary tables for milling and/or turning allows the machine to be exploited in all industrial sectors.
The machine features an automatic tool changer outside the working field and an enclosure with a large front opening for easy access and operator safety.
For further details about the BF Aero machine, download the brochure or contact us.
