Key Details
Brand:
Gruppo Parpas
Product:
Diamond 10
Machine Type:
Gantry Machine, 5-axis
Automation:
Automation Compatible
Specification
X-axis travels
1,500 mm
Y-axis travels
1,000 mm
Z-axis travels
2,200 mm
Rapid feedrates
60,000 mm/min
Spindle
> 78 kW • 220 N.m • 36,000 rpm
Spindle taper
HSK-63A • HSK-100A
Product Video
Precision & Reliability
The DIAMOND 10 is a gantry 5-axis high precision and reliability machining centre, ideal for high speed machining.
It is characterised by a monobloc structure, with a traverse with gantry configuration and piece always fixed, completely with linear motors for both linear and rotary axes with torque motors.
It is the right choice for sectors such as aerospace, power generation, mould and dies and general engineering where surface quality and process reliability are key points.
Additional Information

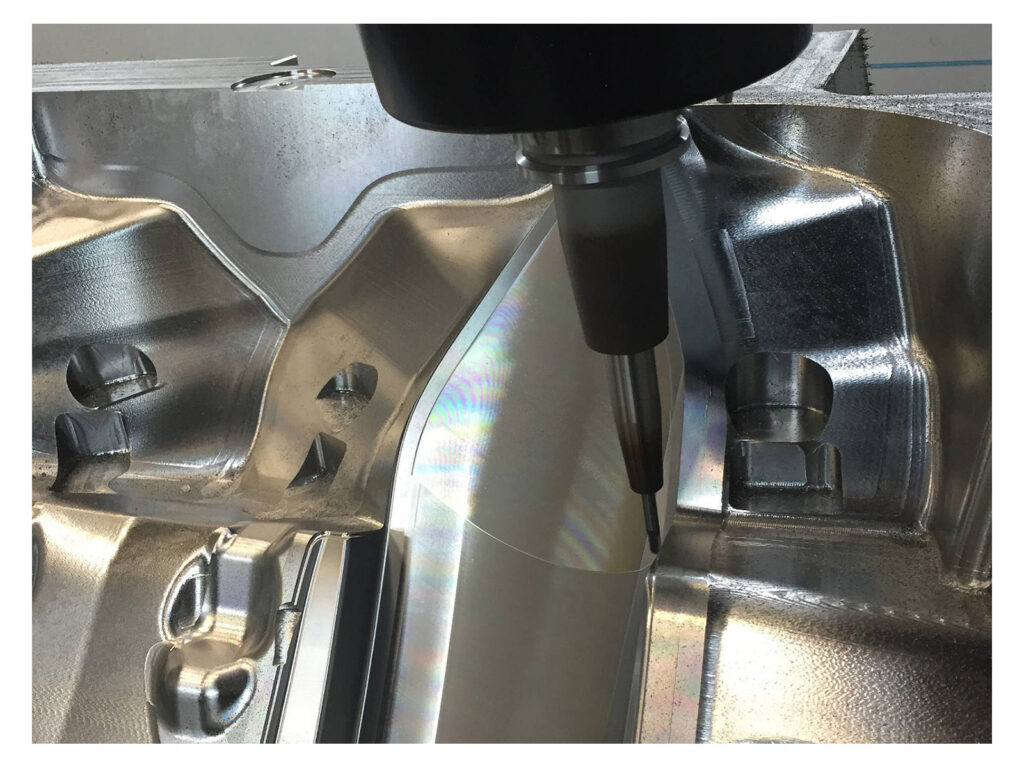

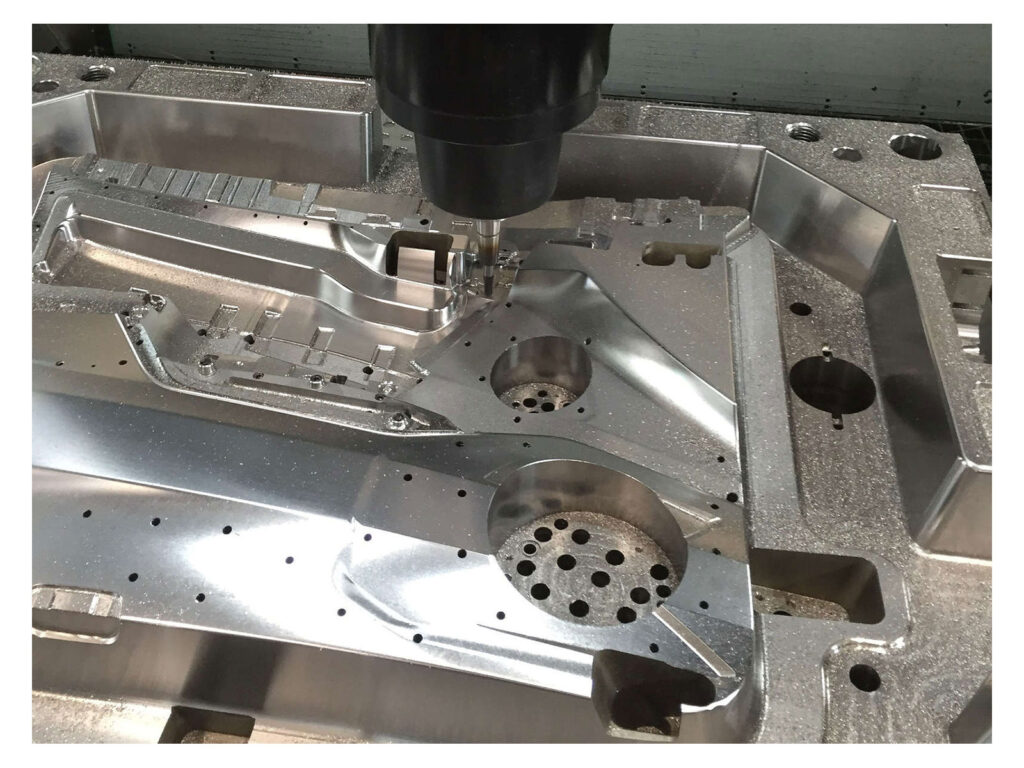

Extremely effective in high-speed roughing operations and extremely accurate and reliable in semi-finishing and finishing operations.
All this allows the machine to be, in the same way, highly performing even unmanned. Product can be customised according to customer requirements.
For further details about the DIAMOND 10 machine, download the brochure or contact us.
