Key Details
Brand:
Gruppo Parpas
Product:
Dinamika
Machine Type:
Floor Borer
Automation:
Automation Compatible
Specification
X-axis travels
4,500 mm > 20,500 mm
Y-axis travels
2,600 mm > 4,100 mm
Z-axis travels
1,600 mm > 1,800 mm
Rapid feedrates
30,000 mm/min
Spindle
up to 60 kW • 1,070 N.m • 22,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
High Speed & High Dynamic

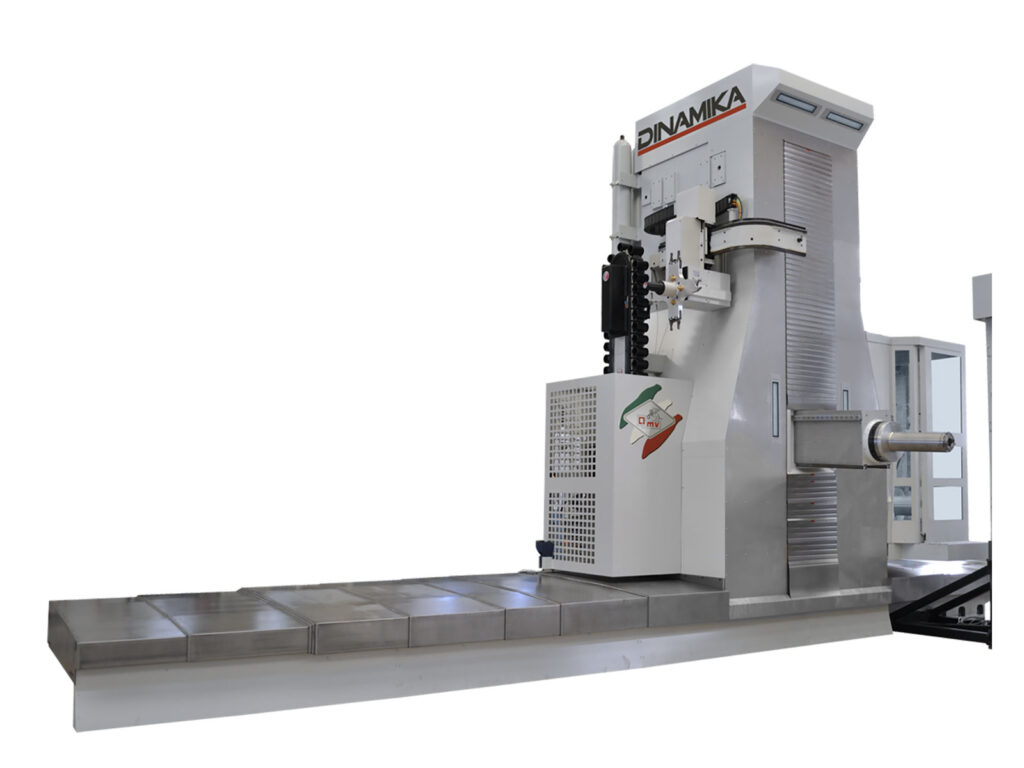

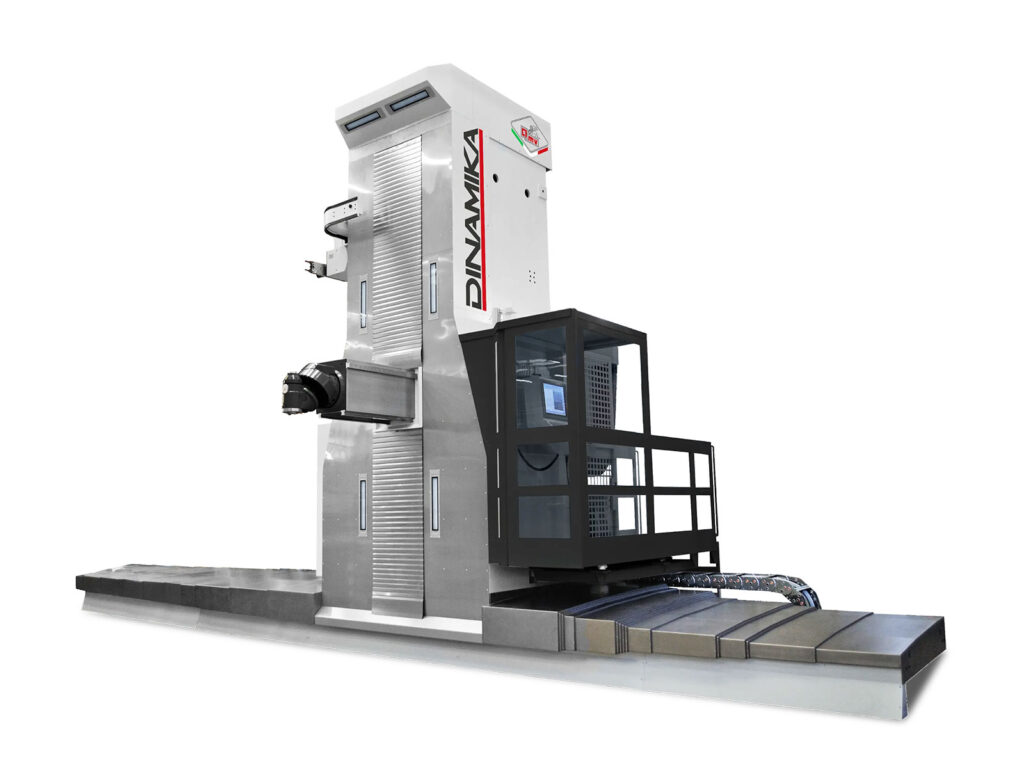

Gruppo Parpas’ DINAMIKA is a moving column machining center designed to ensure structural rigidity (thanks to its box-in-box structure), high speed, and high accuracy.
Precision ball screws equip the vertical and cross axes. The longitudinal axis moves with a double water-cooled motor-reducer. The column, saddle, and ram are large and ribbed for symmetry and consistent behaviour during machining.
This machine gantry milling machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
The customisable working area includes mill/turn rotary tables, tilting tables, squares, and clamping cubes. The closed platform integrated into the column ensures excellent visibility and protection from chips and water.
The available spindle heads on this machine are TPM, TPS, TMT, TET, TWE amd TUBE.
For further details about the DINAMIKA machine, download the brochure or contact us.
