Key Details
Brand:
Gruppo Parpas
Product:
Esagon
Machine Type:
Gantry Machine, 5-axis, High Speed Gantry Machine
Automation:
Automation Compatible
Specification
X-axis travels
1,200 mm
Y-axis travels
700 mm
Z-axis travels
750 mm
Rapid feedrates
120,000 mm/min
Spindle
up to 37 kW • 117 Nm • 27.000 rpm
Spindle taper
HSK-63A
Product Video

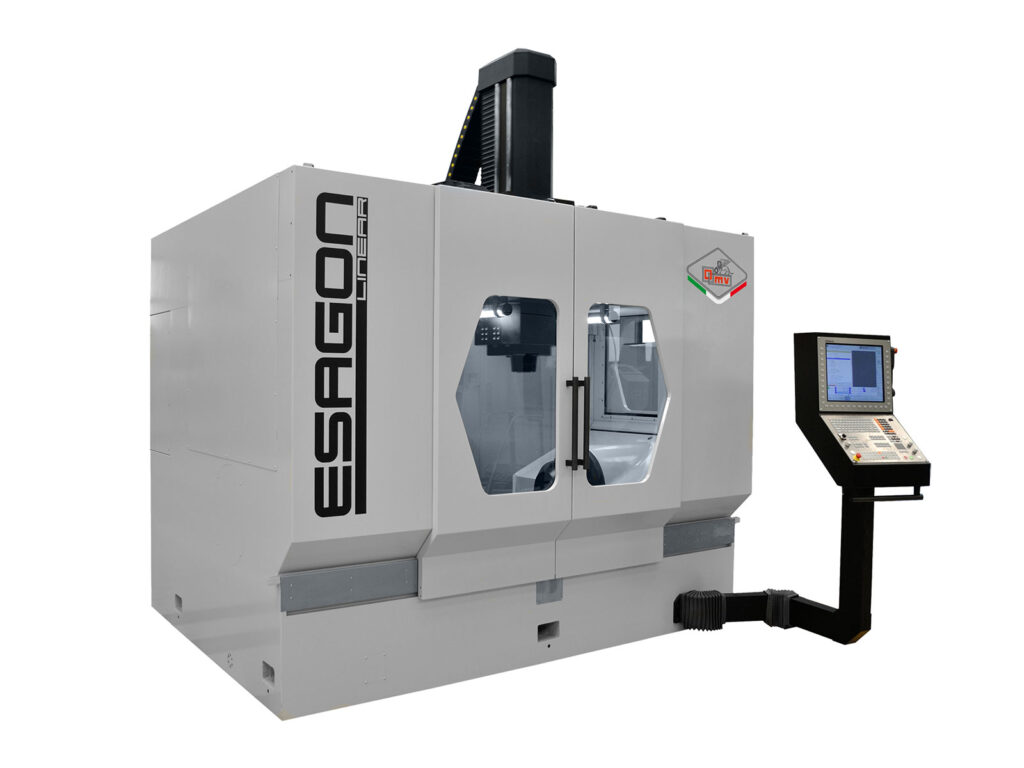

3 or 5-axis Gantry Machining Centre
Gruppo Parpas‘ ESAGON is available in 3 or 5-axis and offers both high speed and high accuracy. It offers manufacturers multiple space benefits such as a closed enclosure with a compact structure, allowing the operator excellent visibility of the working area while providing safety from swarf.
The ESAGON gantry milling machining centre is perfect for manufacturers with applications in automotive, aerospace, power generation and general engineering.
Additional Information
The machine features a rotating table (120 rpm), tilting table (60 rpm) with torque motors, and a monobloc cast iron base. Its symmetrical, ultralight alloy box-structure ram ensures consistent performance despite temperature changes and processing stresses.
Gruppo Parpas‘ ESAGON is available in 3 or 5-axis and offers both high speed and high accuracy. It offers manufacturers multiple space benefits such as a closed enclosure with a compact structure, allowing the operator excellent visibility of the working area while providing safety from swarf.
For further details about the ESAGON machine, download the brochure or contact us.
