Key Details
Brand:
Gruppo Parpas
Product:
Manta
Machine Type:
5-axis
Automation:
Automation Compatible
Specification
X-axis travels
2,200 mm > 3,000 mm
Y-axis travels
1,00 mm
Z-axis travels
900 mm
Rapid feedrates
40,000 mm/min
Spindle
up to 47 kW • 190 Nm • 22,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
Fast, Accurate and Compact

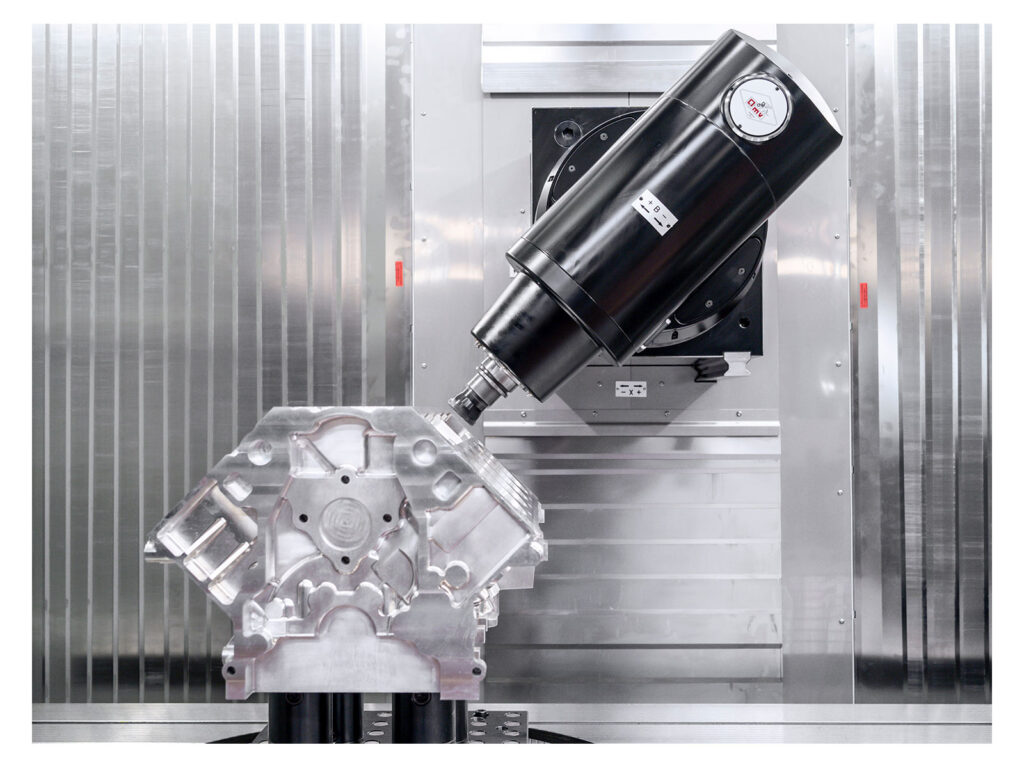

Compact and versatile fixed table moving column machining centre for accurate machining. This ram-type milling centre offers a standard rectangular fixed table or an optional rotary table. The rotary table can handle up to 1,500 kg, making it versatile for various production needs.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
The available spindle head with this machine is Gruppo Parpas‘ TVE vertical head with motor-spindle, a speed of up to 22,000 rpm, and a power of 47 kW.
This high-speed spindle allows for precise and powerful operations, making it perfect for tasks that require high tolerance.
For further details about the MANTA machine, download the brochure or contact us.
