Key Details
Brand:
Gruppo Parpas
Product:
Roller XL Full Linear
Machine Type:
5-axis, Milling Machine, Mill/Turn Machine, Double Column Machining Centre
Automation:
Automation Compatible, Pallet Systems
Specification
X-axis travels
2,050 mm
Y-axis travels
1,000 mm
Z-axis travels
2,030 mm
Rapid feedrates
60,000 mm/min
Spindle
up to 47 kW • 190 Nm • 22,000 rpm
Spindle taper
HSK-63A
Product Video

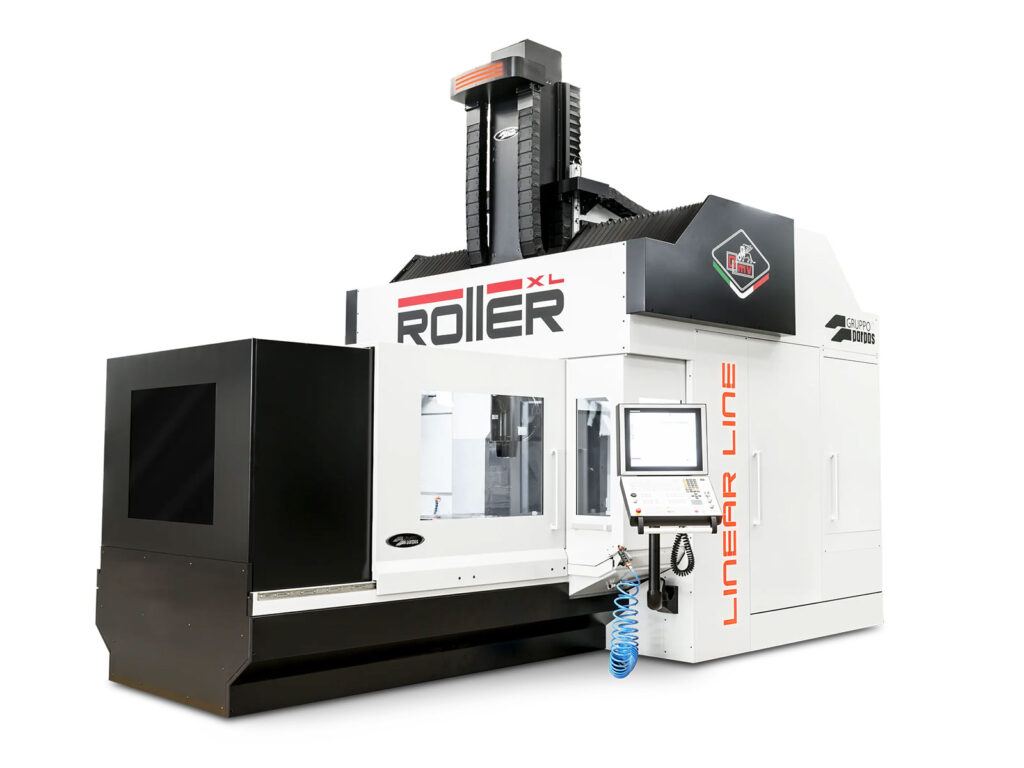

5-axis Fixed Portal & Moving Table Machine
The ROLLER XL FULL LINEAR is a 5-axis machining centre with linear motors for deep drilling. It has an automatic tool changer outside the work area. Chips are evacuated by augers to a side exit conveyor. The tunnel opening enclosure leaves the table free for easy loading and access.
This portal milling machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
Gruppo Parpas offer many pallet options that can be integrated into flexible production systems. Their solutions are designed to fit different needs and make production more efficient.
The available spindle head on this machine is Gruppo Parpas’ TUB.
For further details about the ROLLER XL FULL LINEAR machine, download the brochure or contact us.
