Key Details
Brand:
Gruppo Parpas
Product:
Shark
Machine Type:
5-axis, Milling Machine, Universal Milling Machine, Mill/Turn Machine, Multi Zone Machining
Automation:
Automation Compatible
Specification
X-axis travels
3,000 mm > 6,000 mm
Y-axis travels
1,600 mm
Z-axis travels
1,200 mm > 1,400 mm
Rapid feedrates
30,000 mm/min
Spindle
up to 50 kW • 750 Nm • 22,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
Powerful Machining
The frame is stabilised through a special treatment to maintain maximum stability. On the top of the bed, two linear roller guideways are positioned at 800mm distance part. Their preloaded roller bearing pads, with a low centre of gravity, are fixed to the column base.

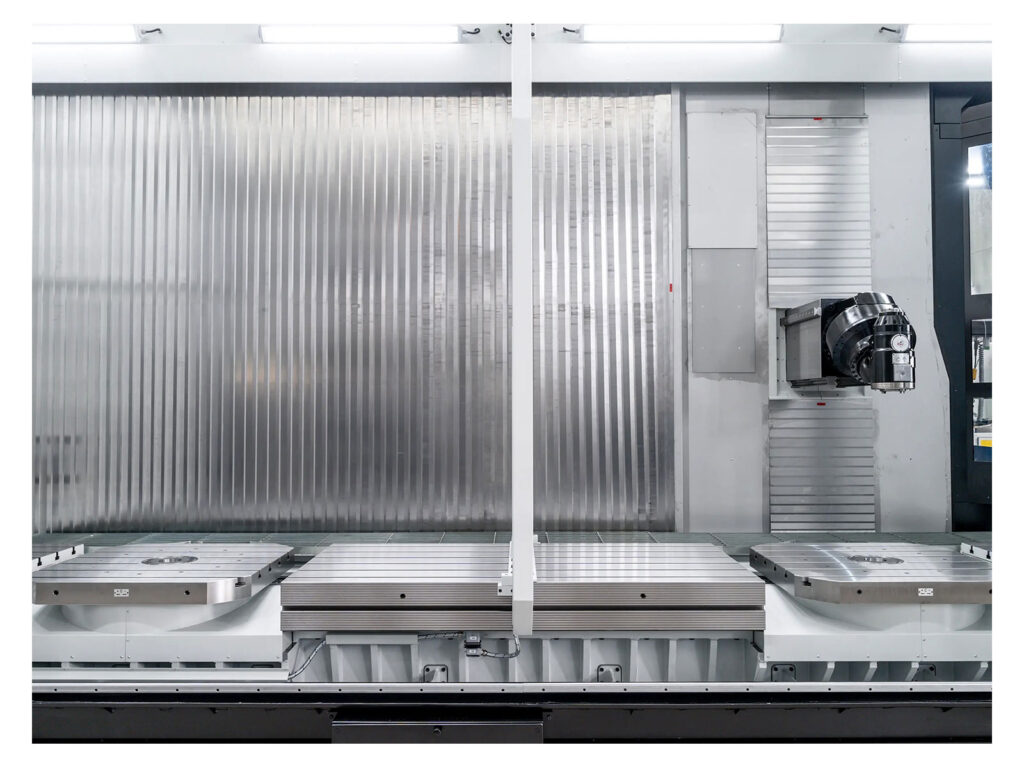

This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.

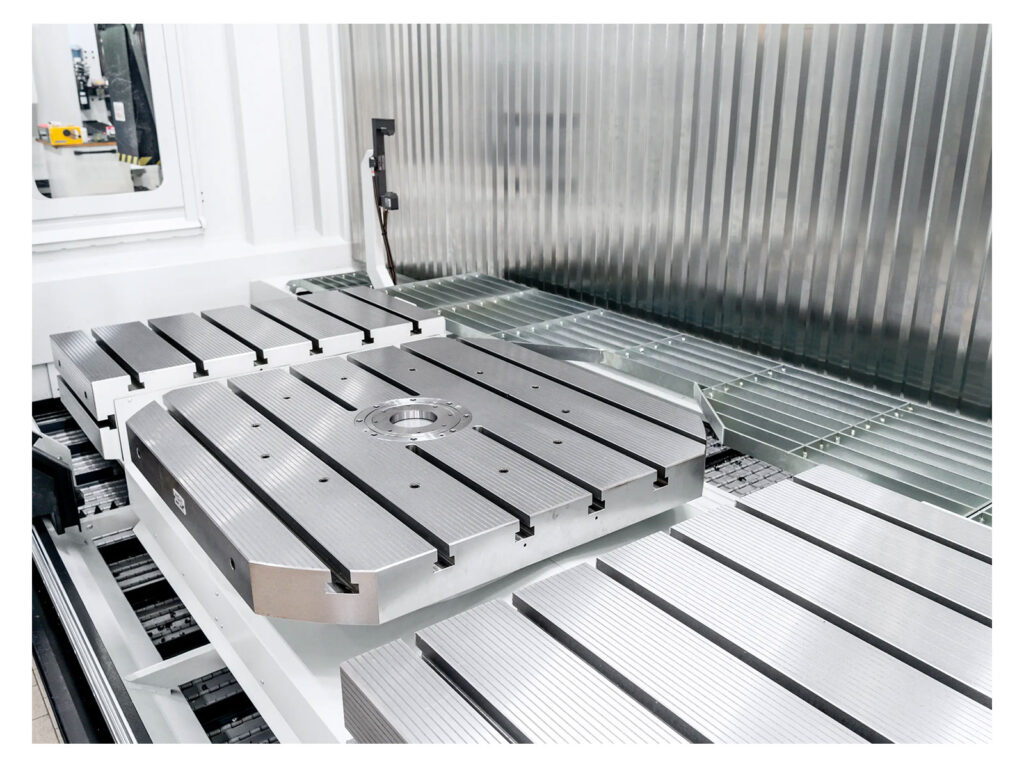

Working Area Completely Customisable
The machine bed is anchored to the floor through special leveling pads and anchor bolts. The column is impressive as the frame is made of electro-welded steel of ample size and strongly ribbed to guarantee the highest rigidity while roughing. After the welding and transforming processes, it is stabilised through a double stress-release treatment.
The structure is completely symmetrical and guarantees constant behavior independently of heat and stresses created during machining. The column, consisting of a monolithic box-type structure with a base 1,100 mm wide and 850 mm deep, guarantees high rigidity and a uniform distribution of loads and stresses created during machining, even at high acceleration.
Additional Information
It is directly bolted to 8 roller pads on 2 bed guide-ways, guaranteeing extremely high rigidity. Thermal compensation for heat expansion is provided. A CNC automatic system equipped with heat sensors measures and checks the temperatures of those parts that are subject to heat expansion or exposed to heat, relative to the environmental temperature. Expansions are compensated for electronically so that the highest accuracy under all working conditions can be attained.
For further details about the SHARK machine, download the brochure or contact us.
