Key Details
Brand:
Gruppo Parpas
Product:
Shark One
Machine Type:
5-axis, Milling Machine
Automation:
Automation Compatible
Specification
X-axis travels
2,500 mm > 6,000 mm
Y-axis travels
1,200 mm
Z-axis travels
1,050 mm
Rapid feedrates
40,000 mm/min
Spindle
up to 50 kW • 400 Nm • 22,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video

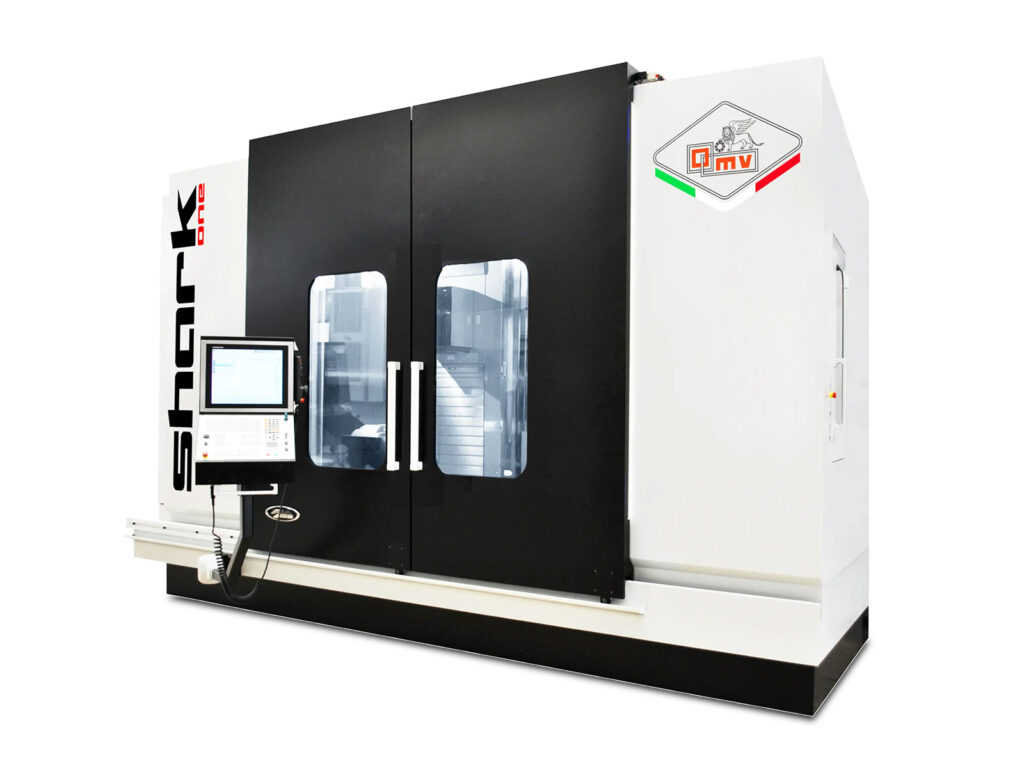

Reliability & Flexibility

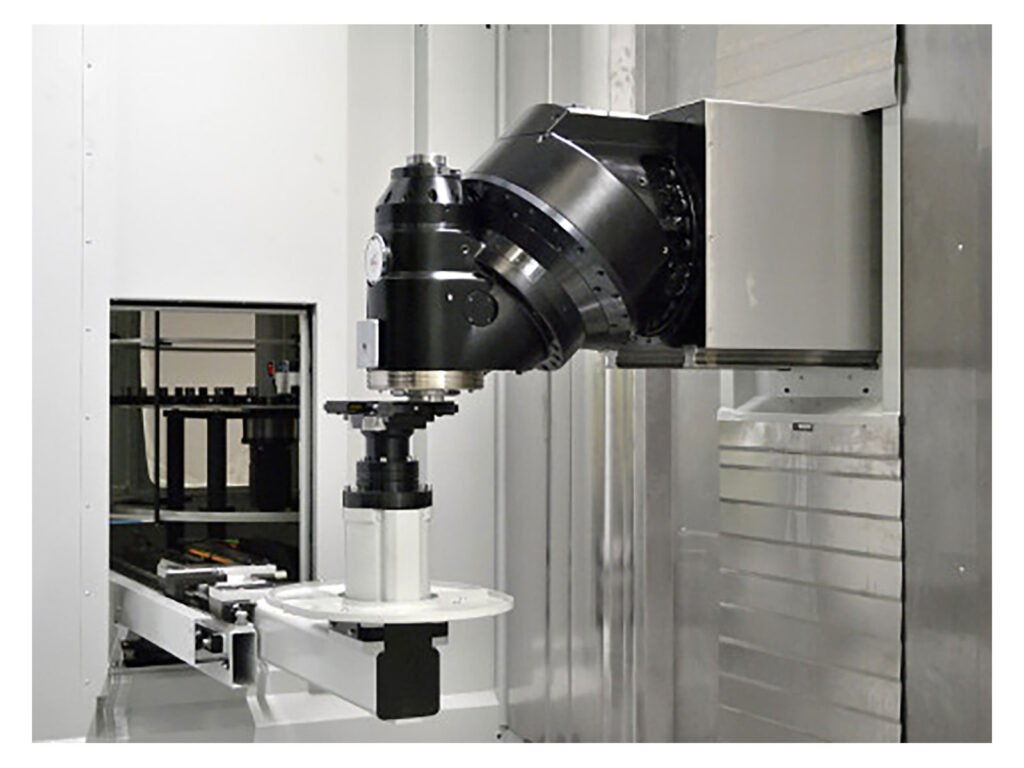

This machine is the best choice for manufacturers looking for reliability and flexibility when space is limited. The SHARK ONE can be configured with a wide range of heads and accessories. The possibility of having integrated rotary tables and multi-area configurations makes this machine perfect for optimised management of variable production.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in automotive and general engineering.
Additional Information

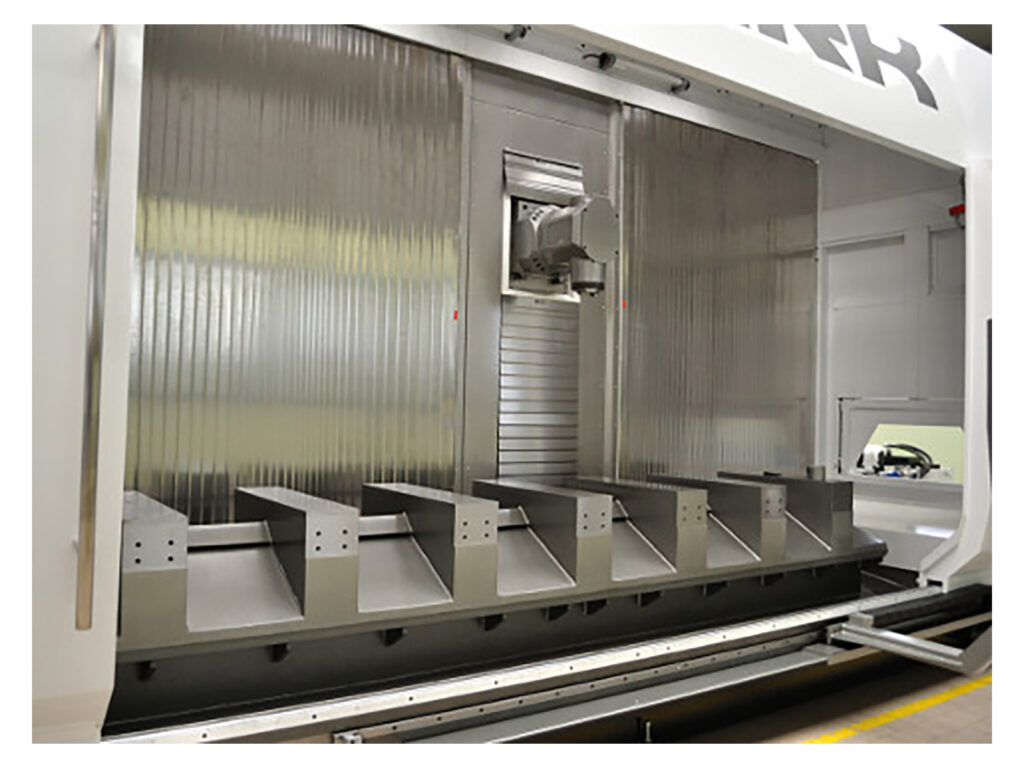

Precision ballscrews equip the vertical and cross axes. The longitudinal axis uses a double water-cooled motor-reducer group or ballscrews. Generously dimensioned, ribbed, and symmetrical structures ensure consistent performance despite temperature changes and machining forces. The working area is fully customisable.
For further details about the SHARK ONE machine, download the brochure or contact us.
