Key Details
Brand:
Gruppo Parpas
Product:
Speedliner
Machine Type:
Gantry Machine, 5-axis, Milling Machine, Mill/Turn Machine
Automation:
Automation Compatible
Specification
X-axis travels
2,500 mm > 30,000 mm
Y-axis travels
1,200 mm > 1,750 mm
Z-axis travels
1,800 mm > 3,600 mm
Rapid feedrates
60,000 mm/min
Spindle
up to 78 kW • 220 N.m • 36,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
High Speed & High Accuracy

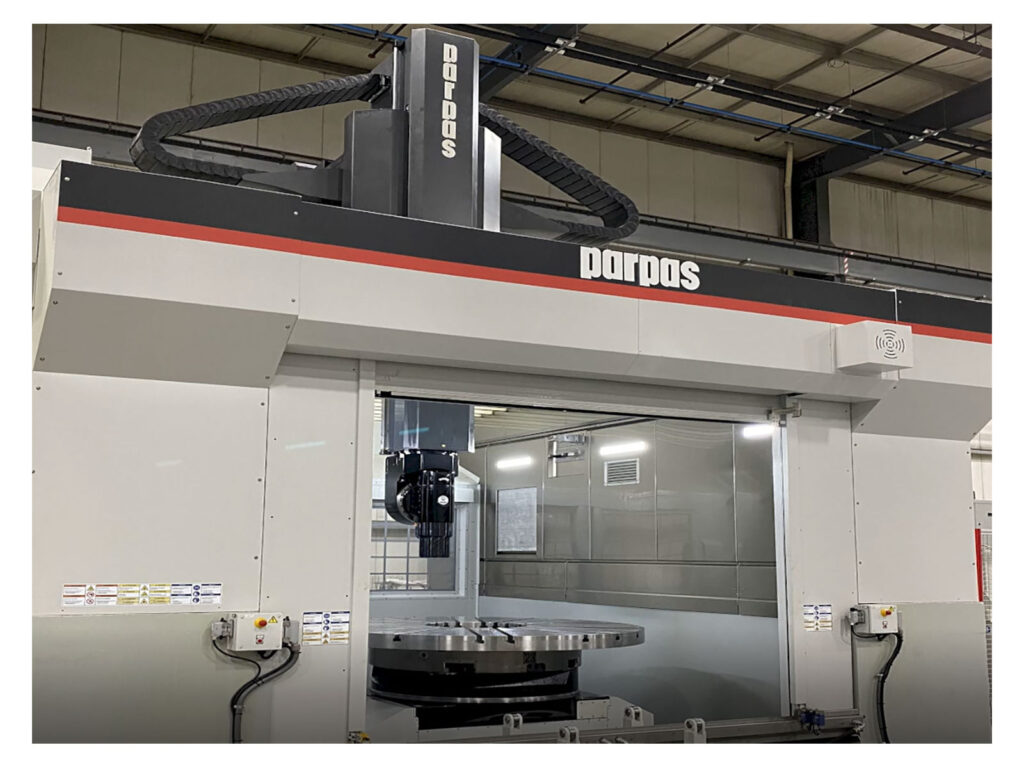

The gantry milling machine has the capability for 3 or 5-axis high speed machining and features a monobloc gantry style structure with a moving saddle and a stationary workpiece.
The machine also has a unique thermal stability control system ensuring it stays between 18-30°C to maintain high accuracy and a volumetric accuracy of 40 µm within the working envelope.
This machine gantry milling machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
The SPEEDLINER can be customised depending on your manufacturing requirements such as the heads and tool magazines etc.
The available spindle heads on this machine are AVOP 80 and TOE.
For further details about the SPEEDLINER machine, download the brochure or contact us.
