Key Details
Brand:
Gruppo Parpas
Product:
THS 120
Machine Type:
Multi Axis Machining Centre, Mill/Turn Machine
Automation:
Automation Compatible, Pallet Systems
Specification
X-axis travels
1,600 mm > 3,000 mm
Y-axis travels
1,250 mm > 2,000 mm
Z-axis travels
1,250 mm > 2,000 mm
Rapid feedrates
30,000 mm/min
Spindle
up to 78 Kw • 1,375 Nm • 36,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
Multi Axis Machining Centre

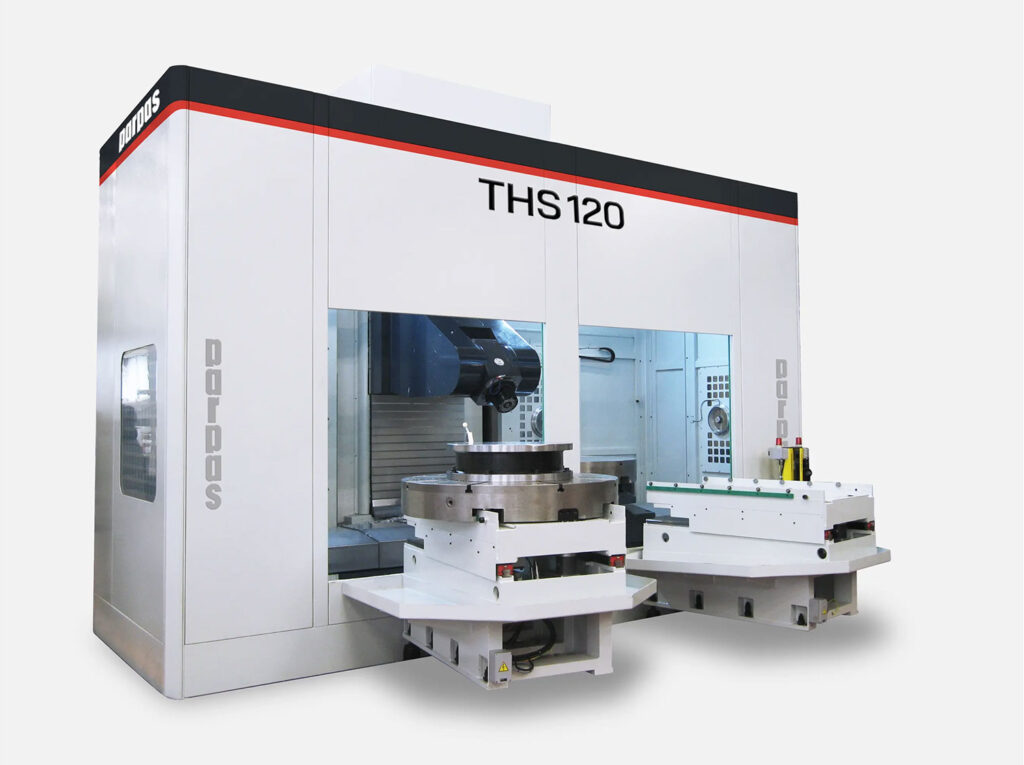

The THS 120 is a versatile machine with a moving column design. It offers different tables and spindle heads to fit various tasks. You can also add automatic pallet changers to boost productivity.
This machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information

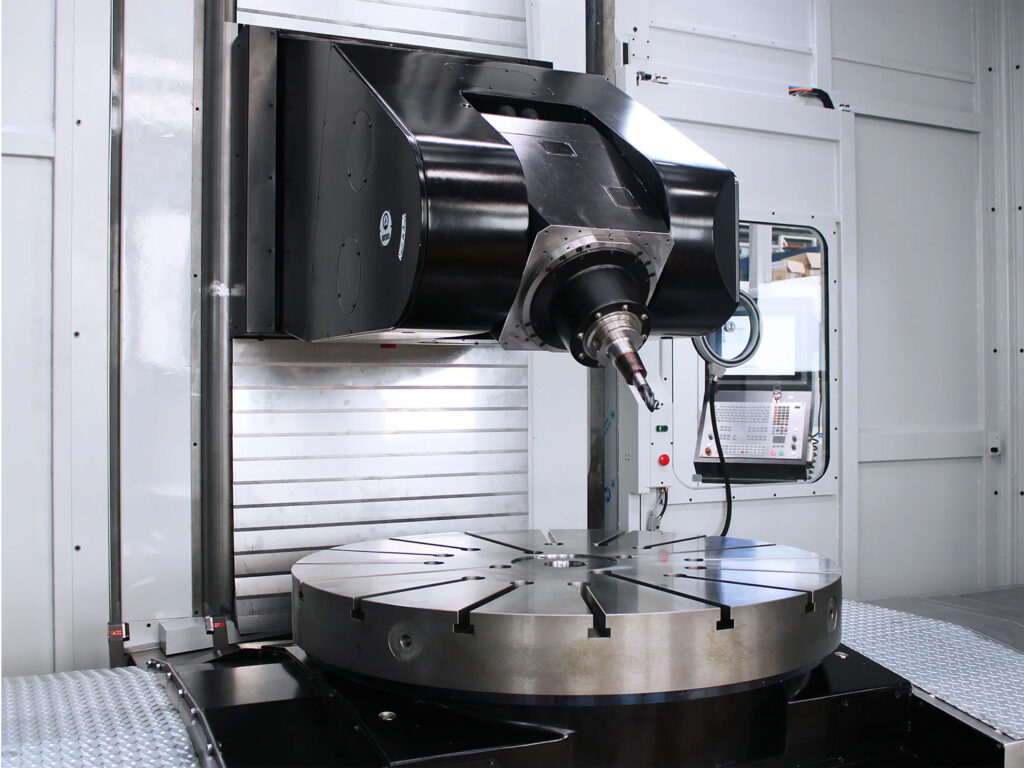

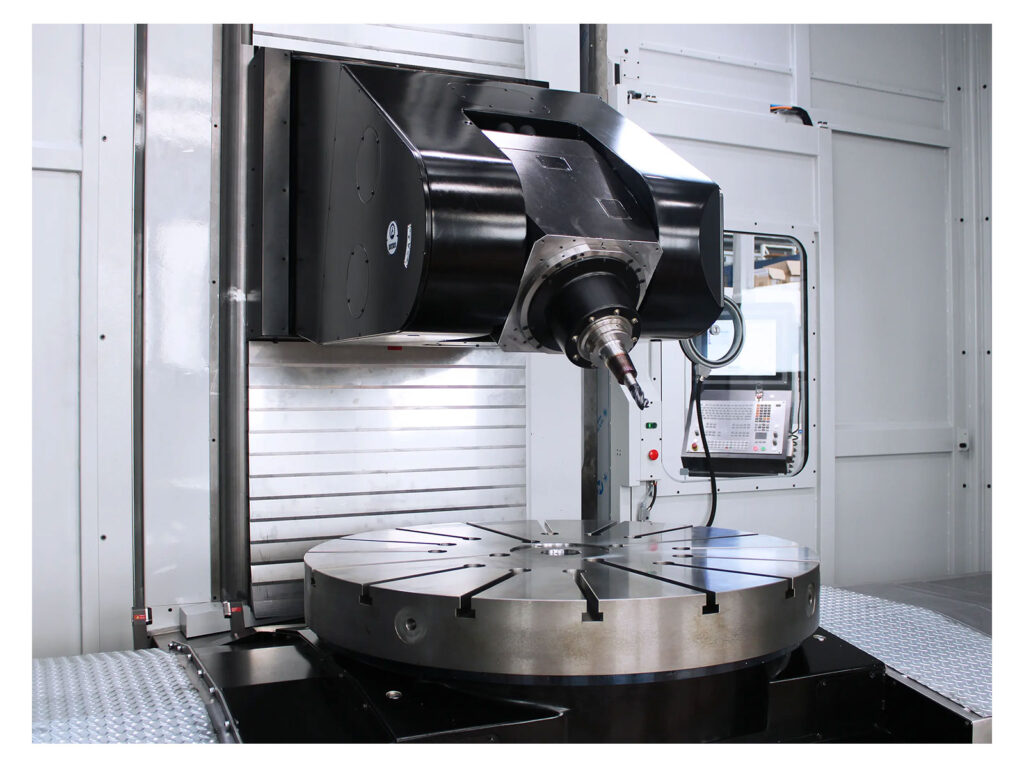

A wide range of solutions is offered, starting from mechanical power spindles to 2 continuous axis working heads with motion spindles. The possibility of installing rotary tables for milling and/or turning allows the machine to be exploited in all industrial sectors.

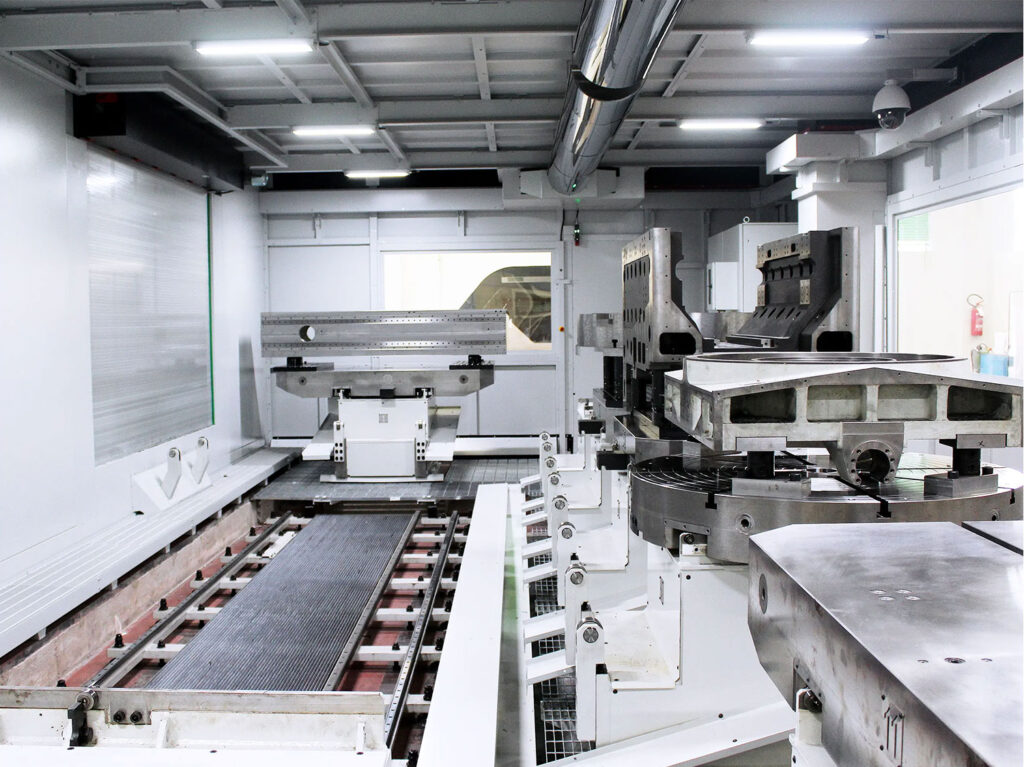

The machine features an automatic tool changer outside the working field and an enclosure with a large front opening for easy access and operator safety. The heads that are available with this machine are TVE, TET, TMT, TILT-E and TILT-M.
For further details about the THS 120 machine, download the brochure or contact us.
