Key Details
Brand:
Gruppo Parpas
Product:
Twin
Machine Type:
5-axis, Horizontal Machining Centre, Multi Zone Machining
Automation:
Automation Compatible
Specification
X-axis travels
800 + 800 • 1.050 + 1.050 mm
Y-axis travels
650 mm
Z-axis travels
500 > 700 mm
Rapid feedrates
60,000 mm/min
Spindle
37 > 55 kW • 15.000 > 22.000 rpm
Spindle taper
HSK-63A • HSK-100A • ISO40 • ISO50
Product Video
3, 4 or 5-axis Milling Machining Centre

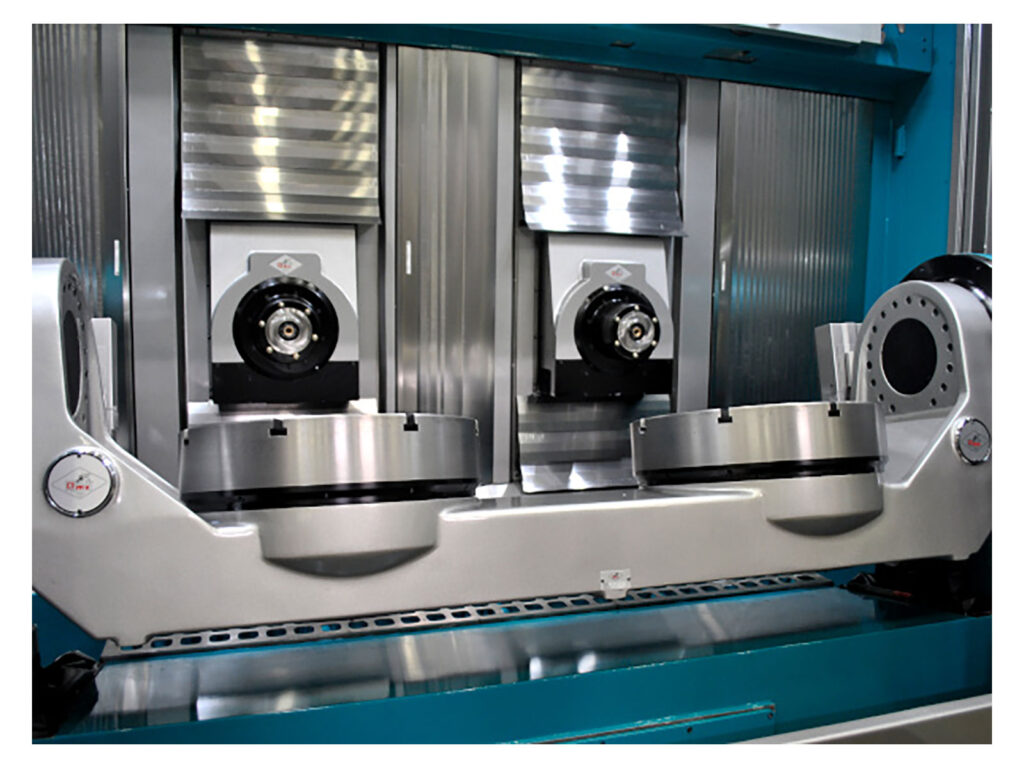

This milling machine has two columns and two rotary and tilting tables, allowing it to produce two identical pieces at the same time. It can perform 3, 4, or 5-axis machining. The machine is managed by one CNC system, making it efficient and easy to control.
The TWIN gantry milling machining centre is perfect for manufacturers with applications in aerospace, power generation and general engineering.
Additional Information
Projected through the calculation to finished elements, FEM, introduces good characteristics of rigidity in the movements and damping of the vibrations.
Gruppo Parpas‘ TWIN is available in 3, 4 or 5-axis and offers both high speed and high accuracy. It offers manufacturers multiple space benefits such as a closed enclosure with a compact structure, allowing the operator excellent visibility of the working area while providing safety.
For further details about the TWIN machine, download the brochure or contact us.
