Key Details
Brand:
Gruppo Parpas
Product:
Unika Blade
Machine Type:
Specialist Milling Machine
Automation:
Automation Compatible
Specification
X-axis travels
1,100 mm > 2,000 mm
Y-axis travels
600 mm > 800 mm
Z-axis travels
600 mm > 800 mm
Rapid feedrates
60,000 mm/min
Spindle
up to 55 kW • 20,000 rpm
Spindle taper
HSK-63A
Product Video

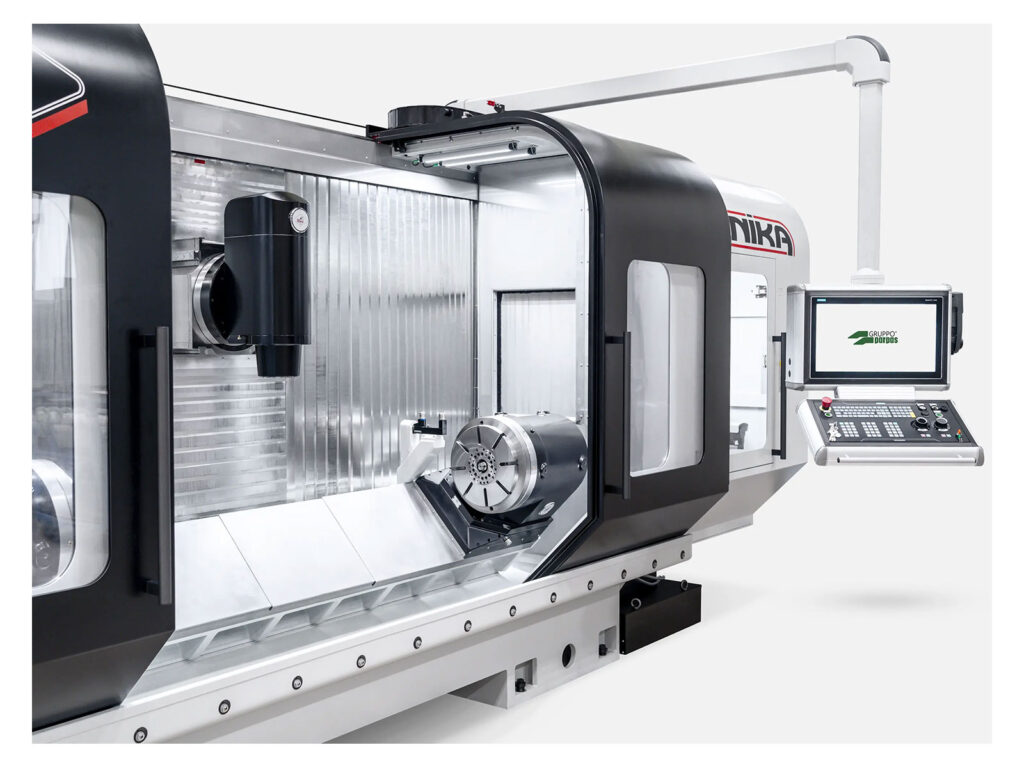

High-speed Moving Column Machine
Its box-in-box structure and linear motors ensure unmatched rigidity, stability, and performance, even during 5-axis machining of tough materials like titanium.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
The available spindle head with this machine is Gruppo Parpas‘ TVE vertical head with motor-spindle, a speed of up to 20,000 rpm, and a power of 55 kW.
The working area can be equipped with an index table, tailstock, and automatic fixtures to provide total flexibility for various work-holding applications.
For further details about the UNIKA BLADE machine, download the brochure or contact us.
