Key Details
Brand:
Gruppo Parpas
Product:
Unika Blisk
Machine Type:
Specialist Milling Machine
Automation:
Automation Compatible
Specification
X-axis travels
1,100 mm > 2,000 mm
Y-axis travels
600 mm > 800 mm
Z-axis travels
600 mm > 800 mm
Rapid feedrates
60,000 mm/min
Spindle
up to 55 Kw • 20,000 rpm
Spindle taper
HSK-63A • HSK-100A
Product Video
High-speed Moving Column Machine

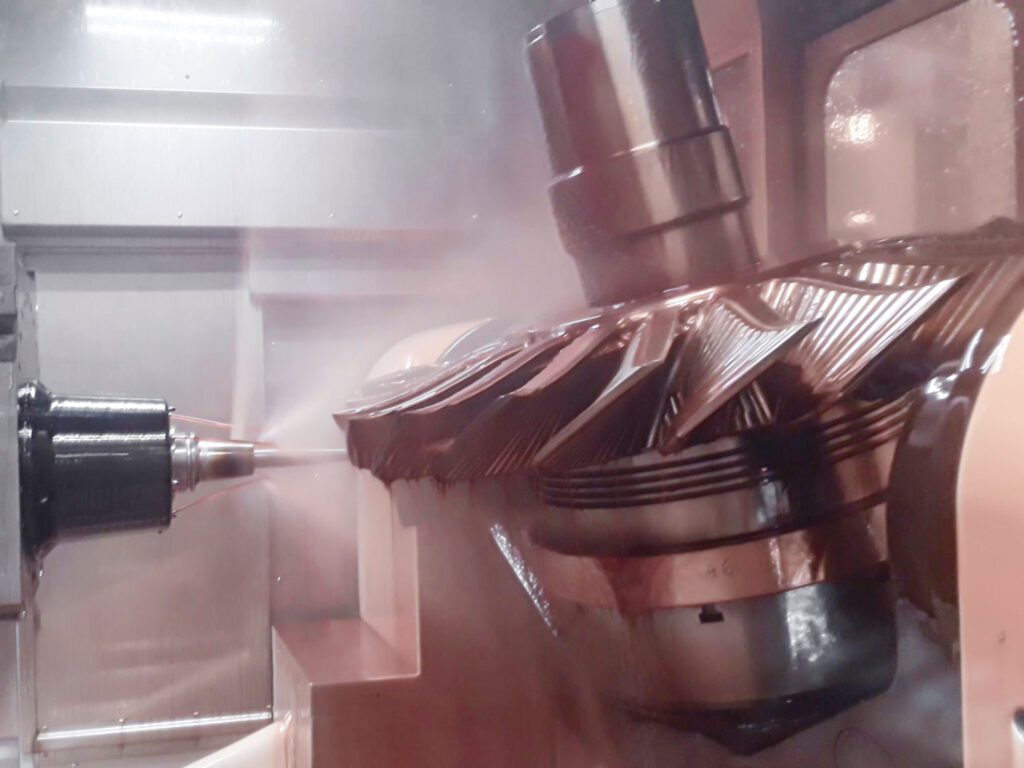

Its box-in-box structure and linear motors ensure unmatched rigidity, stability, and performance, even during 5-axis machining of tough materials like titanium.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information
Gruppo Parpas offers a fixed horizontal spindle head that can reach speeds up to 20,000 rpm and has a power of up to 55 kW. This powerful machine tool is designed for high-speed, efficient machining, making it ideal for a variety of industrial applications.

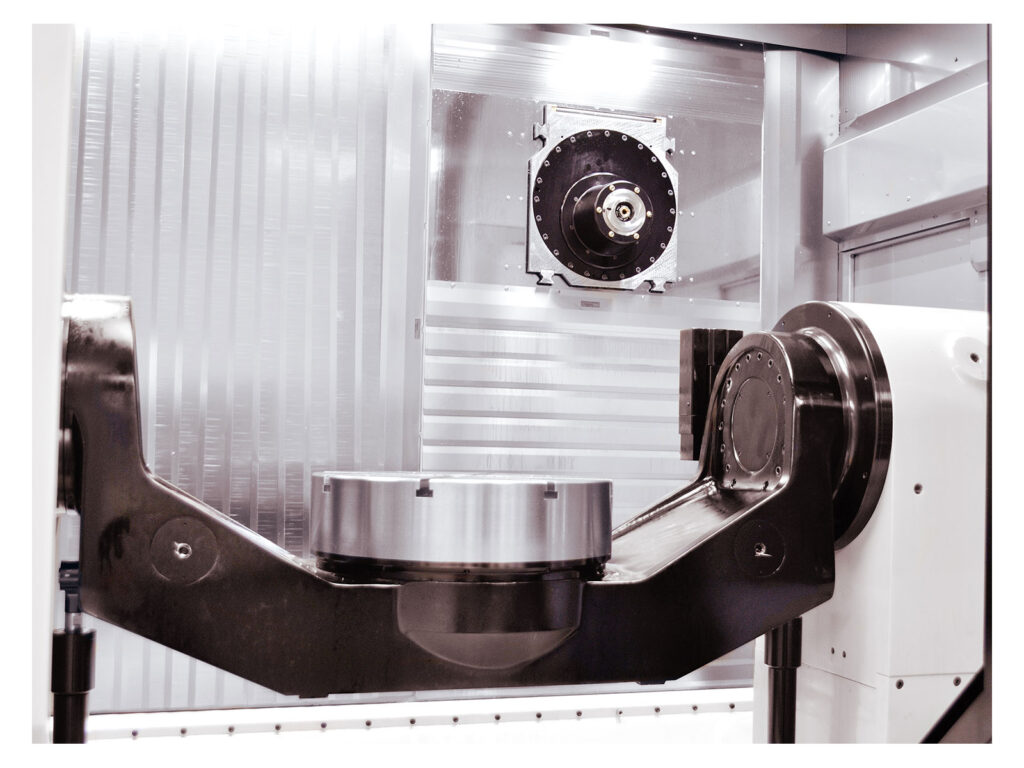

The working area can be equipped with an index table, tailstock, and automatic fixtures to provide total flexibility for various work-holding applications.
For further details about the UNIKA BLISK machine, download the brochure or contact us.
