Key Details
Brand:
Gruppo Parpas
Product:
Unika Mech
Machine Type:
Specialist Milling Machine
Automation:
Automation Compatible
Specification
X-axis travels
1,100 mm > 1,700 mm
Y-axis travels
600 mm > 800 mm
Z-axis travels
600 mm > 800 mm
Rapid feedrates
60,000 mm/min
Spindle
37 Kw > 55 Kw • 15,000 rpm > 36,000 rpm
Spindle taper
HSK-63A • HSK-100A • ISO40 • ISO50
Product Video

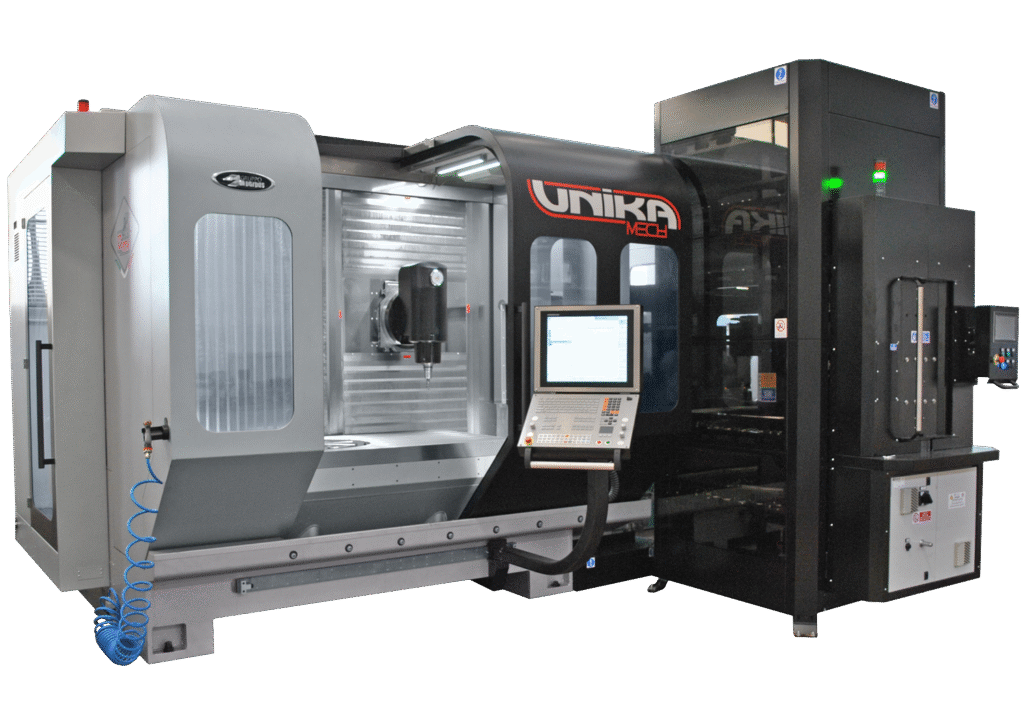

High-Speed Milling Machine
This machine is perfect for the aerospace industry, and Gruppo Parpas has many successful installations within this and other industries where a high degree of accuracy and complexity are required.
The water-cooled linear motors power the linear axes, making them run smoothly. The column, saddle, and ram are built big and symmetrical, which helps keep performance stable even when the temperature changes or during machining stress.
Additional Information
The available spindle head with this machine is Gruppo Parpas’ TVE vertical head with motor-spindle, a speed of up to 20,000 rpm, and a power of 55 kW.
This ram-type milling machine with a movable column and fixed table is perfect for manufacturers in aerospace, automotive, and general engineering.
For further details about the UNIKA MECH machine, download the brochure or contact us.
