Key Details
Brand:
Gruppo Parpas
Product:
XS
Machine Type:
Gantry Machine, Milling Machine
Automation:
Automation Compatible
Specification
X-axis travels
3,000 mm > 30,000 mm
Y-axis travels
1,500 mm > 2,200 mm
Z-axis travels
2,700 mm > 4,700 mm
Rapid feedrates
80,000 mm/min
Spindle
up to 100 kW • 1,000 N.m • 36,000 rpm
Spindle taper
HSK-63A • ISO40 • HSK-100A • ISO50
Product Video
High Speed & High Accuracy

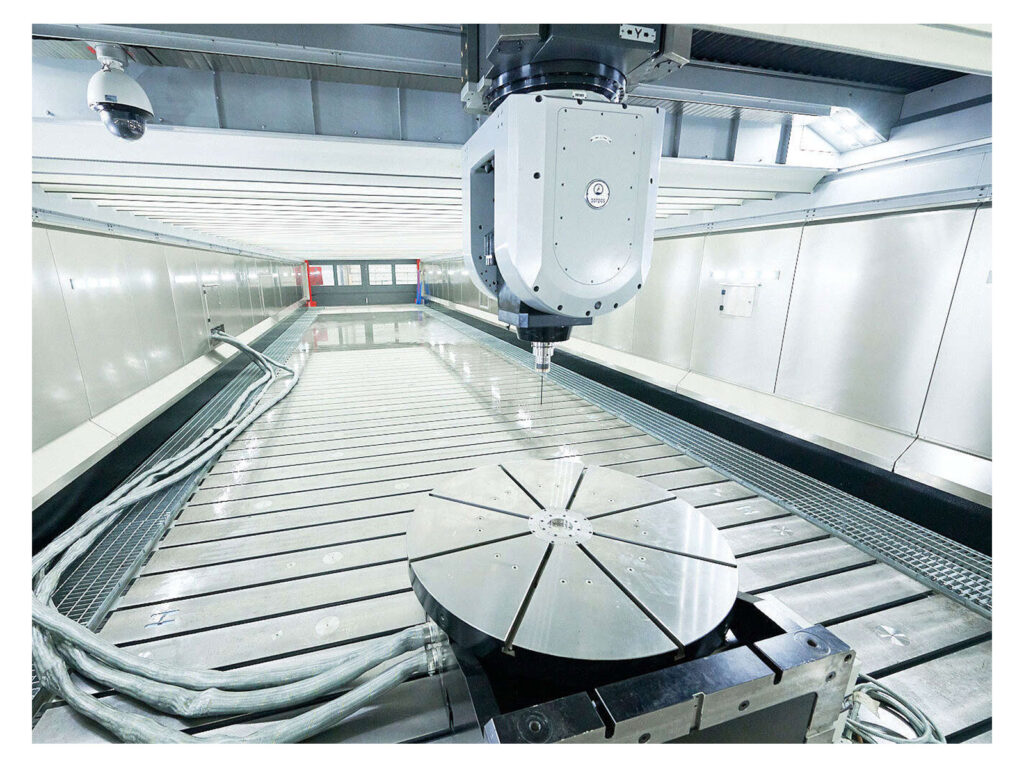

Gruppo Parpas’ XS is a high-performance 5-axis gantry machining centre, the result of more than 25 years of technological evolution, and has the perfect combination of high dynamics, flexibility, and unmatched accuracy.
There are also patented features on this machine, including TTM technology, a thermal control system for the structures, and a third guideway with flex-torsional stabiliser.
This machine gantry milling machine is perfect for manufacturers in aerospace, automotive, power generation, space and general engineering.
Additional Information

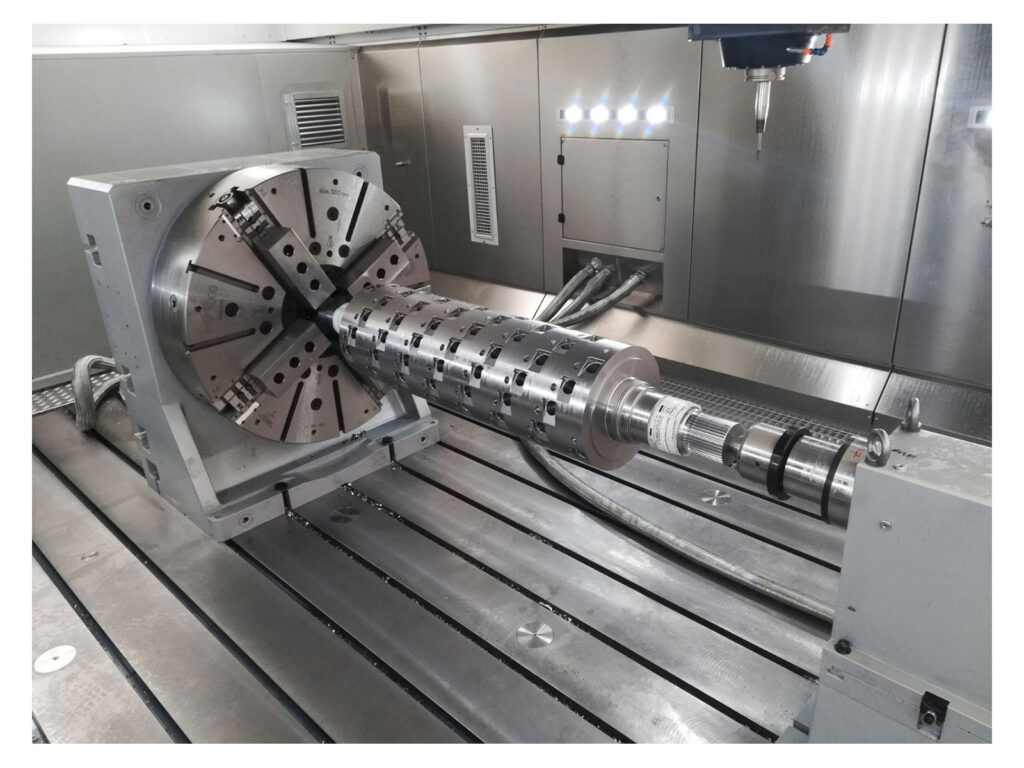

With all these features, the integration of turning tables or pallet changing systems makes the XS extremely efficient and flexible.
The available spindle heads on this machine are TTOV, TET, TWM, TO, TMT, TPM, AVOP 100 and TOE.
For further details about the AERO machine, download the brochure or contact us.
