Key Details
Brand:
JTEKT
Product:
FH5000 Series
Machine Type:
Horizontal Machining Centre
Automation:
Automation Compatible
Specification
Table size
500 mm
Max. table load
1,000 kg
X-axis travels
> 900 mm
Y-axis travels
800 mm
Z-axis travels
800 mm
Spindle speeds
15,000 rpm
ATC
45 > 320 tools
Product Video

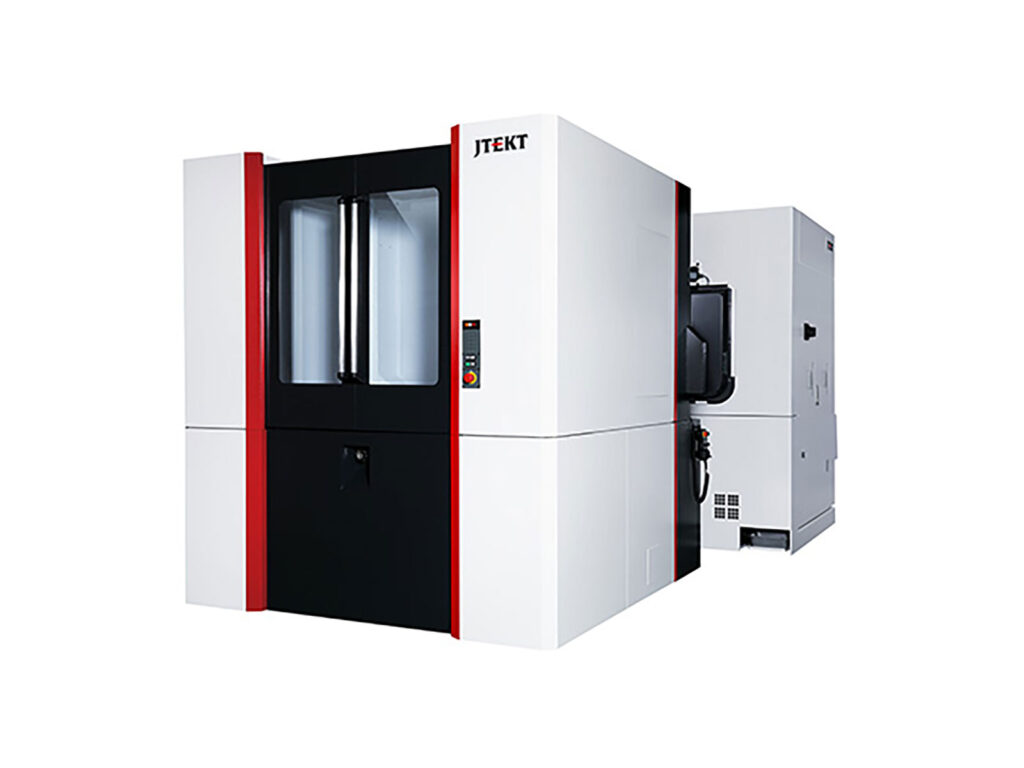

Horizontal Machining Centre
Even in the rare chance that a failure does occur, a replacement spindle cartridge that has been checked at JTEKT for operation and quality can be installed in its place, keeping restoration time down to a minimum.
The separate spindle taper makes individual cap replacement possible as it is integrated with the taper, even in the event of taper damage caused by accidental interference.
Additional Information
JTEKT‘s casting technology has been refined throughout their history, they have developed high-quality machining centres. In order to maximise the mechanical performance, JTEKT manufacture large and complex-shaped beds, columns and tables in-house.
Download the FH5000 SERIES brochure for further details or contact our technical team.
