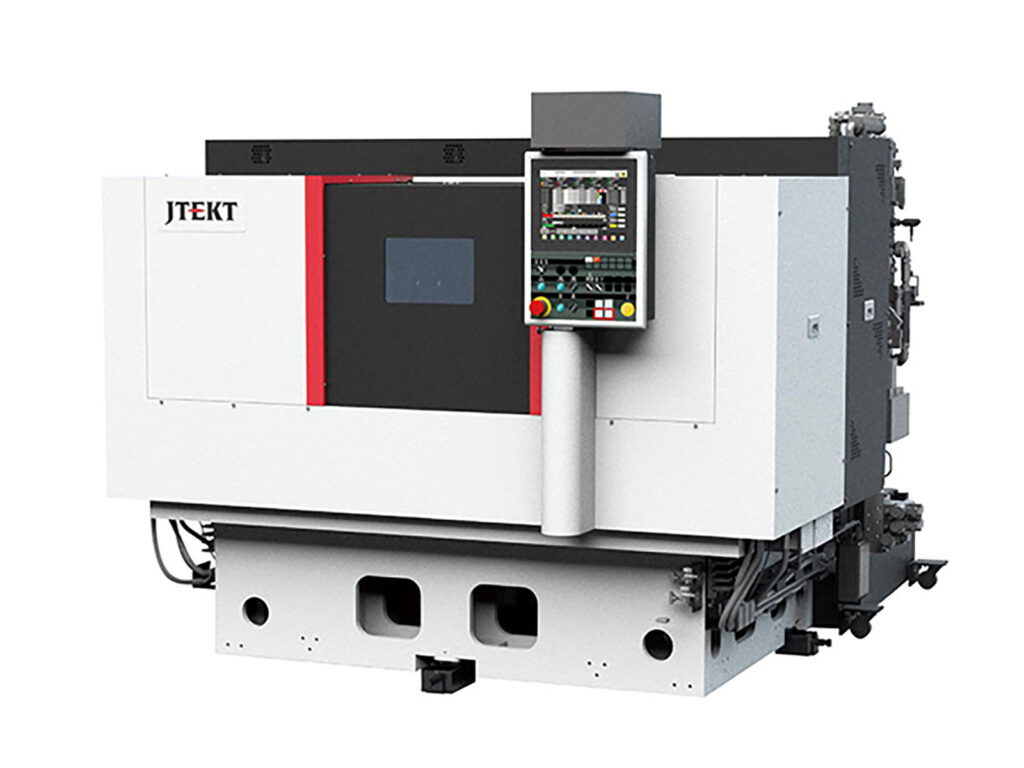

Key Details
Brand:
JTEKT
Product:
G1 Series
Machine Type:
Cylindrical Grinding Machine
Automation:
Automation Compatible
Specification
Distance between centres
250 > 500 mm
Swing over table
⌀ 200 mm > ⌀ 320 mm
Max. grinding diameter
⌀ 60 mm > ⌀ 150 mm
Load between centres
20 kg
Wheelhead rapid feedrate
> ⌀ 40 m/min
Wheelhead traverse rapid feedrate
⌀ 30 m/min
Control
FANUC 0i-TF Plus
Product Video
Overwhelming Space Productivity
Despite accommodating workpieces up to 500 mm, it is extremely compact with a width of 1,900 mm and a depth of 2,900 mm.
Compared to conventional machines, it reduces the installation area by up to 39%, contributing to more efficient use of factory space and shorter walking distances for operators. Improved productivity in mixed-flow production with a setup-less function.
Additional Information
Measures the surface roughness of workpieces in the machine using a unique algorithm, preventing defective products outflow and reducing the need for quality checks.
Grinding wheel surface condition awareness extends grinding wheel correction intervals and reduces tooling costs by up to 30%.
Download the G1 SERIES brochure for further details or contact our technical team.
