Key Details
Brand:
JTEKT
Product:
GC20S
Machine Type:
Cylindrical Grinding Machine
Automation:
Automation Compatible
Specification
Swing over bed
⌀ 320 mm
Distance between centres
500 mm
Grinding diameter
⌀ 10 mm > ⌀ 300 mm
Wheel O.D.
⌀ 350 mm
Wheel surface speed
120 m/s
Product Video
Increased productivity per space owing to a size reduction of equipment
The size reduction of the main equipment and the effective placement of space has realised space savings.
In addition, the transfer height of 1,500 mm has reduced the loading/unloading stroke, and improved visibility.
Additional Information
Quick-response wheelhead feed mechanism adopting small and light-weighted wheelhead, static pressure slide way and linear motor drive achieves the wheelhead feed having almost free from lost-motion and backlash.
Static pressure slides feature STAT CONTROL to improve the wheelhead’s position retention against external forces. The newly developed high-response servo system and high-response wheelhead feeding improve the accuracy and quality of the cam machined surface.
Download the GC20S brochure for further details or contact our technical team.
Service & Support from Leader CNC
Your one-stop source for engineering solutions
Related Products
-
Pre-Order
JTEKT

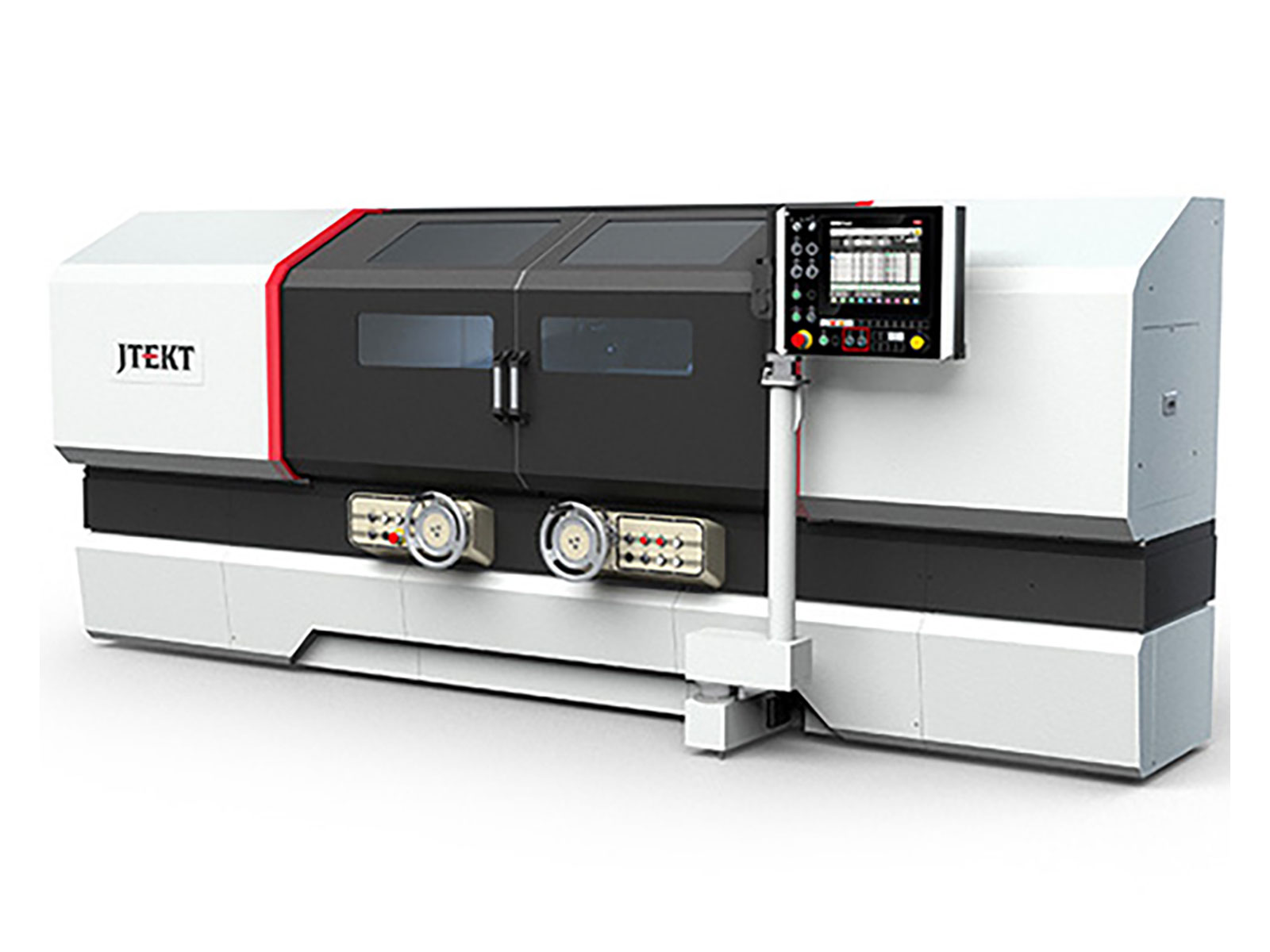

G3 Series
-
Pre-Order
JTEKT
TG4
-
Pre-Order
JTEKT

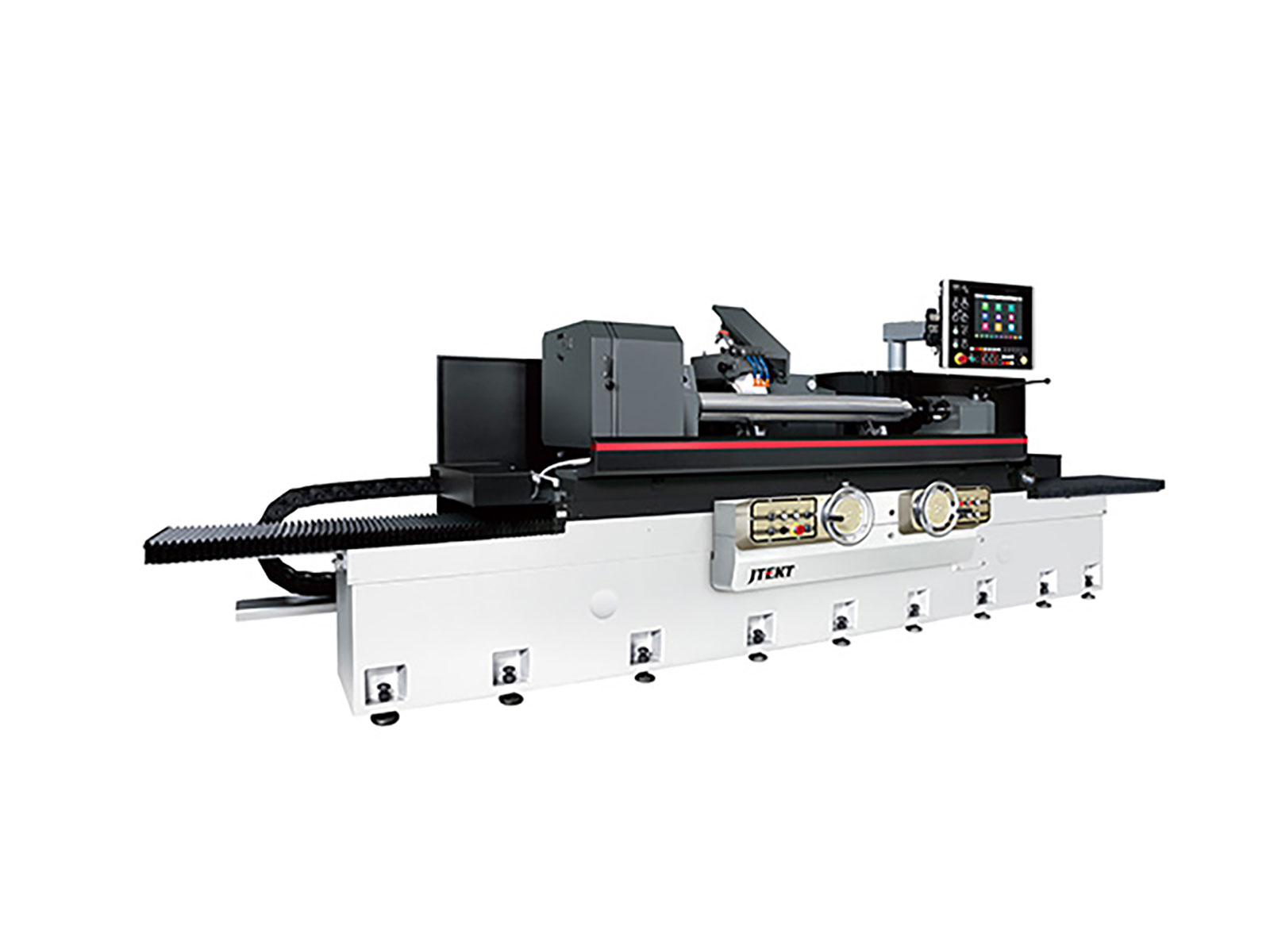

GE6i
-
Pre-Order
JTEKT
e300Gi
-
Pre-Order
JTEKT
G1 Series
-
Pre-Order
JTEKT

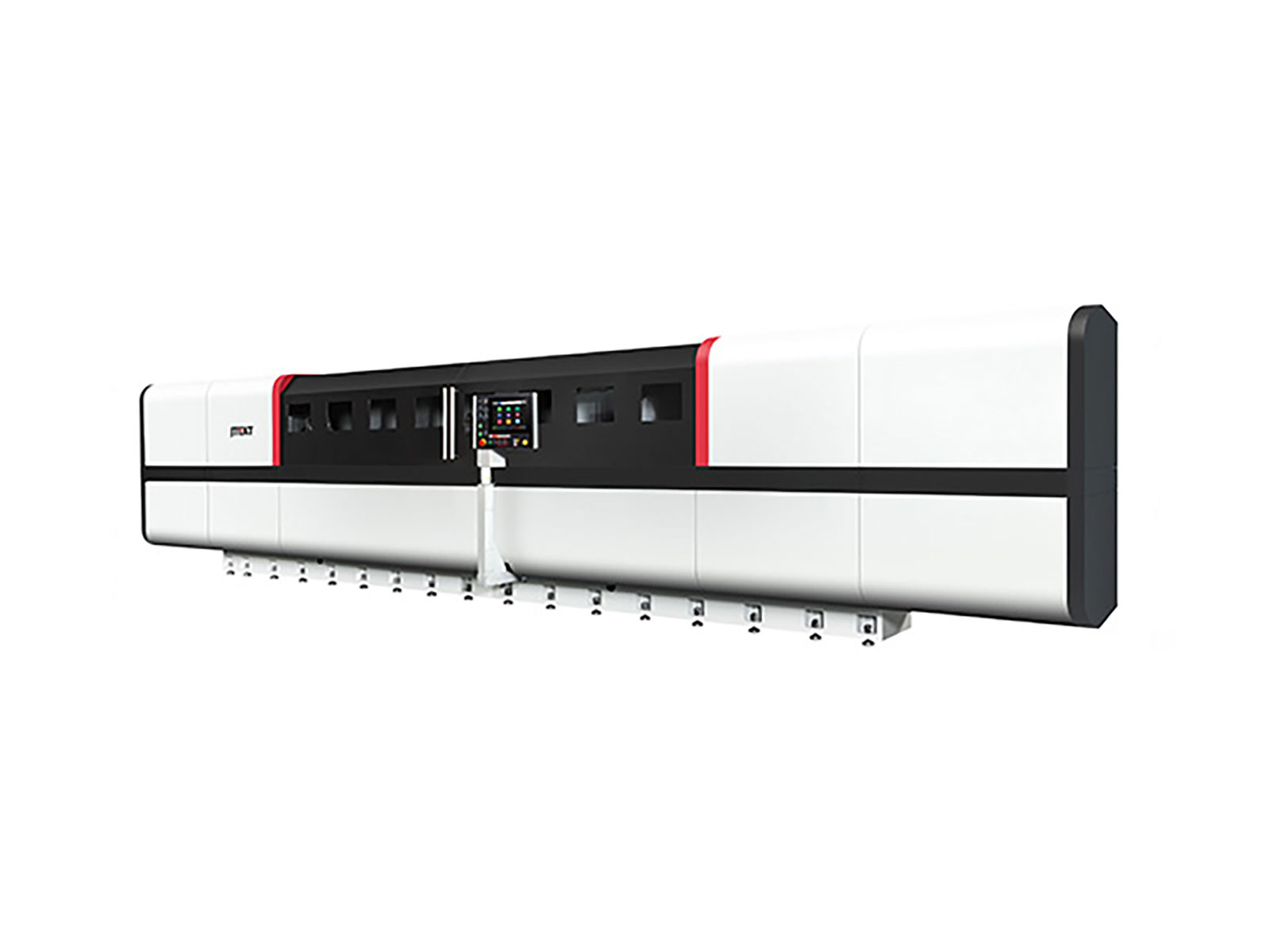

SelectG7
-
Pre-Order
JTEKT

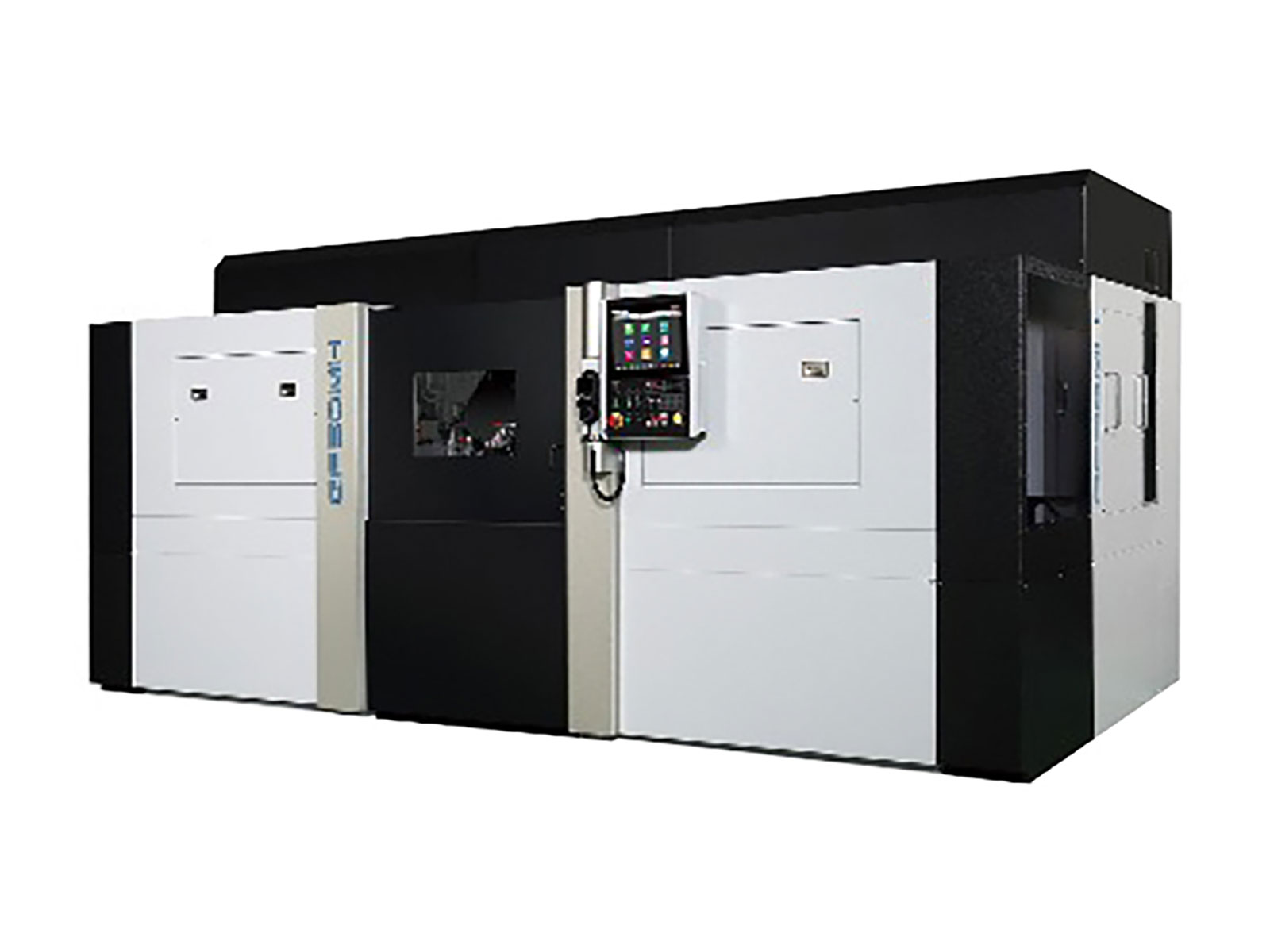

GF50MS/MH
-
Pre-Order
JTEKT

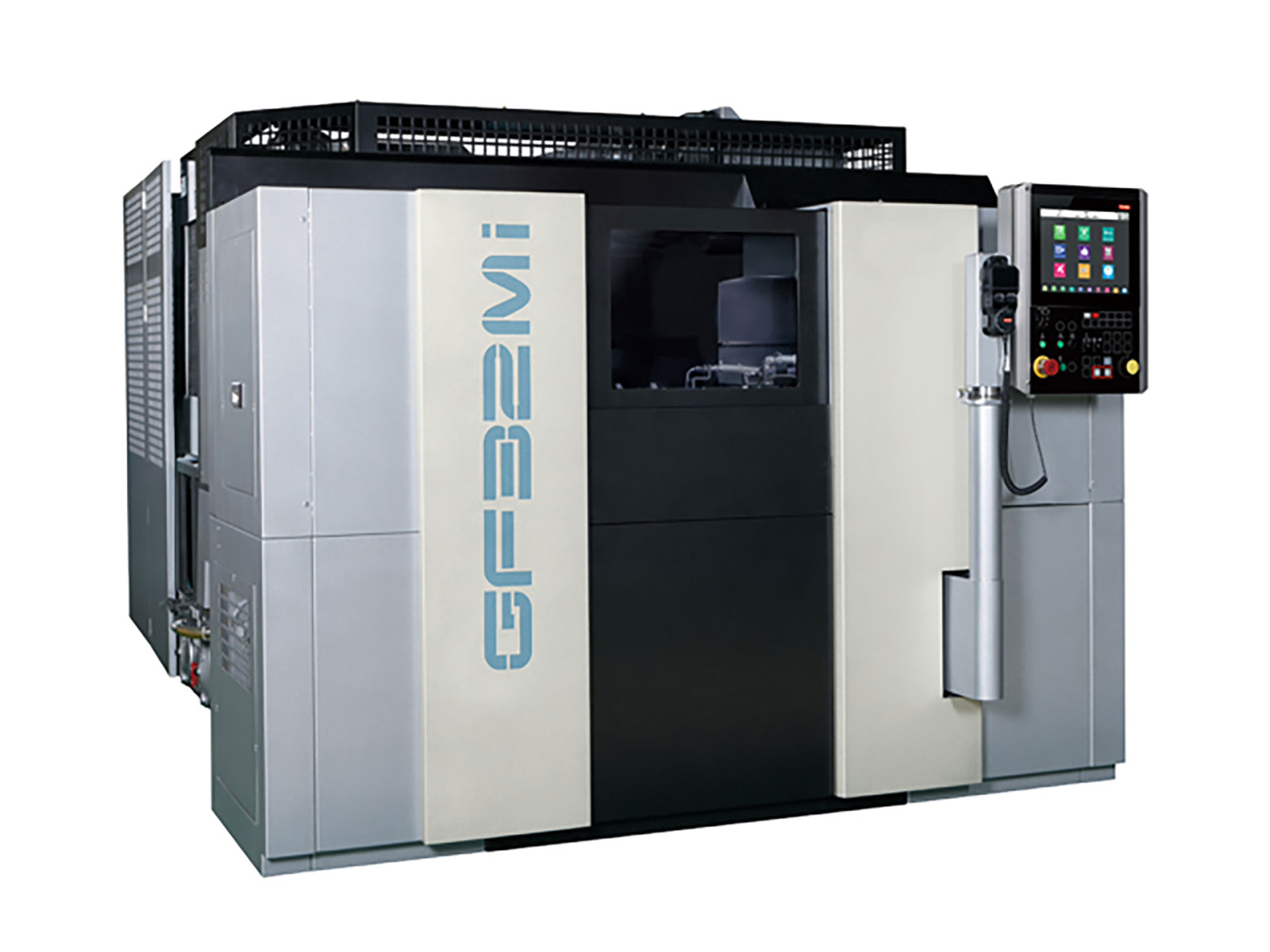

GF32Mi
-
Pre-Order
JTEKT

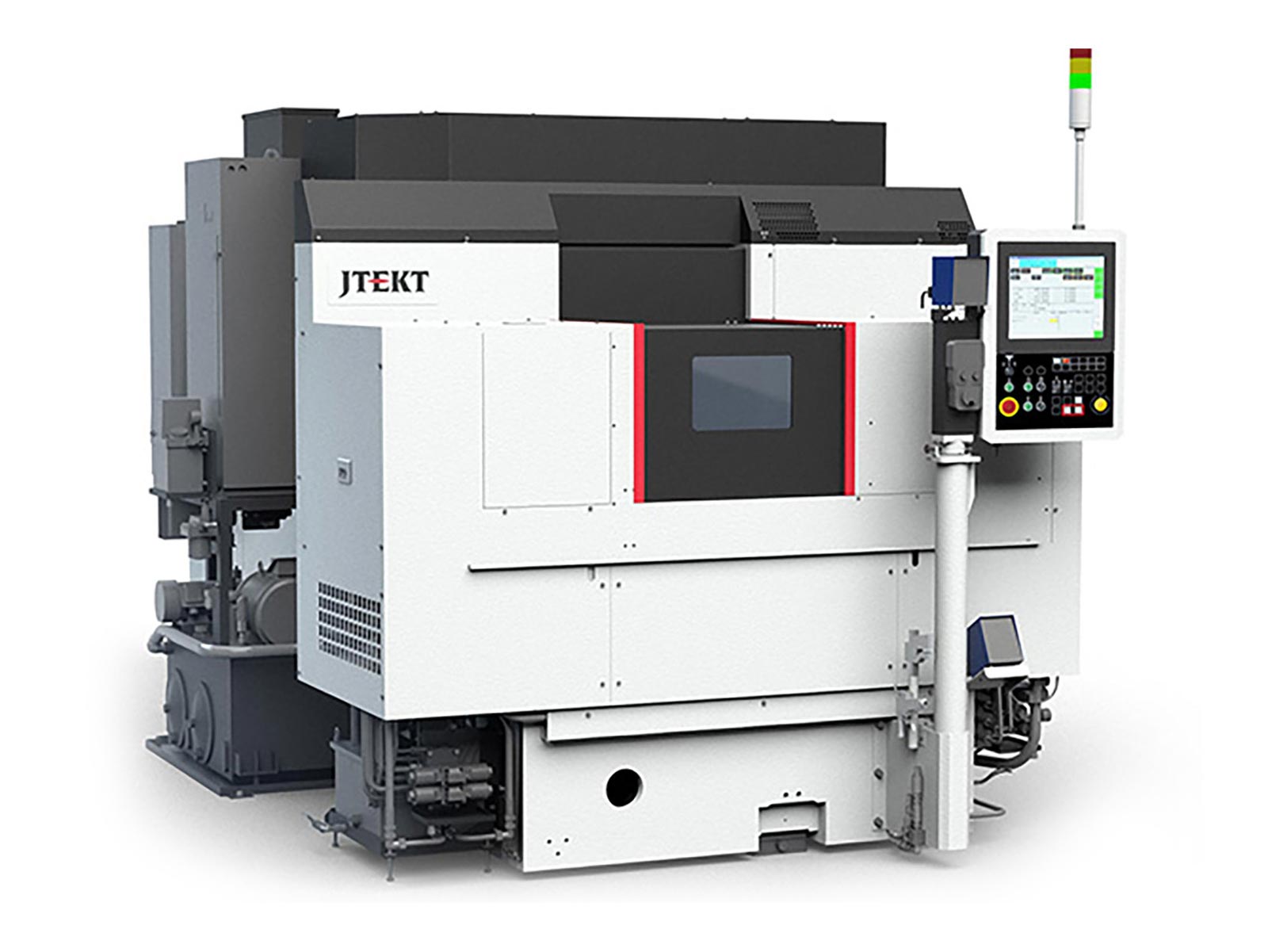

GL32S
-
Pre-Order
JTEKT

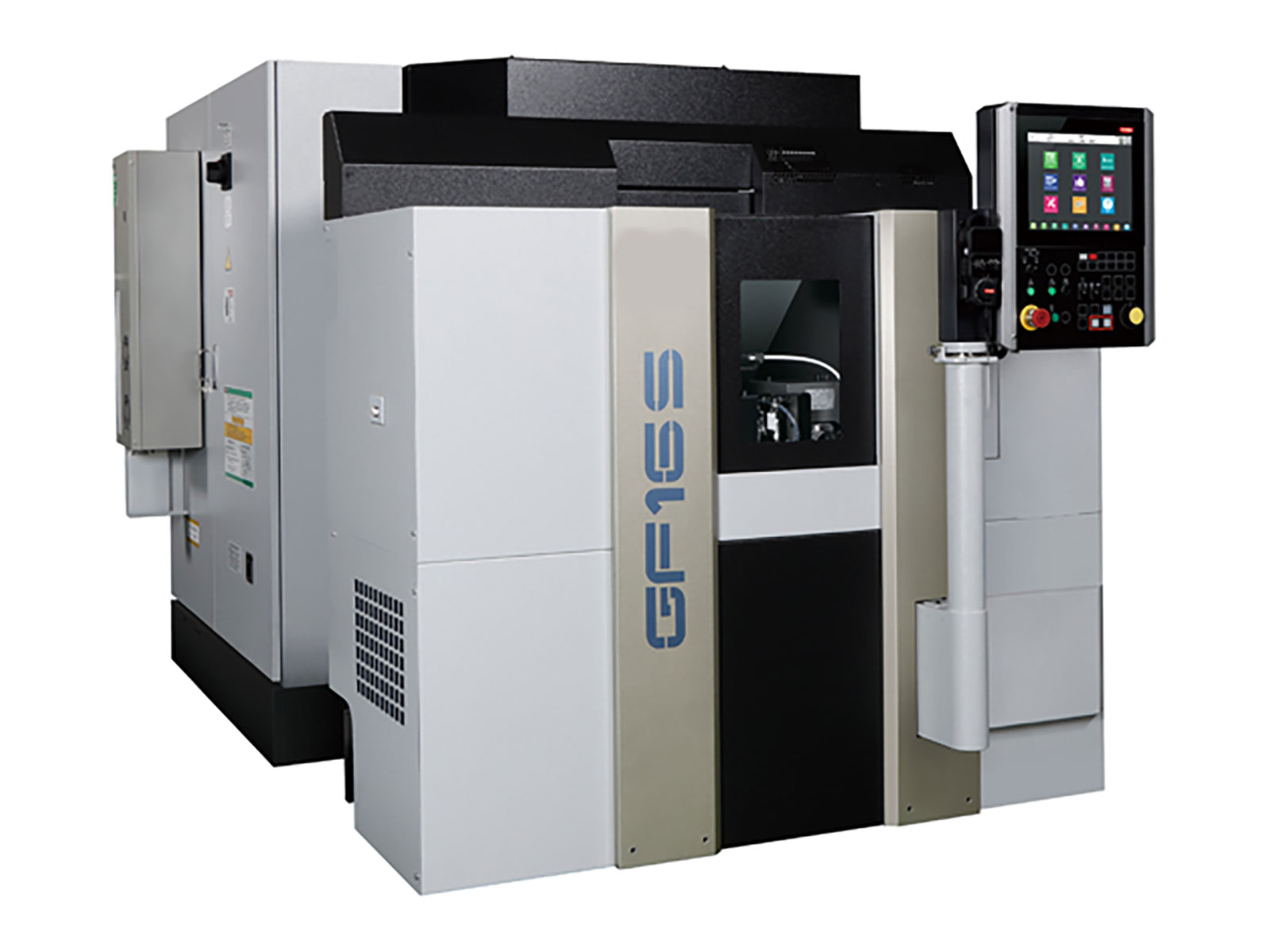

GF16S
