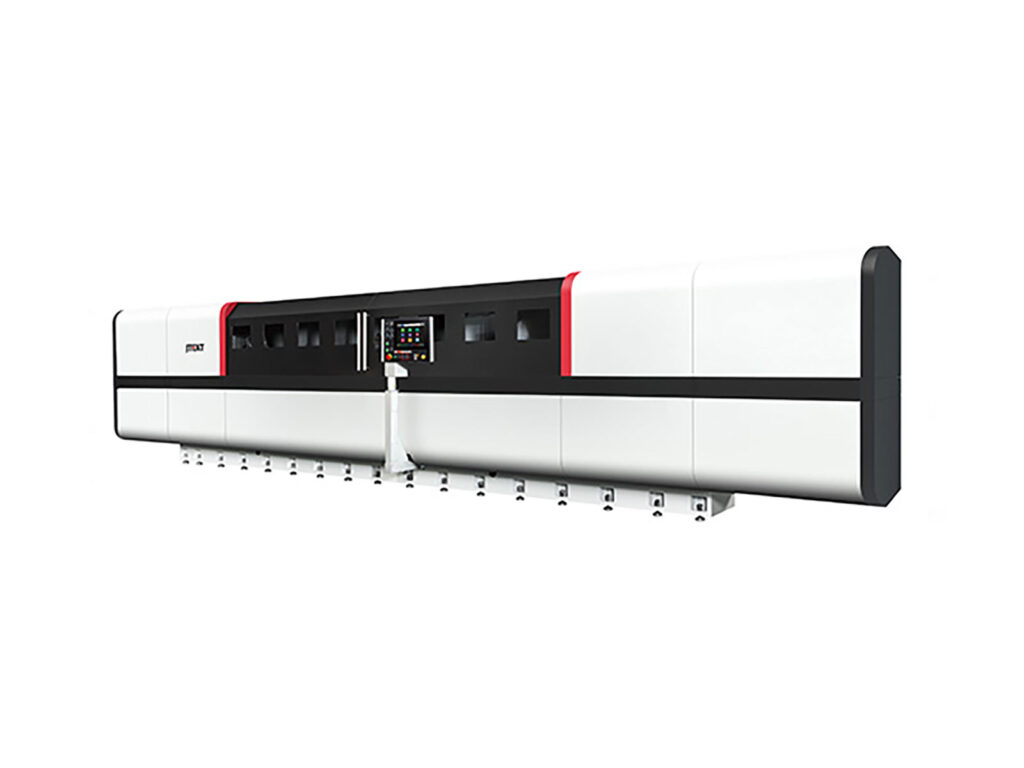

Key Details
Brand:
JTEKT
Product:
SelectG7
Machine Type:
Cylindrical Grinding Machine
Automation:
Automation Compatible
Specification
Distance between centres
1,000 mm > 4,000 mm
Swing over table
⌀ 660 mm
Max. grinding diameter
⌀ 650 mm
Grinding wheel OD
⌀ 760 mm
Wheelhead feedrate speed
⌀ 15 m/min
Product Video

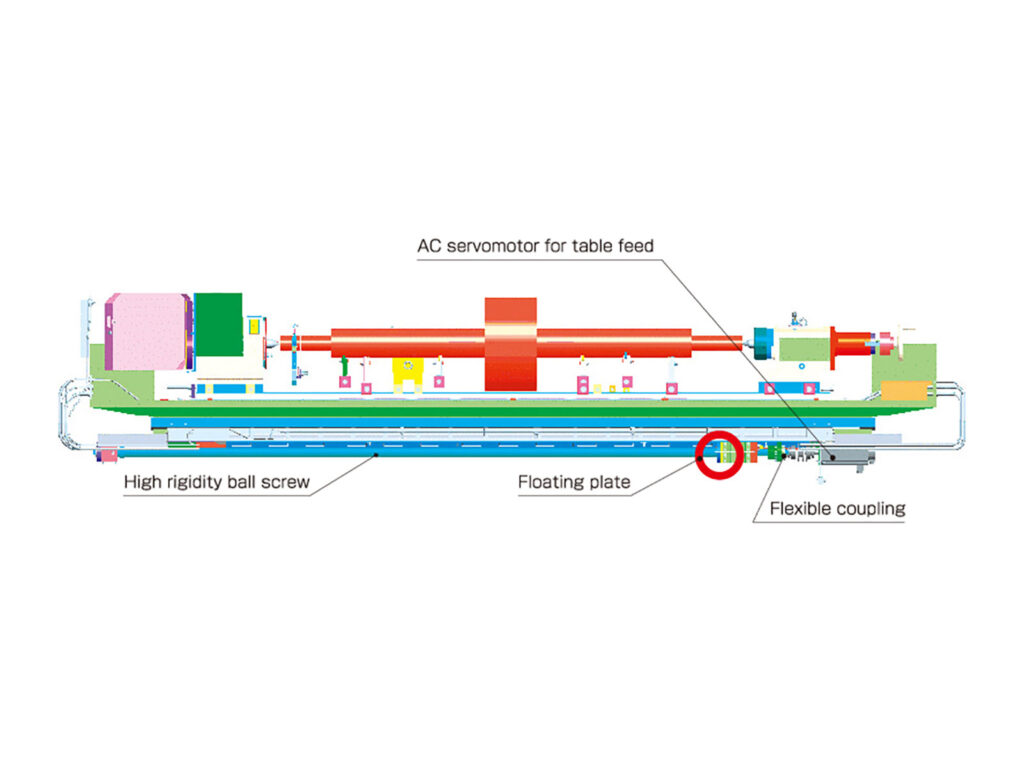

Table feed mechanism eliminating ball screw waviness
For the sake of making stable high accuracy grinding possible over a long period of time, a JTEKT original table feed mechanism is adopted.
Straightness and surface texture is improved by notaffecting the table with ball screw waviness.
Additional Information

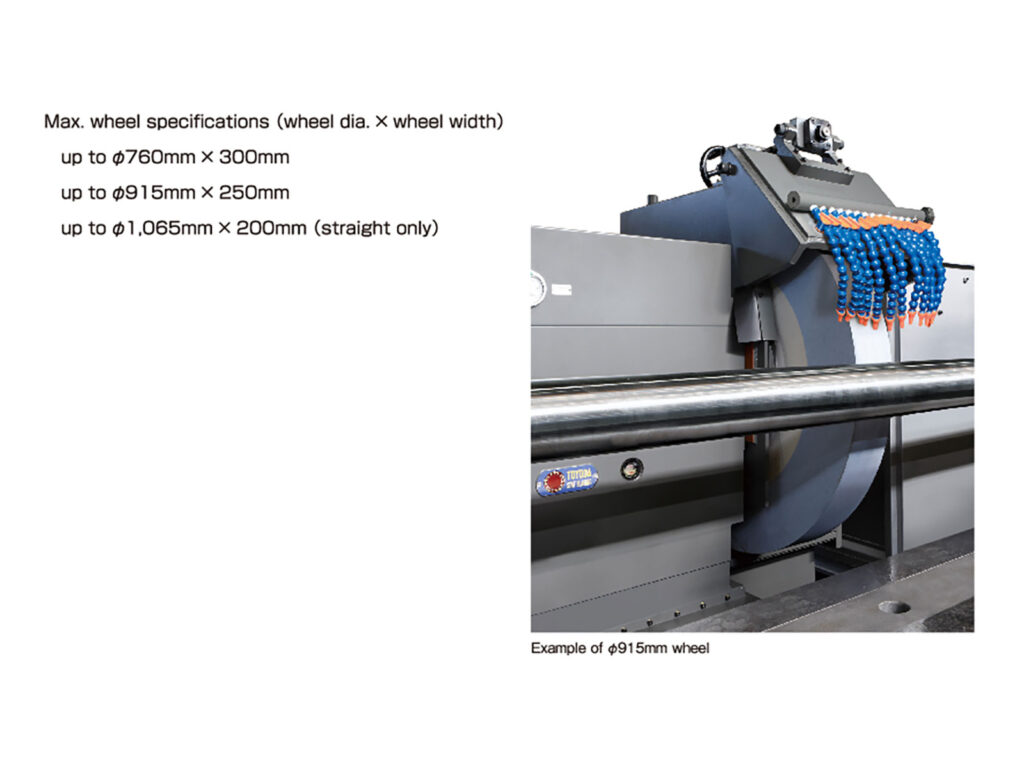

We have prepared a wheel diameter of ⌀1,065mm to make the grinding of workpieces with significant swing possible.By using a wheel spindle with an even higher rigidity, machining with a wheel width of 300mm has been made possible.
Download the SELECTG7 brochure for further details or contact our technical team.
