Key Details
Brand:
Shibaura Machine
Product:
BM Series
Machine Type:
Horizontal Machining Centre
Automation:
Automation Compatible
Specification
X-axis stroke
1,800 mm
Y-axis stroke
1,600 mm
Z-axis stroke
1,600 mm
W-axis stroke
300 mm

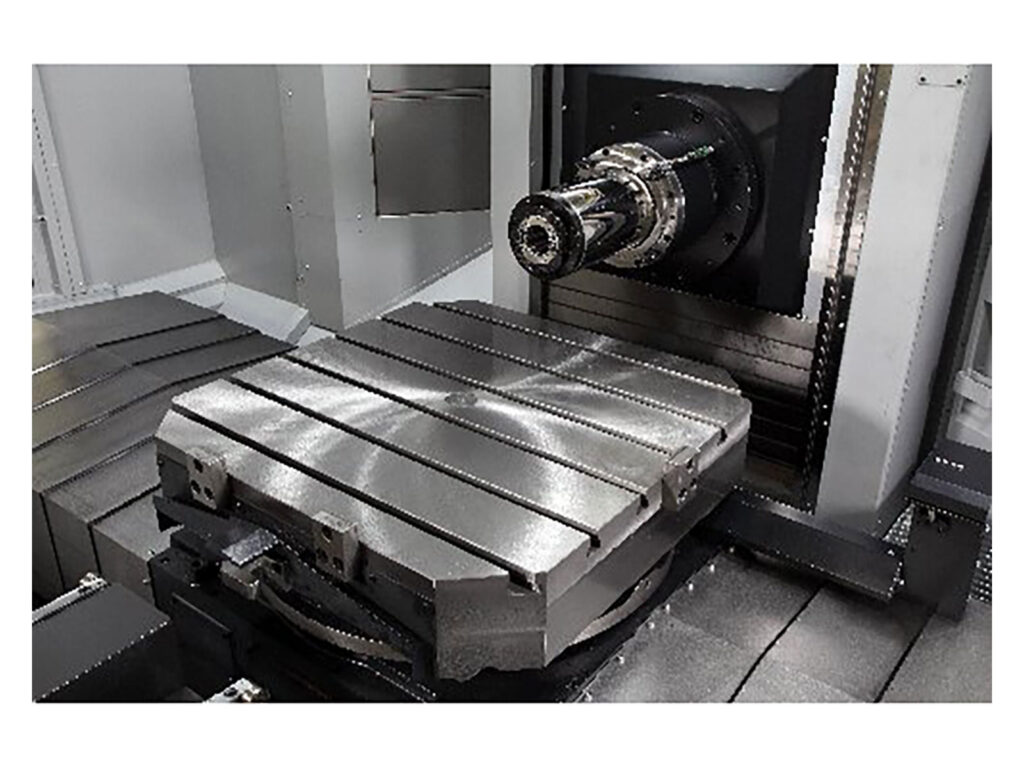

Pallet size
1,000 mm x 1,000 mm
Max. load capacity
3,000 kg
ATC
60 tools
Product Video
Higher Productivity & Performance

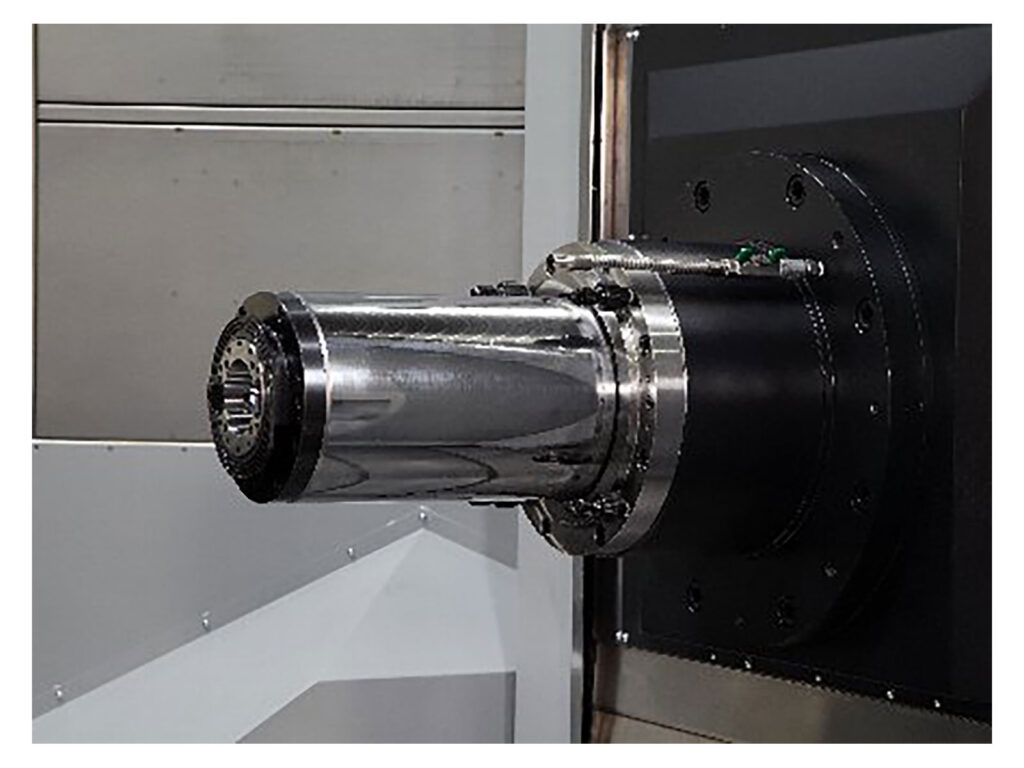

The BM Series horizontal machining centre is fitted with a Ø200mm W-axis quill for improved reach and has a BBT50 face/taper contact spindle running at 6000rpm, developing 1600N.m of torque using a 30kW motor.
The spindle is cooled using a chiller unit, and a high-power spindle is available for heavier cutting.
Additional Information
The 35,000kg machine mass is indicative of its robust and rigid structure.
As a result of careful structural design based on over 40 years of experience in building machining centres, Shibaura Machine has kept the BM size down to 5.5M wide and 8M deep, resulting in a low 800kg/M² floor loading.
Download the BM Series brochure for further details or contact our technical team.
