Key Details
Brand:
Shibaura Machine
Product:
BSF Series
Machine Type:
Horizontal Borer/Milling Machine
Automation:
Automation Compatible
Specification
Spindle diameter
⌀ 130 mm
Quill diameter
⌀ 360 mm
X-axis stroke
4,500 mm > 12,000 mm
Y-axis stroke
2,500 mm > 3,500 mm
Z-axis stroke
450 mm
W-axis stroke
1,000 mm
ATC
60 tools
Product Video
Powerful Horizontal Boring and Milling Machine

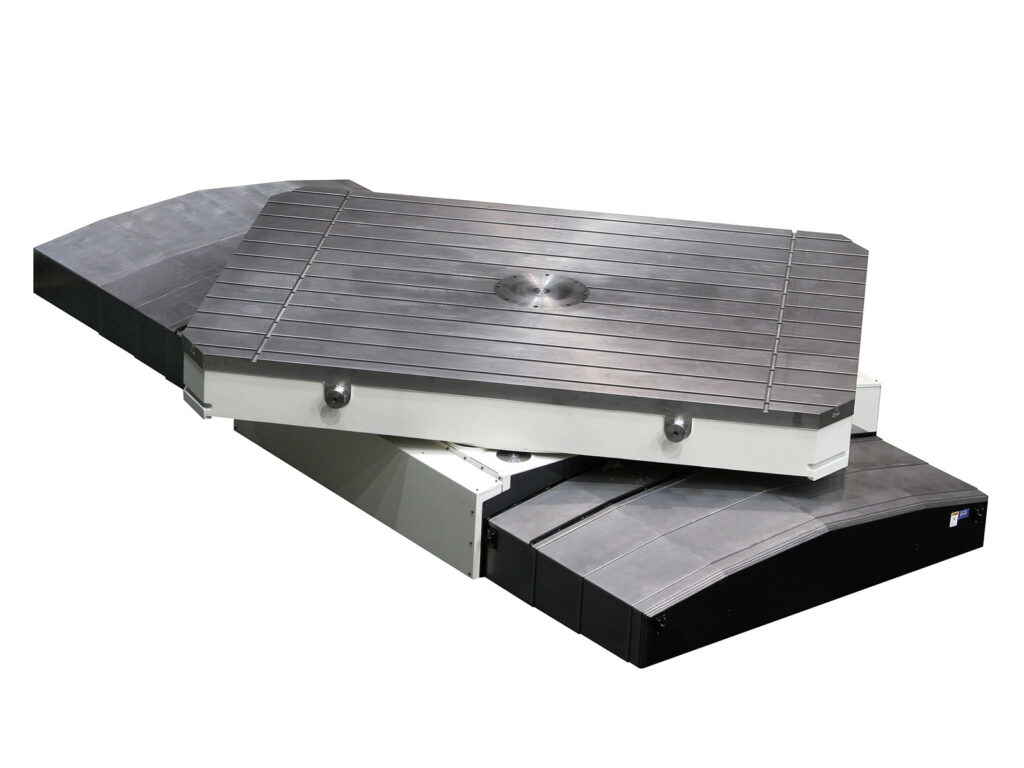

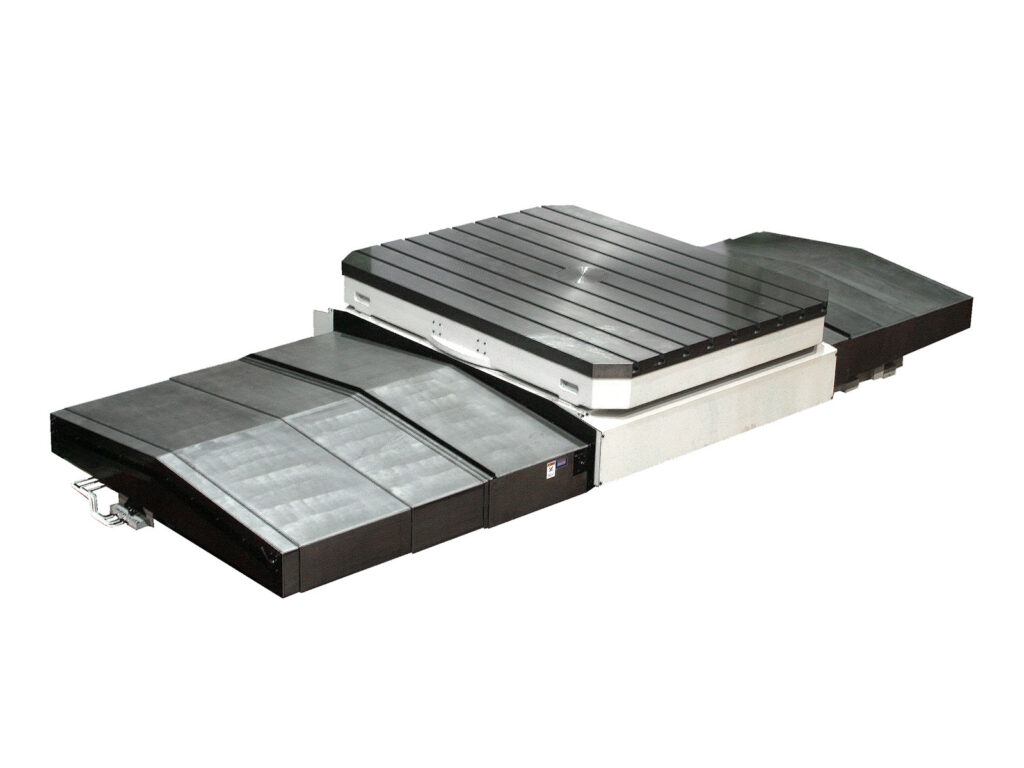

High rapid and feed traverse rates, coupled with a choice of spindle speeds, also help in optimising machine performance. For work loading, a selection or combination of floor plates, moving rotary tables and pallet changers is available.
Independent heavy duty horizontal and vertical indexers can also be fitted, working in conjunction with the machine through the CNC control to present the workpiece in any angle and position for machining.
Additional Information
The power, rigidity and machining performance of the BSF-150C with its square ram, capable of handling loads up to 130 tons, makes it suitable for use in industries such as power generation, aerospace, construction and marine, where high accuracy and long term reliability are paramount.
Shibaura Machine is a leading global supplier of high-precision machine tools for the semiconductor, shipbuilding, aircraft, and automobile industries.
Download the BF Series brochure for further details or contact our technical team.
