Key Details
Brand:
Shibaura Machine
Product:
BTD Series
Machine Type:
Horizontal Borer/Milling Machine
Automation:
Automation Compatible, Pallet Systems
Specification
Spindle diameter
⌀ 110 mm > ⌀ 200 mm
X-axis stroke
1,500 mm > 3,000 mm
Y-axis stroke
1,200 mm > 2,300 mm
Z-axis stroke
700 mm > 1,600 mm
Table size
1,000 x 1,200 mm > 1,800 x 2,200 mm
Max. load
4,000 kg > 12,000 kg
Product Video

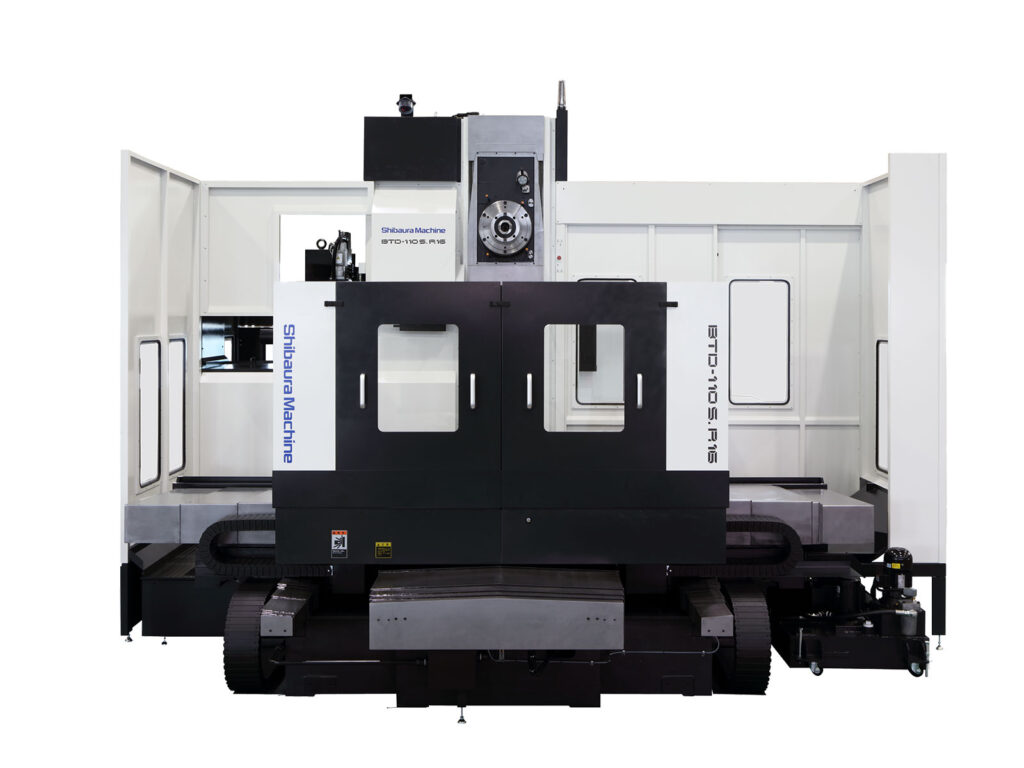

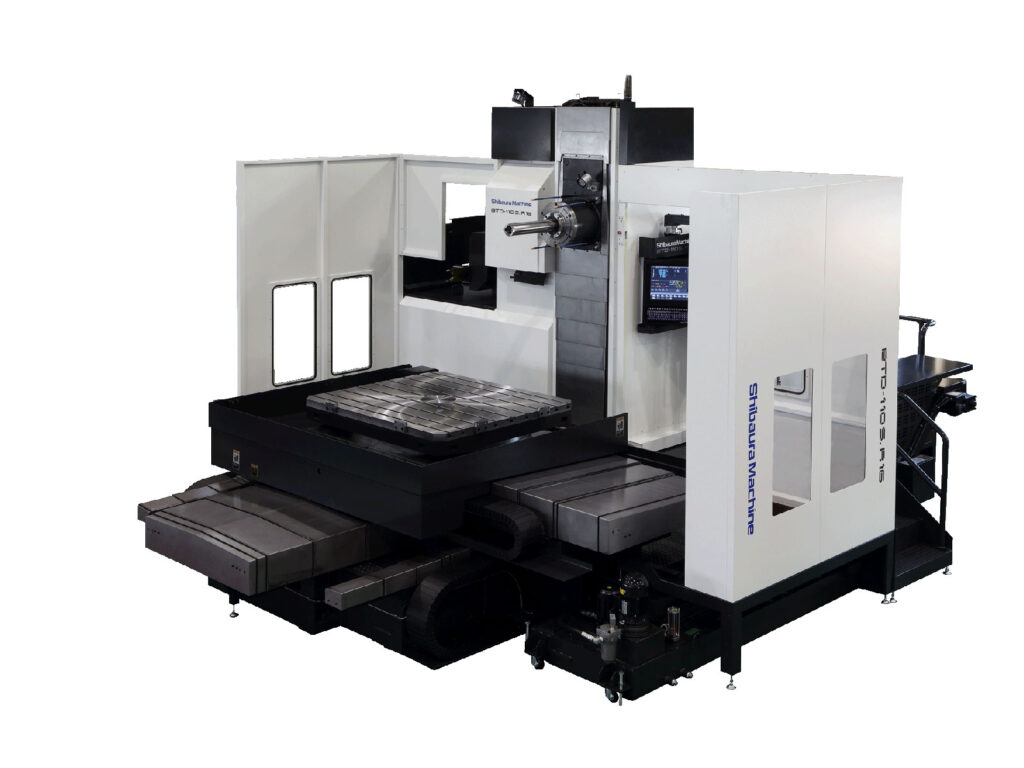

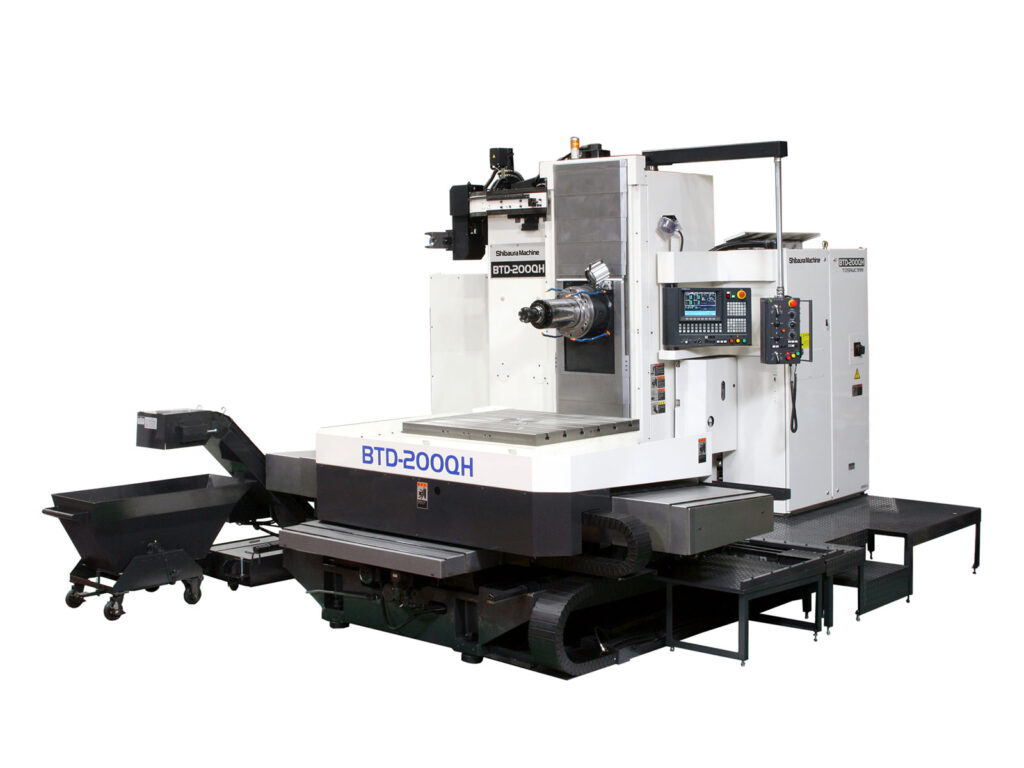

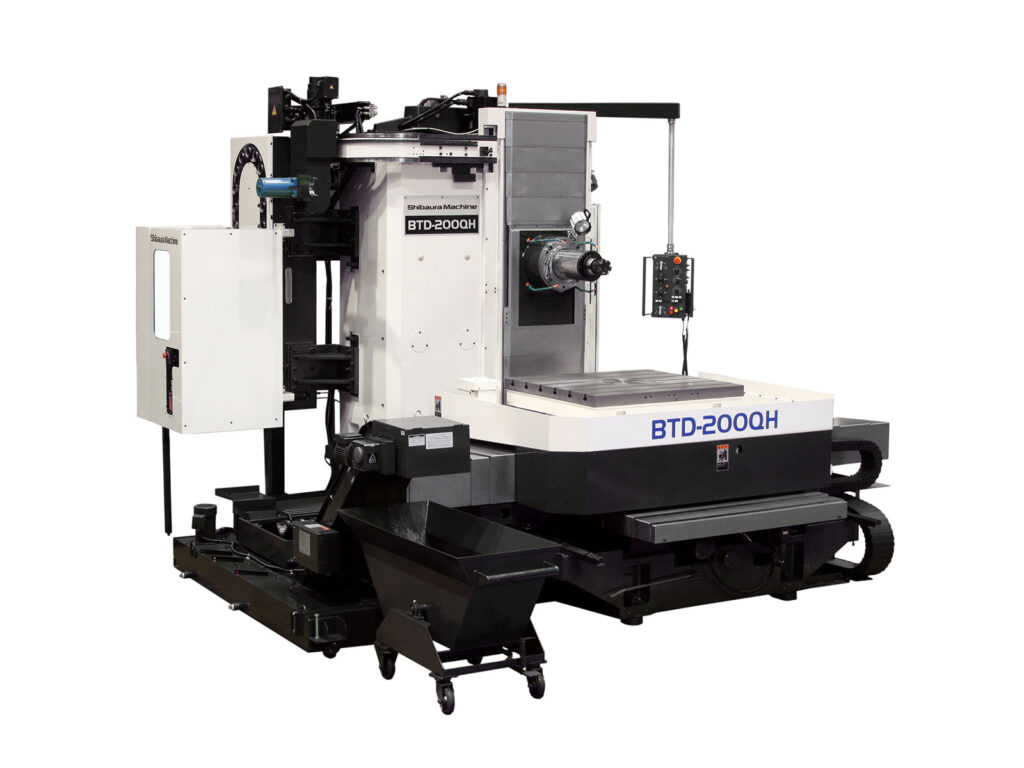

Powerful Horizontal Boring and Milling Machines
The BTD Series horizontal boring machines feature a rotary B axis table and moving column, allowing the spindle to access all points within the work envelope, offering greater adaptability than horizontal machining centres.
These machines offer a rotary milling function. Cylindrical and end surfaces can be machined continuously by the B-axis continuous indexing function, eliminating the need for an optional independent-type NC rotary table. Cylindrical surface machining is easily programmed in manual programming by the cylindrical interpolation function.
75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75 words 75.
Additional Information
Other features of these machines include: through-coolant spindle, rotary milling function, portable handwheel feed unit, high-speed spindles, automatic measuring RENISHAW probe, and an option of having an automatic pallet changer.
Shibaura Machine is a leading global supplier of high-precision machine tools for the semiconductor, shipbuilding, aircraft, and automobile industries.
Download the BTD Series brochure for further details or contact our technical team.
