Key Details
Brand:
Shibaura Machine
Product:
BTH Series
Machine Type:
Horizontal Borer/Milling Machine
Automation:
Automation Compatible
Specification
Spindle diameter
⌀ 110 mm > ⌀ 150 mm
X-axis stroke
2,500 mm > 4,000 mm
Y-axis stroke
2,000 mm > 3,500 mm
Z-axis stroke
1,500 mm > 2,200 mm

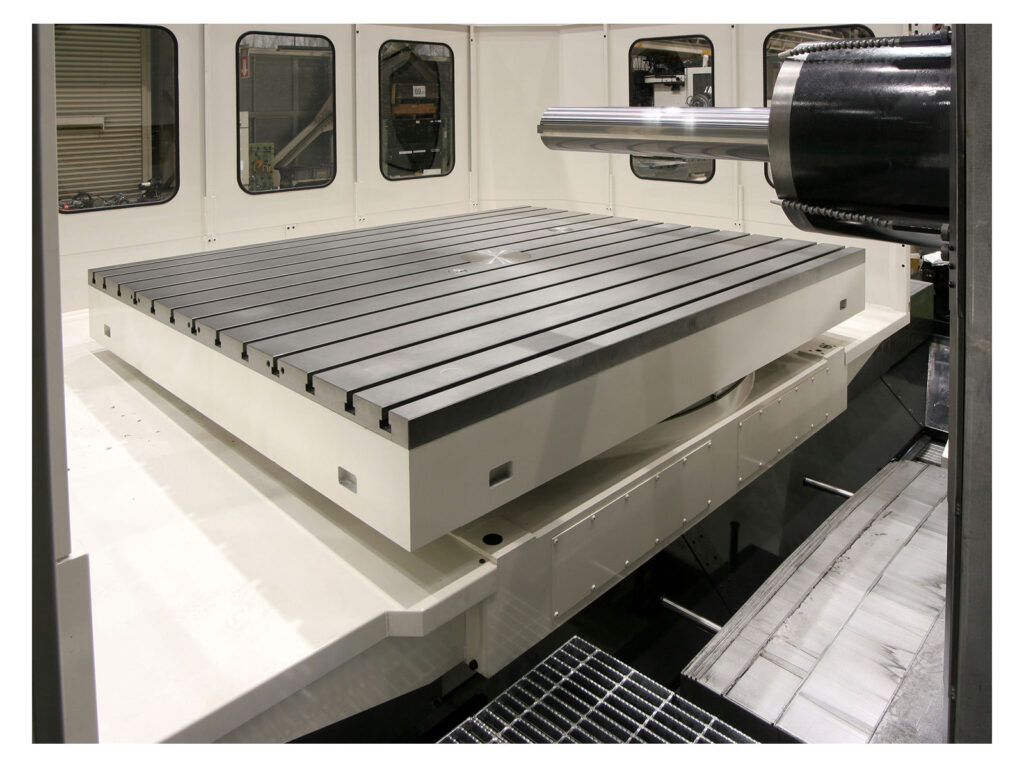

Table size
1,400 x 1,800 mm > 2,000 x 3,500 mm
Max. load
10,000 kg > 25,000 kg
Product Video

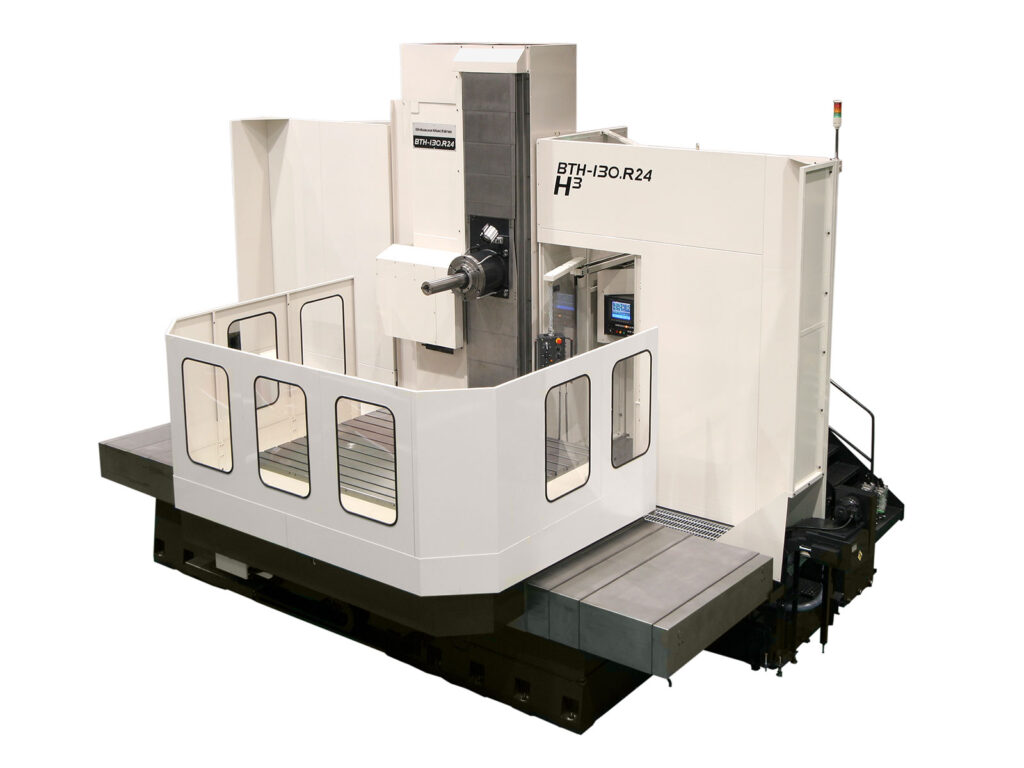

Powerful Horizontal Boring and Milling Machines
The BTH Series has been developed to combine the advantages of a horizontal boring machine with the flexibility of a machining centre.
These machines offer a rotary milling function. Cylindrical and end surfaces can be machined continuously by the B-axis continuous indexing function, eliminating the need for an optional independent-type NC rotary table. Cylindrical surface machining is easily programmed in manual programming by the cylindrical interpolation function.


Additional Information
Other features of these machines include: through-coolant spindle, rotary milling function, portable handwheel feed unit, high-speed spindles, automatic measuring RENISHAW probe, and an option of having an automatic pallet changer.
Shibaura Machine is a leading global supplier of high-precision machine tools for the semiconductor, shipbuilding, aircraft, and automobile industries.
Download the BTH Series brochure for further details or contact our technical team.
