Key Details
Brand:
Shibaura Machine
Product:
MP-(U) Series
Machine Type:
Gantry Machine, 5-axis, Milling Machine, Double Column Machining Centre
Automation:
Automation Compatible
Specification
X-axis stroke
2,500 mm
Y-axis stroke
3,400 mm
Z-axis stroke
800 mm
W-axis stroke
1,000 mm
Table diameter
⌀ 2,000 mm
Max. table load
10,000 kg
Product Video

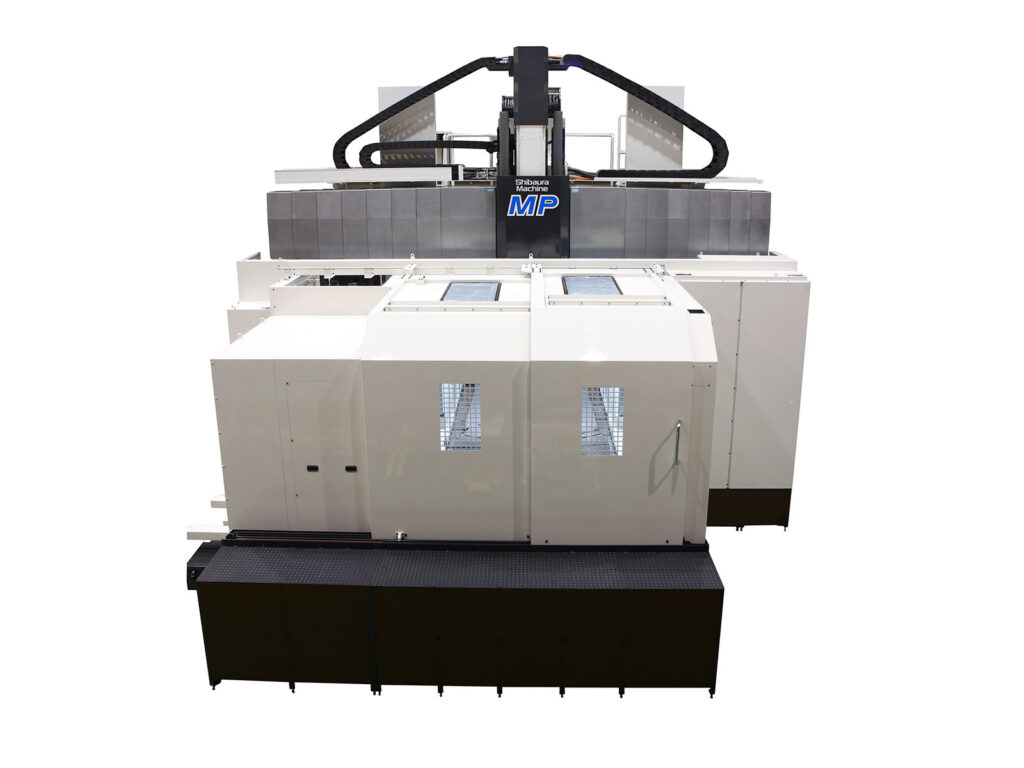

Heavy-duty Double Column Machine

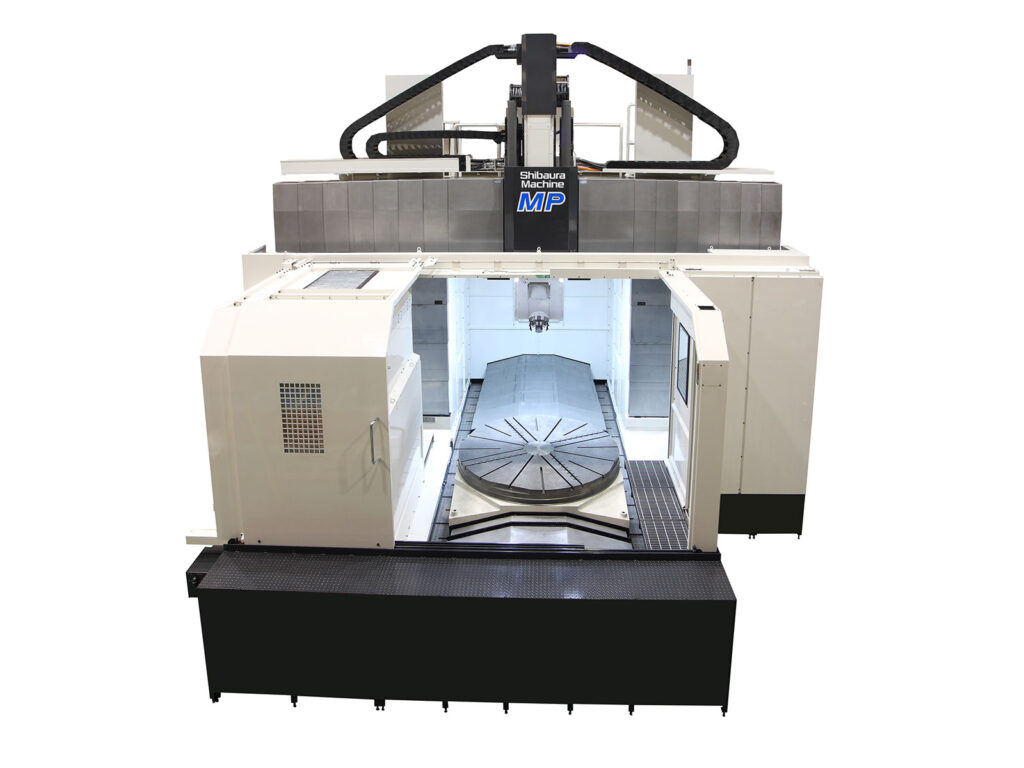

One of Shibaura’s most significant and versatile machines is the MP-2620(U) bridge-type turn/mill centre. This combination of a Ø2M rotary table and a 5-axis spindle head provides full turning capability together with machining of internal and external features on complex components.
This presents an ideal solution for manufacturers, giving them the capability of turning and milling medium to large components on one machine instead of two or more.
The ability to rough and finish parts on one machine maintains greater accuracy between faces and features and also saves time and money by allowing production to be at its most profitable. The additional saving on valuable floor space makes the MP-2620(U) a valuable investment.
Additional Information
The cast iron structure, twin drives on the X, Y & Z axes, 64kW live spindle motor and 10 ton workpiece load makes the MP-2620(U) ideal for hard metal machining in industries like aerospace, oil & gas and power generation.
The PC HMI control includes remote maintenance monitoring, tool tip control for 5-axis work, three-dimensional interference check, vibration monitoring and a large colour display for its many powerful features.
Download the MP-(U)Series brochure for further details or contact our technical team.
