Key Details
Brand:
Shibaura Machine
Product:
TSS Series
Machine Type:
Vertical Borer & Turning Mill
Automation:
Automation Compatible
Specification
Table diameter
⌀ 2,000 mm > ⌀ 3,000 mm
Maximum swing
⌀ 4,000 mm > ⌀ 5,500 mm
Maximum cutting height
(from table top to tool holder under face)
1,800 mm > 2,600 mm
Maximum load on table
20,000 kg
X-axis stroke
1,750 mm > 2,150 mm
Z-axis stroke
1,000 mm > 1,500 mm
Product Video
Powerful & Versatile Machining

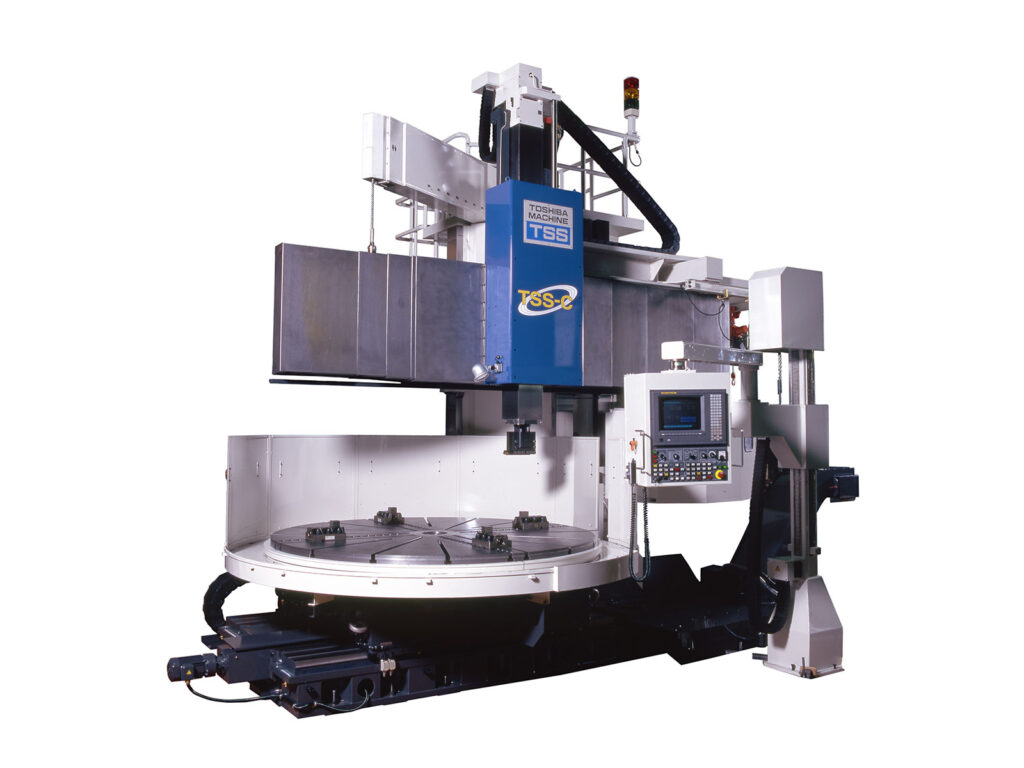

The TSS-20/40C(S), TSS-30/55C(S) and TSS-40/67C(S) are single column vertical turning lathes. They have the additional benefit of a movable X-axis carriage enabling the machine to process components nearly twice the diameter of the rotary table.
The single radial elevating crossrail on which the ram carrier is mounted uses a patented automatic compensation system to maintain straightness. A live spindle can be provided for boring, drilling and tapping operations.
Additional Information
Shibaura Machine have a reputation for manufacturing powerful, reliable machines. This longevity is further enhanced by the high residual value of Shibaura machines, providing the user with a valuable asset.
Download the TSS Series brochure for further details or contact our technical team.
