Key Details
Brand:
Shibaura Machine
Product:
TUE Series
Machine Type:
Vertical Borer & Turning Mill
Automation:
Automation Compatible
Specification
Table diameter
⌀ 1,016 mm > 2,000 mm
Maximum swing
⌀ 1,200 mm > ⌀ 2,400 mm
Maximum height
(from table top to bottom)
1,055 mm > 1,720 mm
Maximum cutting diameter
⌀ 1,200 mm > ⌀ 2,400 mm
X-axis stroke
750 mm > 1,350 mm
Z-axis stroke
800 mm > 900 mm
Product Video
Powerful & Versatile Machining

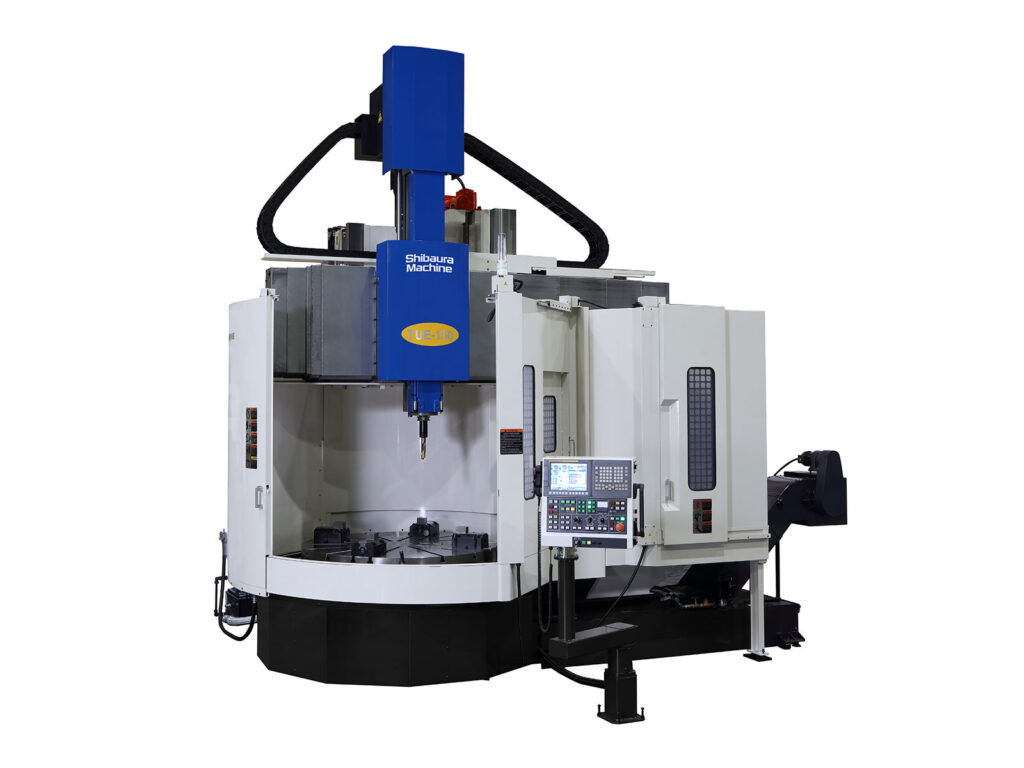

TUE-150(S) and TUE-200(S) are advanced machines efficiently handling complex tasks and optimises space with their vertical design, making it invaluable in any workshop. The live spindle feature boosts machine performance by enabling more complex tasks. This means the machine can handle advanced operations, making it more efficient and versatile.

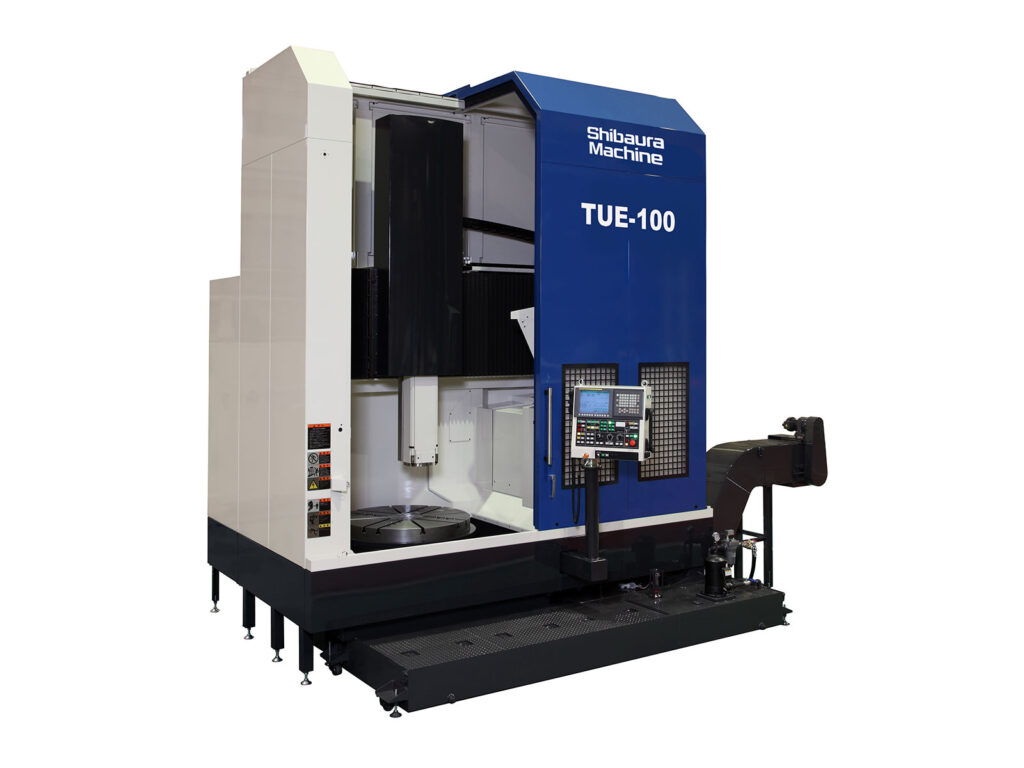

The smallest machine within the TUE-Series is the TUE-100(S). For a machine with a Ø1M table, the turning performance of the TUE-100 is exceptional. The 45 kW drive motor provides a turning speed of 600 rpm and 9,800 N.m of torque.
The series includes the following machines: TUE-100(S), TUE-150(S) and TUE-200(S).
Additional Information
Shibaura Machine have a reputation for manufacturing powerful, reliable machines and so, unsurprisingly, there are machines in the U.K. still in production after 30 years. This longevity is further enhanced by the high residual value of Shibaura machines, providing the user with a valuable asset.
In particular the vertical boring and turning machines can be found manufacturing large components around the U.K. in various sectors such as aerospace, power generation and automotive.
Download the TUE Series brochure for further details or contact our technical team.
