Key Details
Brand:
Shibaura Machine
Product:
UVM Series
Machine Type:
5-axis, High Precision Vertical Machining Centre
Automation:
Automation Compatible
Specification
X-axis stroke
500 mm > 810 mm
Y-axis stroke
450 mm > 800 mm
Z-axis stroke
200 mm > 350 mm
Table size
450 mm x 450 mm /
⌀ 500 mm
Table loading capacity
100 kg > 200 kg
Spindle speed
60,000 rpm
Product Video
Nanometre Accuracy & Repeatability

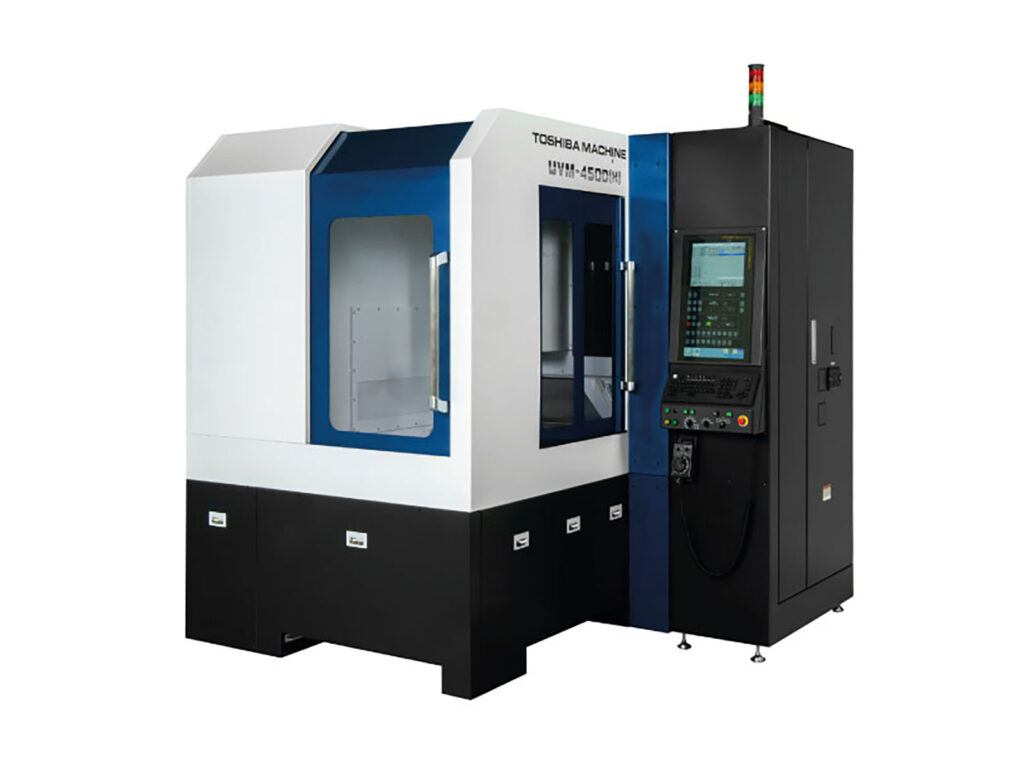

The UVM range consists of two vertical machining centres, the UVM-450D(H) and UVM-700E(5AD).
These machines not only offer manufacturers high spindle speeds up to 60,000 rpm using air-bearing spindles but exceptional accuracy using linear motor drives to a resolution of 0.01µm.

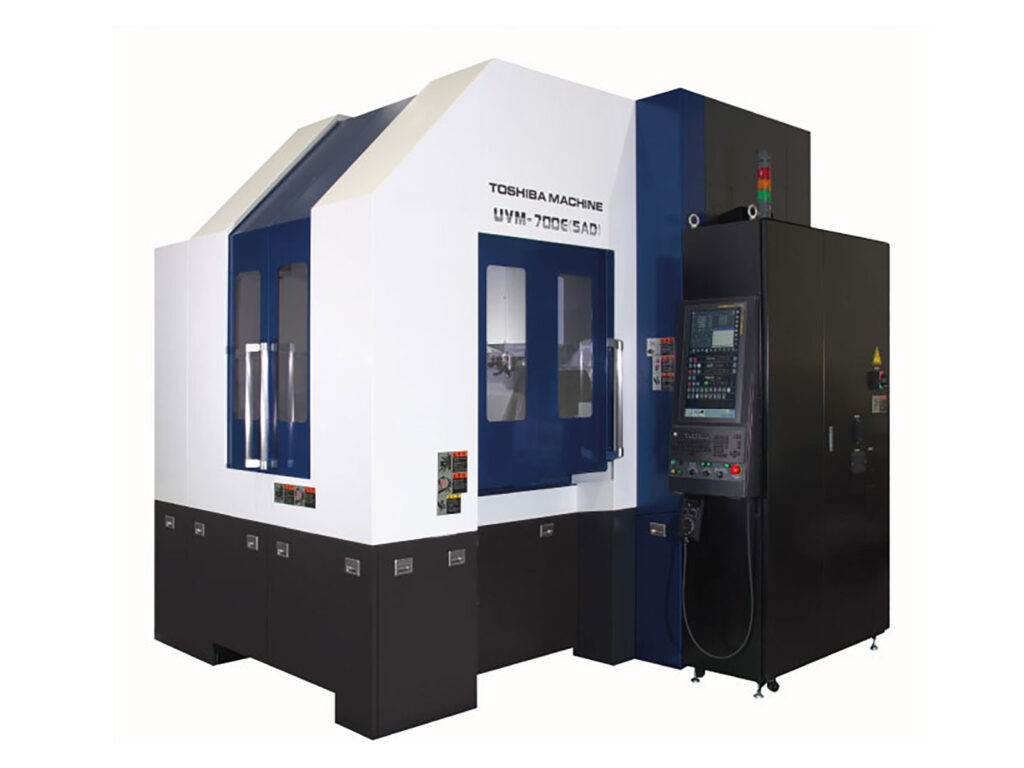

The UVM-700E(5AD) full 5-axis machining centre offers a large load capacity of 200kg and is different from other types of similar machines by combining a tilting head with a full rotary table.
Additional Information
This machine demonstrates ultra-precision machining and focuses on the next generation of products such as smartphone and computer manufacturing, as well as critical components for cameras, lenses and medical applications.
Industries with a strong presence in mirror-finishing optics and precision mould manufacturing in hardened steel will also draw benefits from the UVM range.
Download the UVM Series brochure for further details or contact our technical team.
