Key Details
Brand:
Takumi
Product:
UC Series
Machine Type:
5-axis
Automation:
Automation Compatible
Specification
X-axis travel
360 mm > 440 mm
Y-axis travel
520 mm > 610 mm
Z-axis travel
520 mm > 610 mm
Rotary table dimension
⌀ 250 mm > ⌀ 320 mm
Spindle speed
3,000 rpm > 6,000 rpm
Spindle taper
BBT40
Product Video

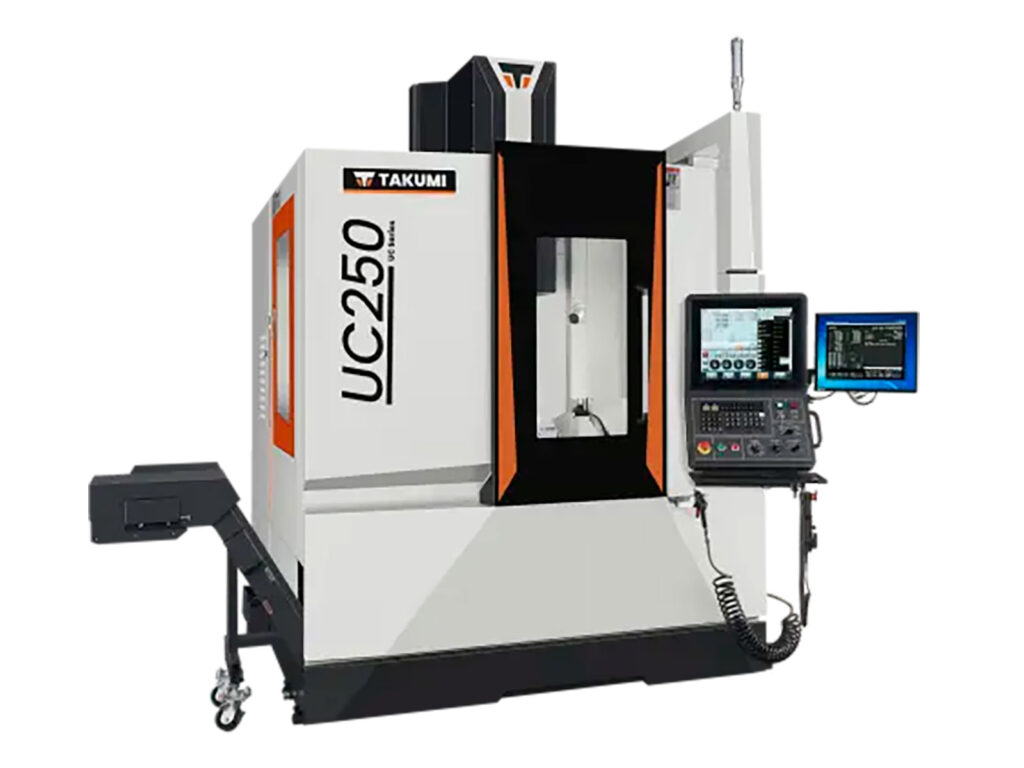

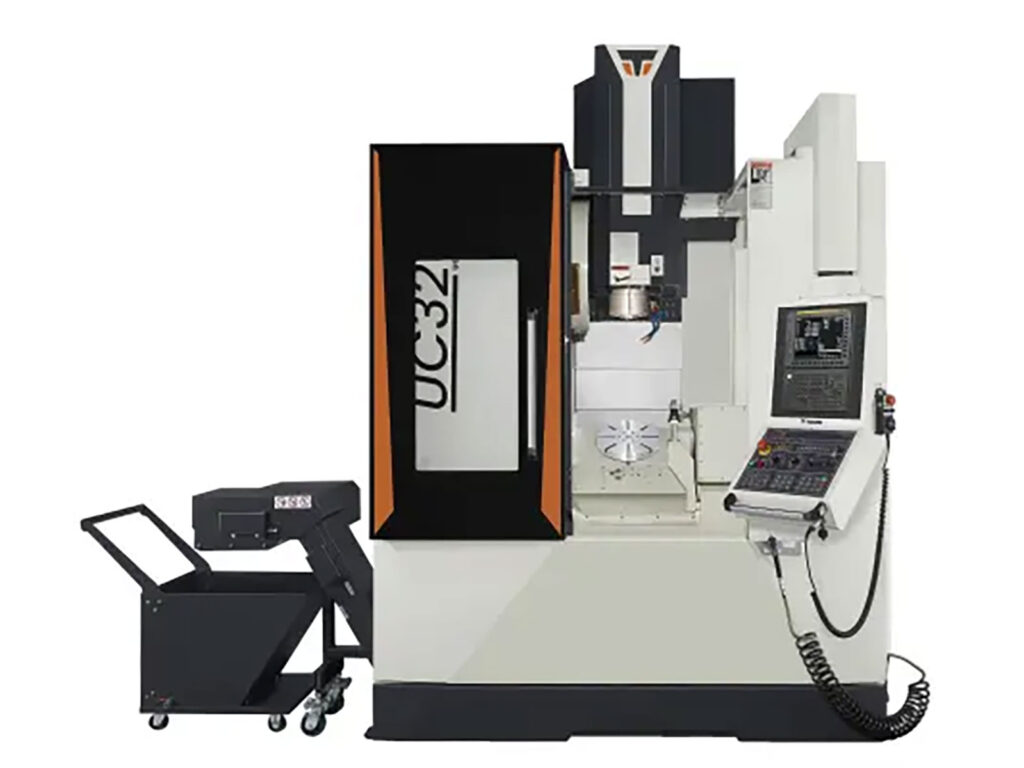

UC Series
Takumi’s UC Series is designed for high precision finishing of small and medium sized components in sectors such as dynamic die and mould, automotive, aerospace, and medical applications.
The UC series is small but powerful. It can handle workpieces up to 430 mm long and 200 kg in weight. This makes it perfect for small spaces while still being incredibly versatile.
The UC Series includes the following machines: UC250x and UC320x.
Additional Information
Takumi have been manufacturing high precision machine tools for over 30 years and, having established themselves in Asia, have expanded into Europe and the USA.
Their product range includes vertical machining centres, 5-axis machines and bridge type machining centres, machines being available in many configurations to suit individual requirements and budgets.
For more details on the UC Series lathes download the brochure or contact a team member via the Contact Us page.
