Key Details
Brand:
Takumi
Product:
V/VC Series
Machine Type:
Vertical Machining Centre
Automation:
Automation Compatible
Specification
X-axis travel
1,000 mm > 1,800 mm (V Series)
860 mm > 1,270 mm (VC Series)
Y-axis travel
660 mm > 850 mm (V Series)
520 mm > 660 mm (VC Series)
Z-axis travel
610 mm > 750 mm (V Series)
610 mm (VC Series)
Table dimension
1,050 mm x 650 mm >
1,900 x 850 mm (V Series)
1,000 mm x 520 mm >
1,500 x 660 mm (VC Series)
Spindle speed
8,000 rpm > 12,000 rpm (V Series)
15,000 rpm (VC Series)
Product Video
V/VC Series
The V Series (box way) can handle a wide range of workpieces for all kind of applications and they’re designed for heavy duty cutting capability and powerful cutting performance.
The VC Series has four models with options for linear or solid box guideways based on application needs. They are highly specified and cost-effective, with a range of equipment available, including ATC, probing, index attachments, ball screw cooling, scale feedback, high-pressure coolant, and various CNC controls.

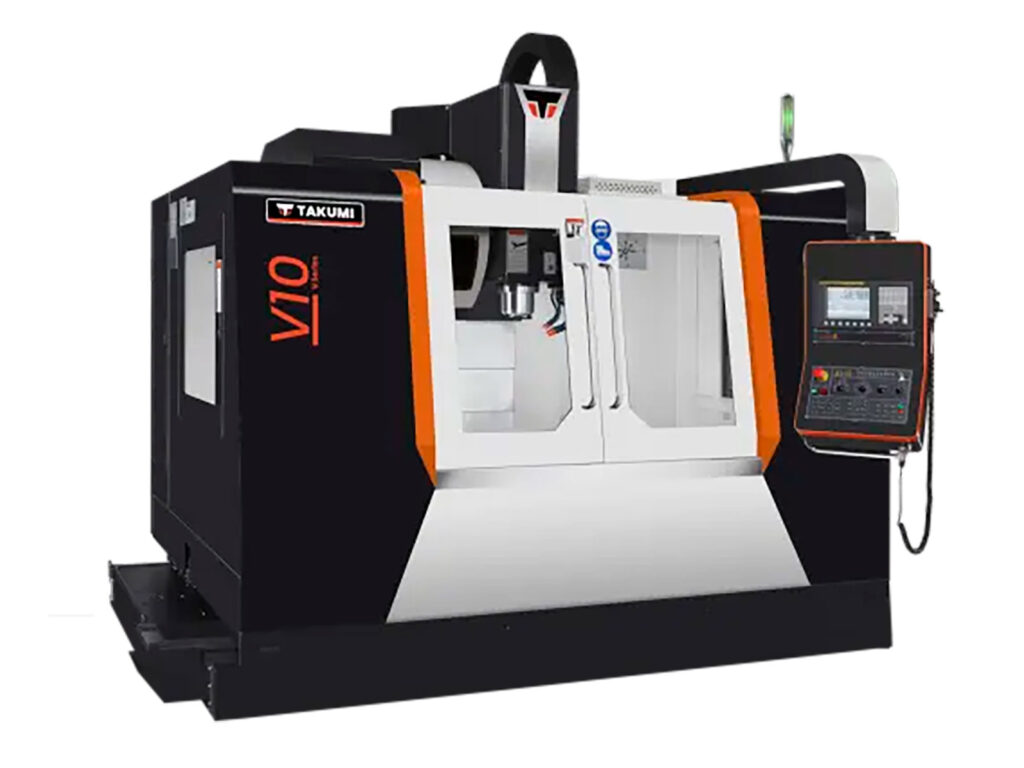

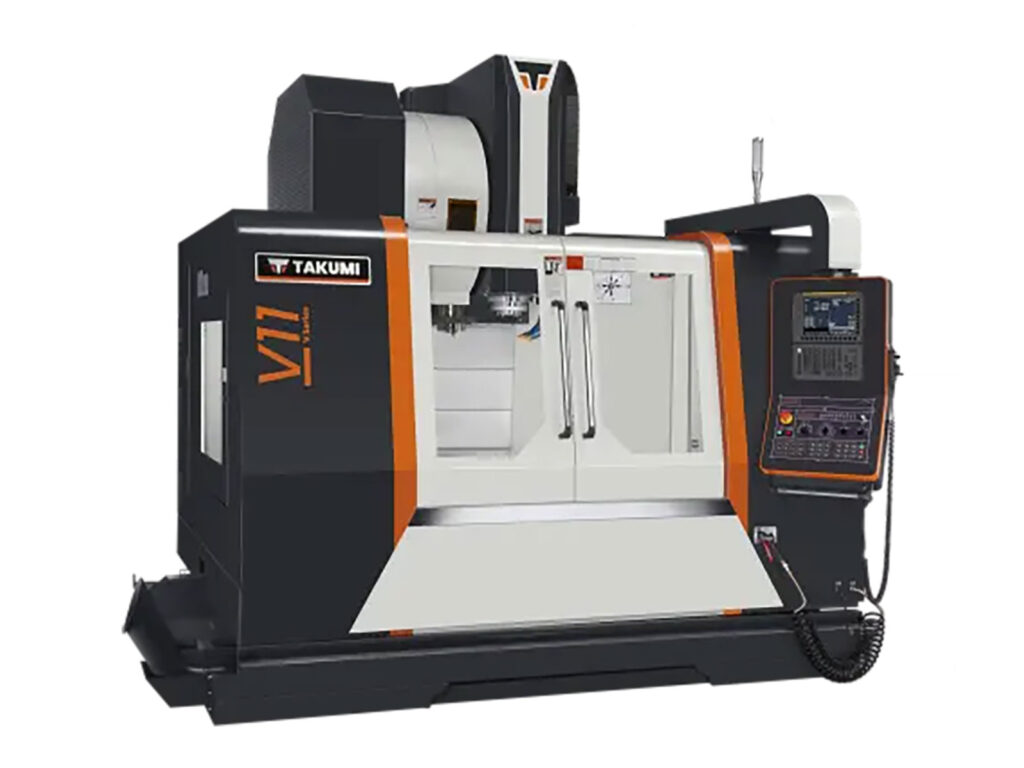

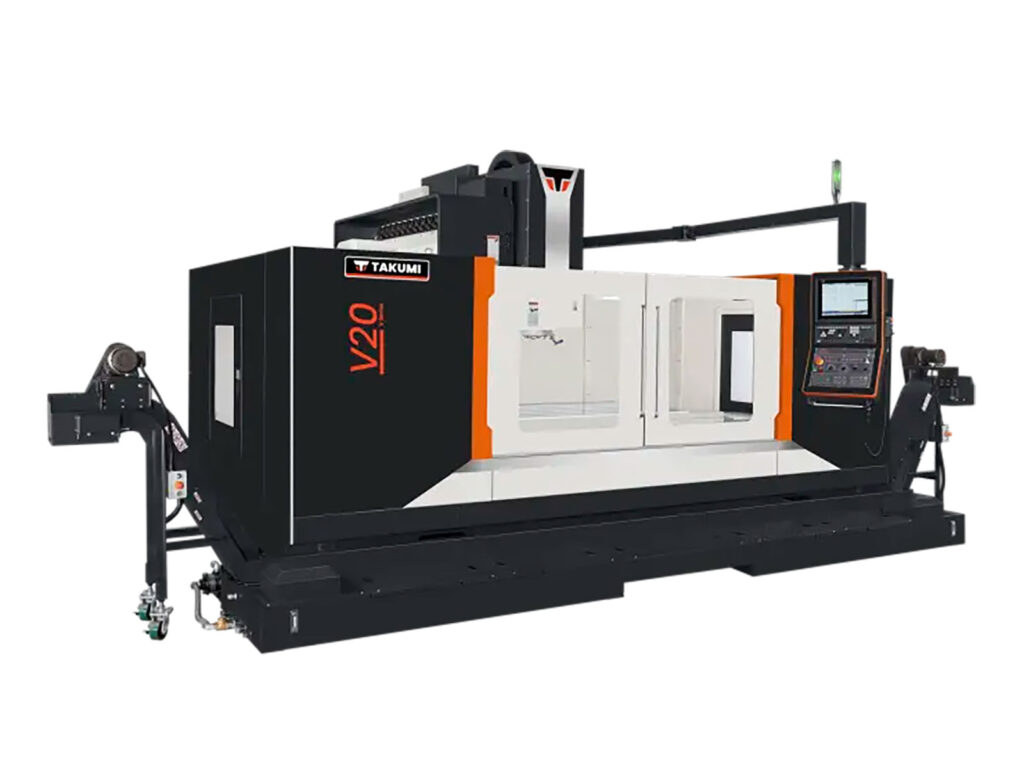

The V Series (box way) includes the following machines: V10, V11, V12, V15, V18, V20, V22 and V32.

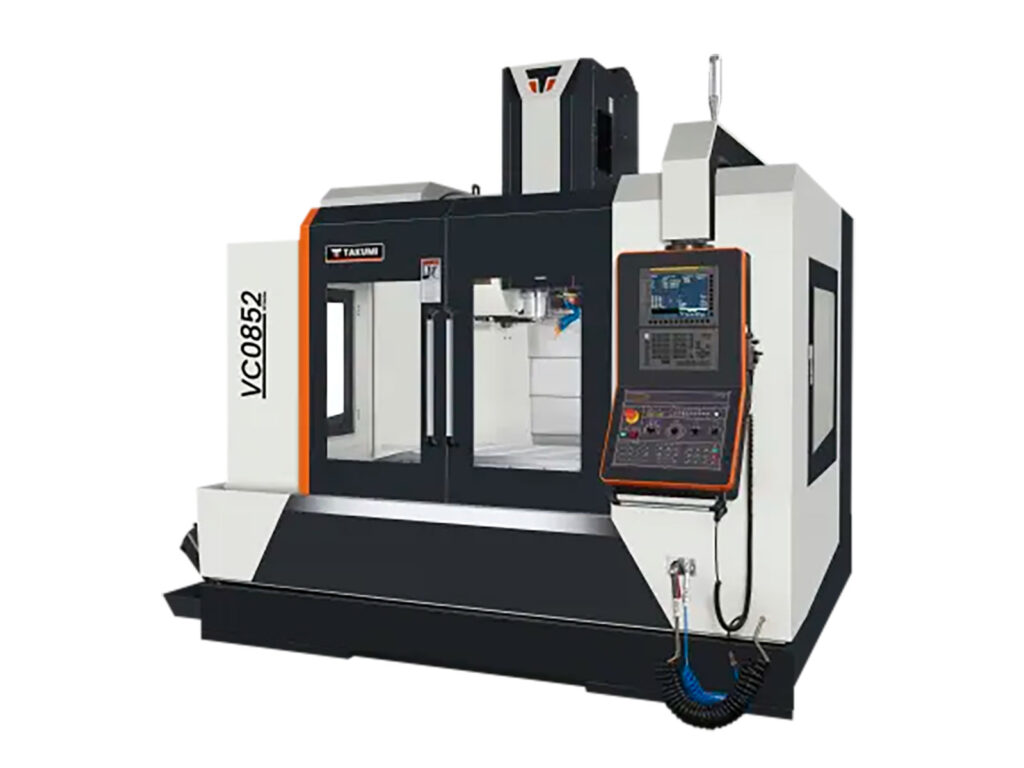

The VC Series includes the following machines: VC0852, VC1000, VC1052 and VC1200.
Additional Information
Takumi have been manufacturing high precision machine tools for over 30 years and, having established themselves in Asia, have expanded into Europe and the USA.
Their product range includes vertical machining centres, 5-axis machines and bridge type machining centres, machines being available in many configurations to suit individual requirements and budgets.
For more details on the V/VC Series lathes download the brochure or contact a team member via the Contact Us page.
