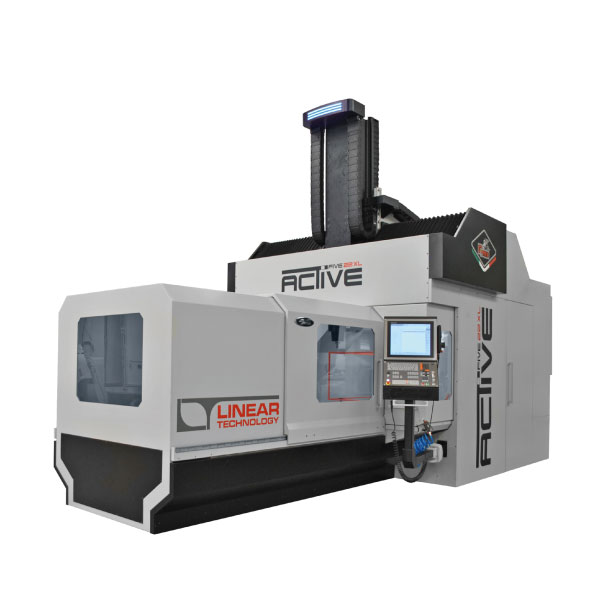

The Active is available in two derivatives - Standard and Linear, the latter achieving 60 M/min, truly impressive for a machine of this size. The maximum table size is 4100 x 1100 mm and capable of carrying a 5000kg load. The cooled and temperature controlled 5 axis head makes the Active highly suitable for continuous machining of mould and die and aerospace components.
Travel (X, Y, Z) > 4M, 2.3M, 1M
Rapid Feed 0 - 30,000mm/min
Spindle Motor 30 Kw 42 - 92 Nm 18,000 - 22,000rpm
Table Length > 3.1M
