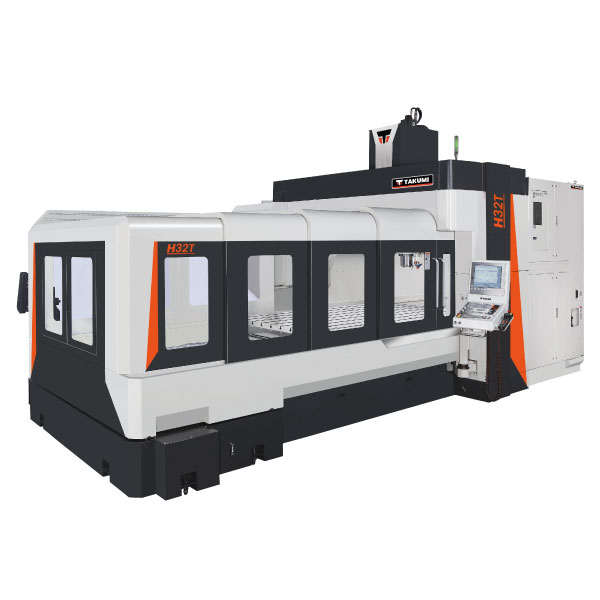

The H Series of high-speed bridge mills comprises of six models. Exceptional rigidity is achieved by 4-6 roller blocks per guideway and the headstocks have been designed shorter and lighter to decrease deflection. The top roof cover has sliding sections for ease of overhead part loading and the H6 has a 30,000rpm spindle for high speed machining using small diameter tools.
Travel (X, Y, Z) H32S = 3200 x 1600 x 800 mm H32T = 3200 x 2200 x 800 mm
Table Size H32S = 3320 x 1600 mm H32T = 3320 x 2100 mm
Table Capacity 8500 kg
Spindle 10,000 rpm / BBT50
ATC 20
Rapid Traverse Rate (X, Y, Z) H32S = 16 / 20 / 20 m/min H32T = 16 / 16 / 20 m/min
Weight > 37000 kg
